Service information
272/293 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • 802-9081.9
①

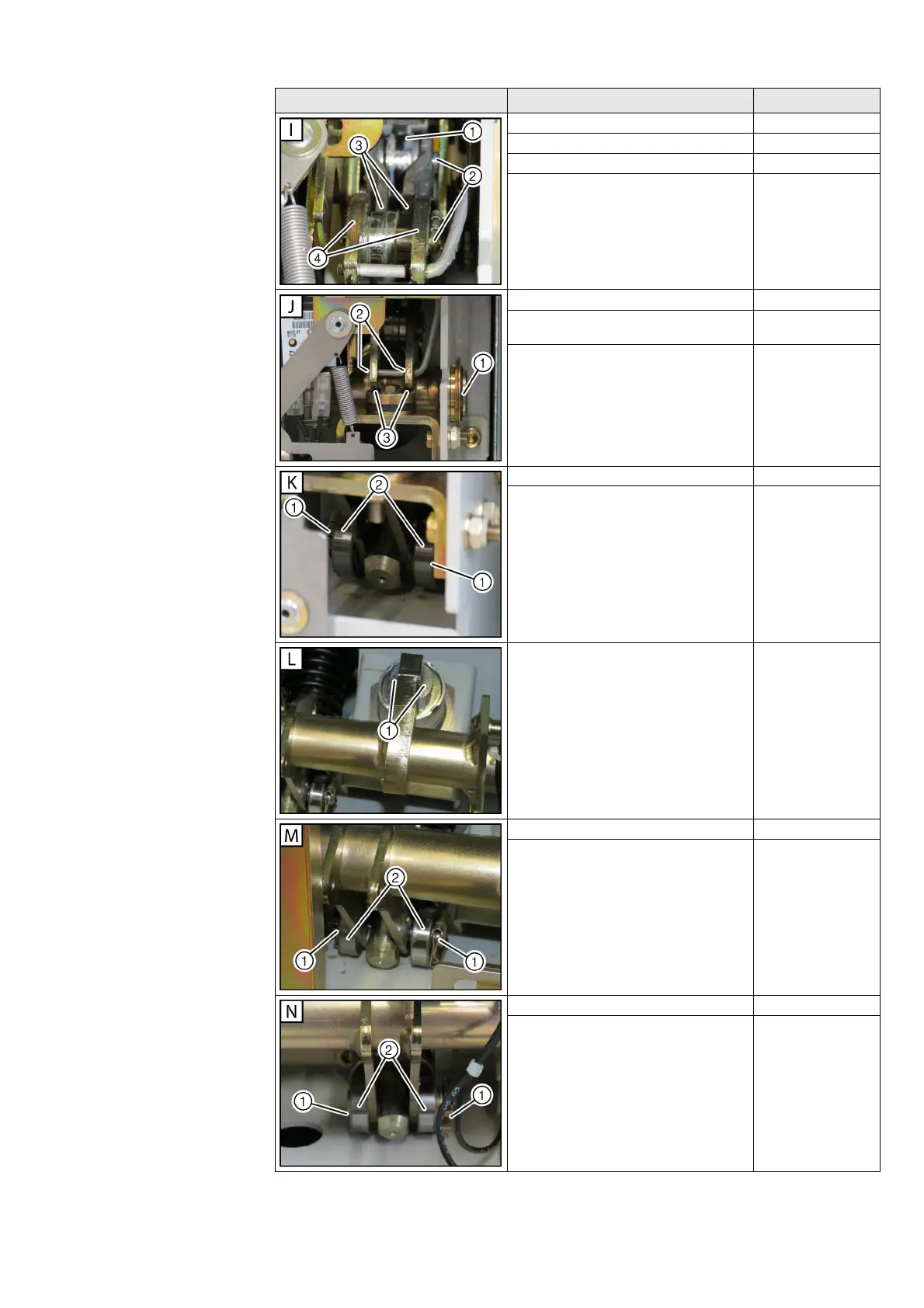

Apply grease to the roller or latch. Isoflex Topas L32
②
Oil the stud connections. Shell Tellus Oil S2M32
③
Apply grease to the opening latch. Isoflex Topas L32
④
Apply grease to the curve of the opening
latch.
Isoflex Topas L32
①
Oil the bearing for the operating shaft. Shell Tellus Oil S2M32
②
Apply grease to the deflection of the
auxiliary switch.
Isoflex Topas L32
③
Apply grease to the end stop. Isoflex Topas L32
①
Oil the stud connection. Shell Tellus Oil S2M32
②
Apply grease to the bearing of the
contact pressure spring.
Isoflex Topas L32
①
Apply grease to the dashpot. Isoflex Topas L32
①
Oil the stud connection. Shell Tellus Oil S2M32
②
Apply grease to the bearing of the
contact pressure spring.
Isoflex Topas L32
①
Oil the stud connection. Shell Tellus Oil S2M32
②
Apply grease to the bearing of the
contact pressure spring.
Isoflex Topas L32
