802-9081.9 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • Revision 11 87/293
Installation
Resistance against shock, vibration and earthquakes (option)
For fastening against shock, vibration and earthquakes, the panels must be equipped with
additional floor bracings. The panel and the floor bracings are bolted together onto the
foundation rails.
On panels with a panel width of 900 mm, an additional bracing bar must be mounted.

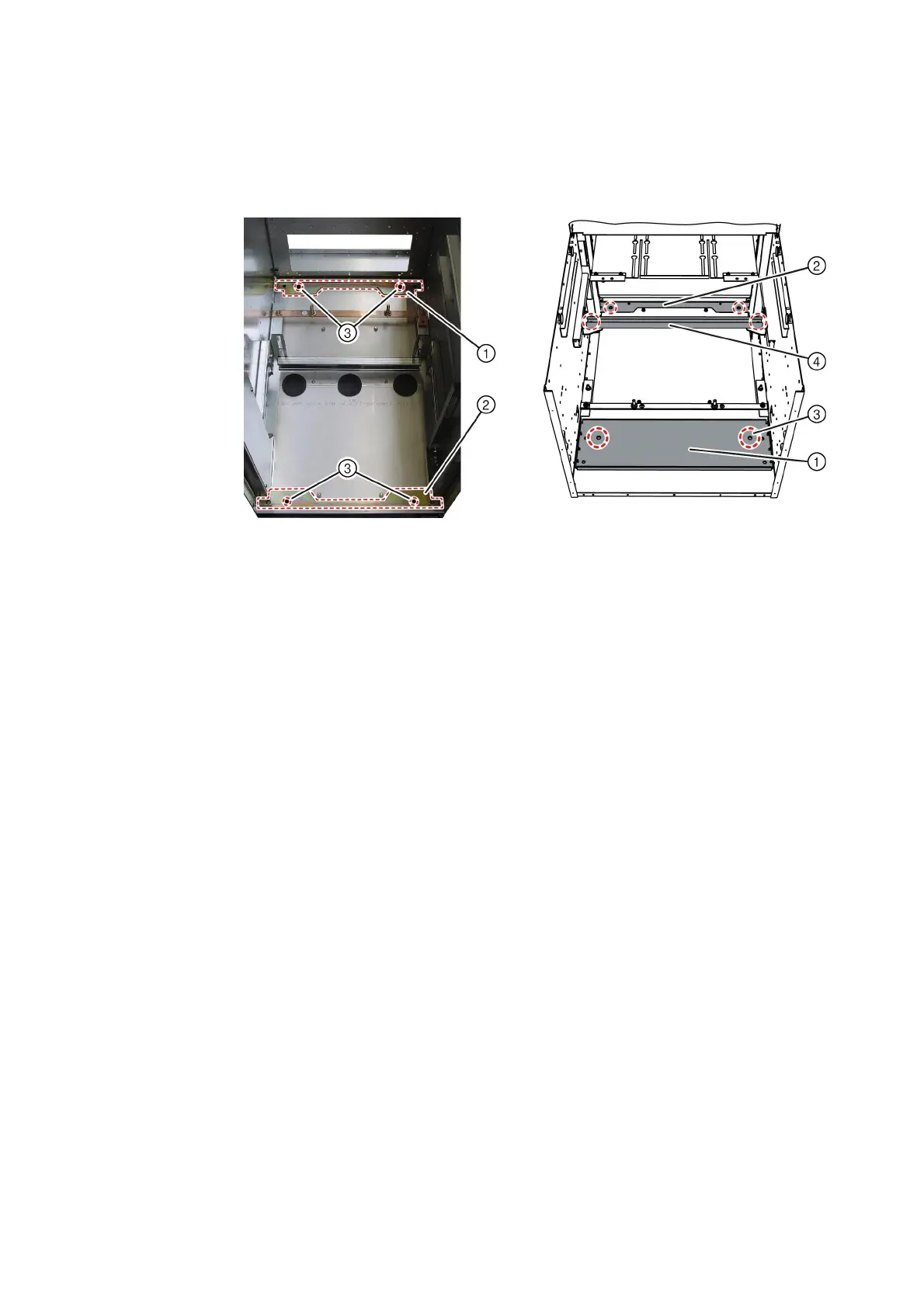

Fig. 53: Floor bracings for panel with a
panel width of 600 mm (view from
the front)
Fig. 54: Floor bracings for panel with a panel
width of 900 mm (view from the
rear)
①
Floor bracing at the rear
③
Fixing point
②
Floor bracing at the front
④
Bracing bar (only panel width of 900 mm)
