Installation
88/293 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • 802-9081.9

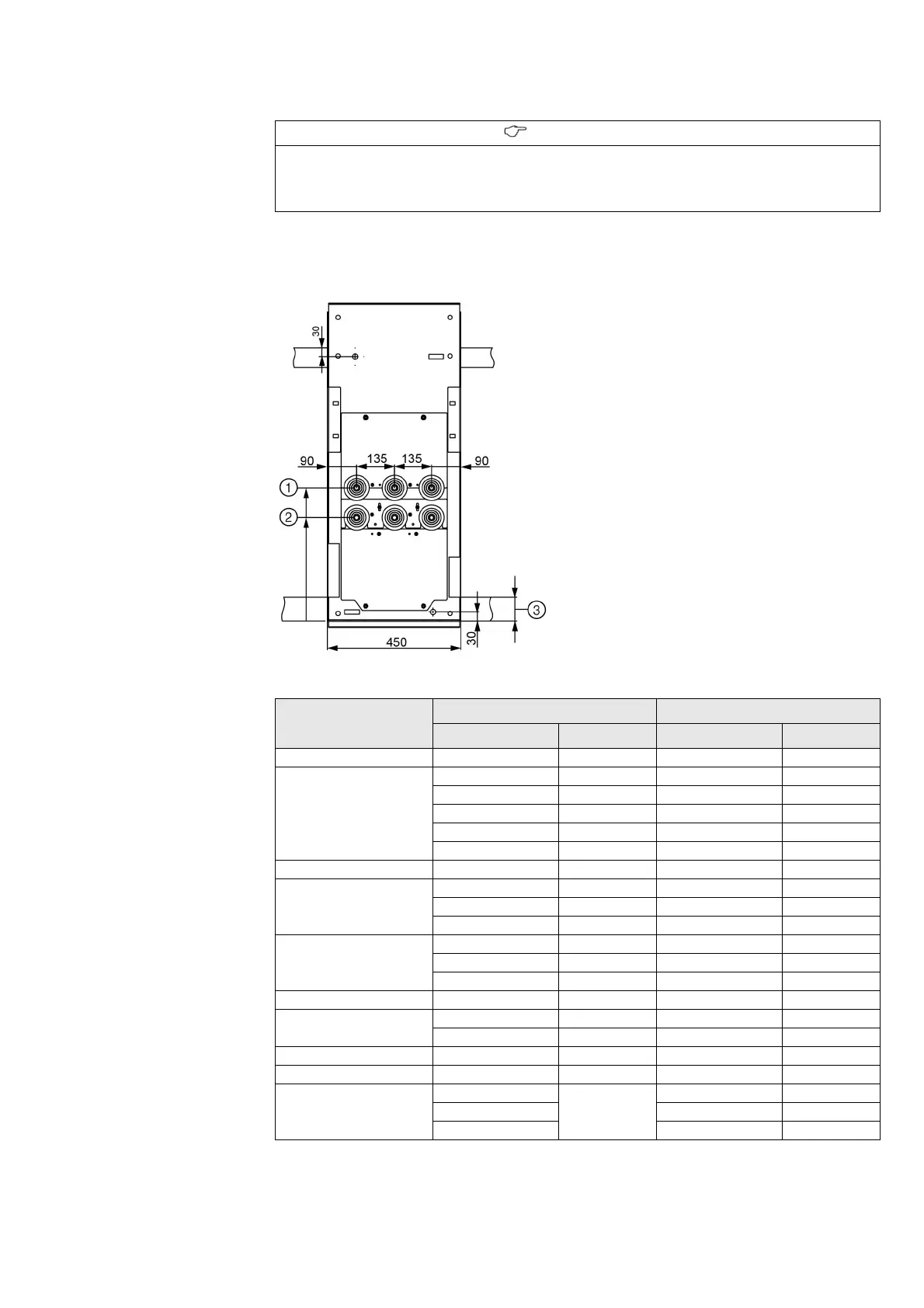

Core drillings (incl. new plug systems)
Core drillings
• Circuit-breaker panel (panel width 450 mm, 630 A, 800 A)
Conductor distances
INFORMATION
For proper installation of the cable plugs, the following must be observed:
➭ Observe the specifications of the cable manufacturers.
➭ Drilling diameters depend on the cable cross-section.
①
1st cable
②
2nd cable
③
50...80 mm
Make 1st cable 2nd cable
Plug type Distance [mm] Plug type Distance [mm]
3M 93-EE 705-6 383 93-EE 718-6 275
Nexans Euromold (K)400TB/G 383 - - - - - -
(K)440TB/G 383 - - - - - -
(K)430TB/G 383 (K)300PB/G 278
(K)480TB/G 383 (K)800PB/G 273
(K)484TB/G 383 (K)804PB/G 273
Südkabel SET 12/24 383 SEHDK 13.1/23.1 273
nkt cables CB xx-630 383 CB xx-630 283
CB 24-1250-2 383 CB 24-1250-2 283
CB 36-630(1250) 383 CB 36-630(1250) 273
Tyco Electronics Raychem RSTI-L56xx 383 RSTI-CC-L56xx 283
RSTI-58xx 383 RSTI-CC-58xx 283
RSTI-x95x 383 - - - - - -
GCA CJBxx-630 383 CJBKxx-630 268
ABB Kabeldon CSE-A xx630-xx 383 - - - - - -
CSE-A xx630-03 383 - - - - - -
Cellpack CTS 630A 24kV 383 CTKS 630A 24kV 268
Ample AQT3-15/630 383 AHT3-15/630 283
Solid-insulated bar Moser-Glaser
372
- - - - - -
Preissinger - - - - - -
Ritz - - - - - -
