Installation
92/293 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • 802-9081.9

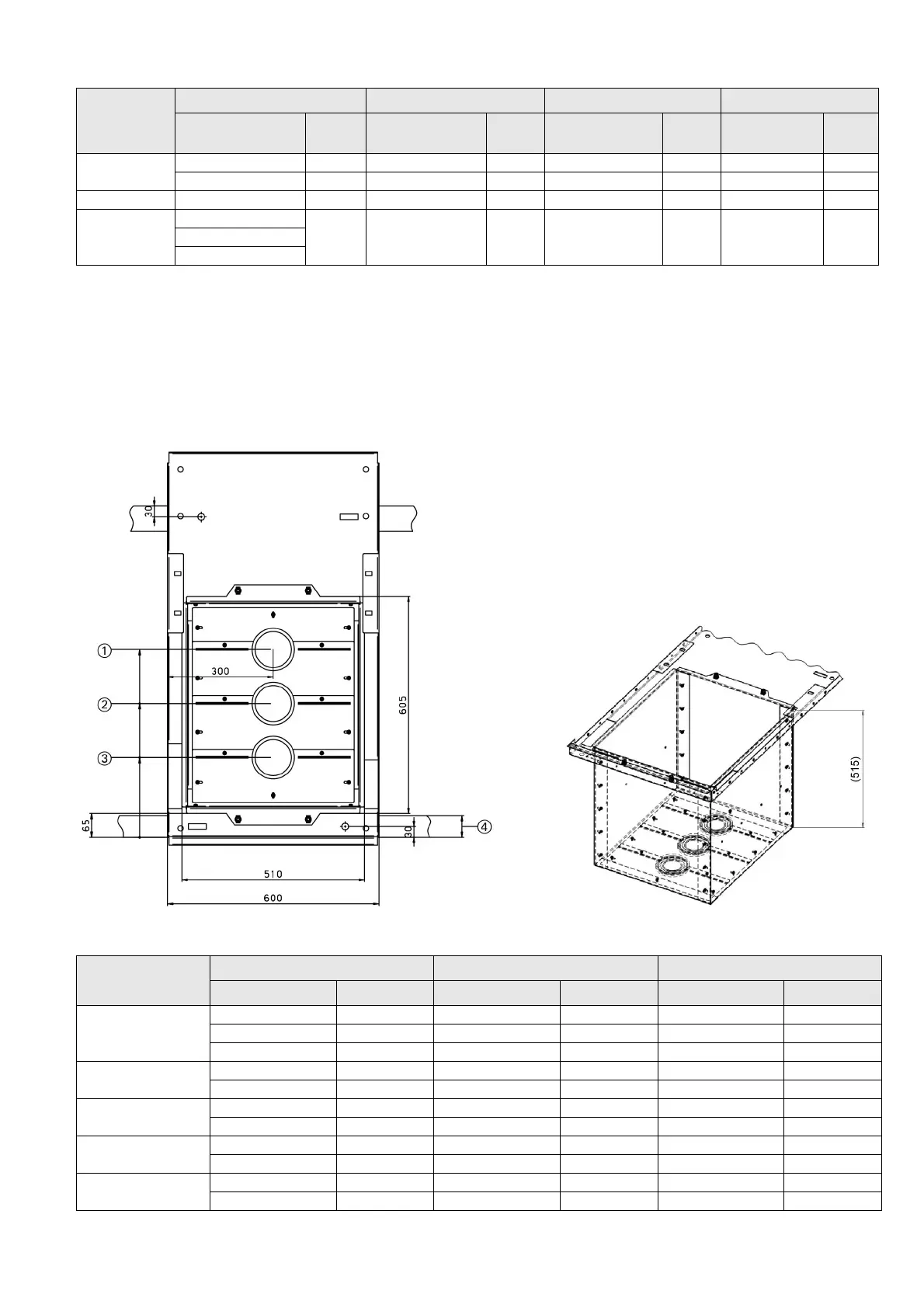

Core drillings
• Circuit-breaker panel (630 A, 1000 A, 1250 A)
• Disconnector panel (1000 A, 1250 A)
• Switch-disconnector panel
• Vacuum contactor panel
• Ring-main panel (630 A)
Conductor distances
Cellpack CTS 630A 24kV 595 CTS 630A 24kV 388 - - - - - - - - - - - -
CTS 630A 24kV 595 CTKS 630A 24kV 480 CTKS 630A 24kV 365 - - - - - -
Ample AQT3-15/630 595 AHT3-15/630 495 - - - - - - - - - - - -
Solid-insulated
bar
Moser-Glaser 584 - - - - - - - - - - - - - - - - - -
Preissinger
Ritz
Make 1st cable 2nd cable 3rd cable 4th cable
Plug type Distance
[mm]
Plug type Distance
[mm]
Plug type Distance
[mm]
Plug type Distance
[mm]
①
1st cable
②
2nd cable
③
3rd cable
④
50...80 mm
Deep floor cover:
Make 1st cable 2nd cable 3rd cable
Plug type Distance [mm] Plug type Distance [mm] Plug type Distance [mm]
3M 93-EE 705-6 521 93-EE 718-6 371 - - - - - -
93-EE 705-6 521 93-EE 705-6 371 - - - - - -
93-EE 715-6 521 93-EE 715-6 371 - - - - - -
Nexans Euromold (K)400TB/G 521 (K)400TB/G 371 - - - - - -
(K)430TB-630 521 (K)300PB-630 371 (K)300PB-630 221
Südkabel SET 12/24 521 SEHDK 13.1/23.1 371 - - - - - -
SET 12/24 521 SET 12/24 371 - - - - - -
nkt cables CBxx-630 521 CBxx-630 371 - - - - - -
CBxx-630 521 CCxx-630 371 CCxx-630 221
Tyco Electronics
Raychem
RSTI L56xx 521 RSTI -CC-L56xx 371 RSTI -CC-L56xx 221
RSTI L58xx 521 RSTI -CC-58xx 371 RSTI -CC-58xx 221
