802-9081.9 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • Revision 11 91/293
Installation
Core drillings
• Circuit-breaker panel (1250 A)
• Disconnector panel (1250 A)

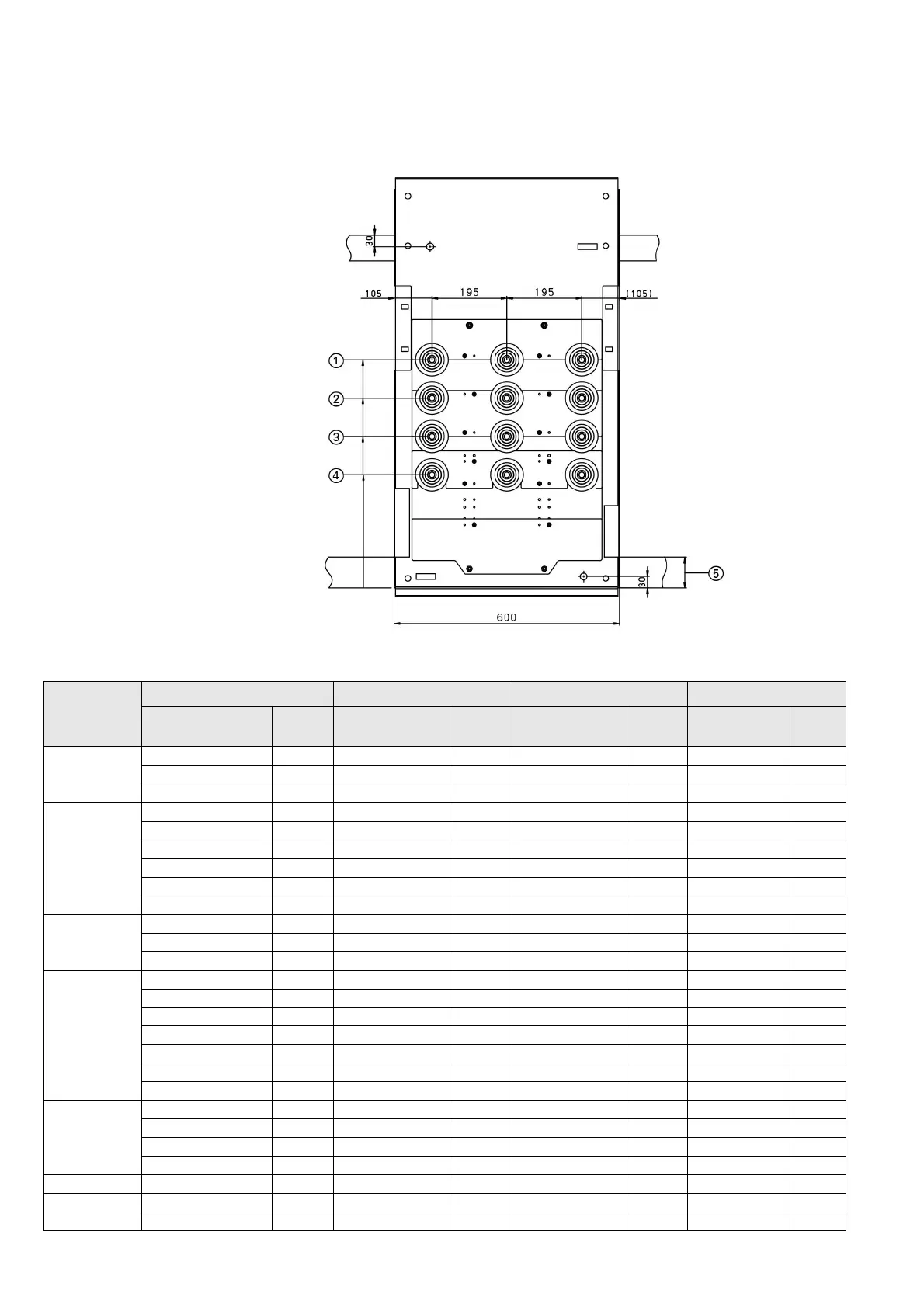

Conductor distances
①
1st cable
②
2nd cable
③
3rd cable
④
4th cable
⑤
50...80 mm
Make 1st cable 2nd cable 3rd cable 4th cable
Plug type Distance
[mm]
Plug type Distance
[mm]
Plug type Distance
[mm]
Plug type Distance
[mm]
3M 93-EE 705-6 595 93-EE 718-6 485 - - - - - - - - - - - -
93-EE 705-6 595 93-EE 705-6 425 - - - - - - - - - - - -
93-EE 715-6 595 93-EE 715-6 425 - - - - - - - - - - - -
Nexans
Euromold
(K)400TB/G 595 (K)400TB/G 350 (K)400TB/G 105 - - - - - -
(K)440TB/G 595 (K)440TB/G 350 (K)440TB/G 105 - - - - - -
(K)430TB/G 595 (K)300PB/G 490 (K)300PB/G 385 (K)300PB/G 280
(K)480TB/G 595 (K)800PB/G 490 (K)800PB/G 385 (K)800PB/G 280
(K)484TB/G 595 (K)804PB/G 485 (K)804PB/G 375 (K)804PB/G 265
(K)489TB/G 595 (K)809PB/G 485 (K)809PG/G 375 (K)809PB/G 265
Südkabel SET 12/24 595 SEHDK 13.1/23.1 485 - - - - - - - - - - - -
SET 12/24 595 SET 12/24 415 - - - - - - - - - - - -
SEHDT 13/23 595 SEHDT 13/23 350 - - - - - - - - - - - -
nkt cables CB xx-630 595 CB xx-630 415 CB xx-630 235 - - - - - -
CB xx-630 595 CC xx-630 495 CC xx-630 395 - - - - - -
CB 24-1250-2 595 CB 24-1250-2 415 CB 24-1250-0 235 - - - - - -
CB 24-1250-2 595 CB 24-1250-2 495 CC 24-1250-2 395 CC 24-1250-2 295
CB 36-630 (1250) 595 CB 36-630 (1250) 415 CB 36-630 (1250) 235 - - - - - -
CB 36-630 (1250) 595 CC 36-630 (1250) 485 CC 36-630 (1250) 375 - - - - - -
CB 42-1250-3 595 CC 42-2500-3 468 CC 42-2500-3 341 CC 42-2500-3 214
Tyco Electronics
Raychem
RSTI-L56xx 595 RSTI -CC-L56xx 495 RSTI -CC-L56xx 395 - - - - - -
RSTI-58xx 595 RSTI -CC-58xx 495 RSTI -CC-58xx 395 RSTI-CC-58xx 295
RSTI-x95x 595 RSTI-CC-x95x 475 RSTI-CC-x95x 355 - - - - - -
RSTI-x6Lxx 595 RSTI -x6Lxx 420 RSTI -x6Lxx 245 - - - - - -
GCAGCA CJBxx-630 595 CJBKxx-630 480 - - - - - - - - - - - -
ABB Kabeldon CSE-A xx630-xx 595 CSE-A xx630-xx 423 - - - - - - - - - - - -
CSE-A xx630-03 595 CSE-A xx630-03 415 - - - - - - - - - - - -
