Modbus Shielding and Grounding

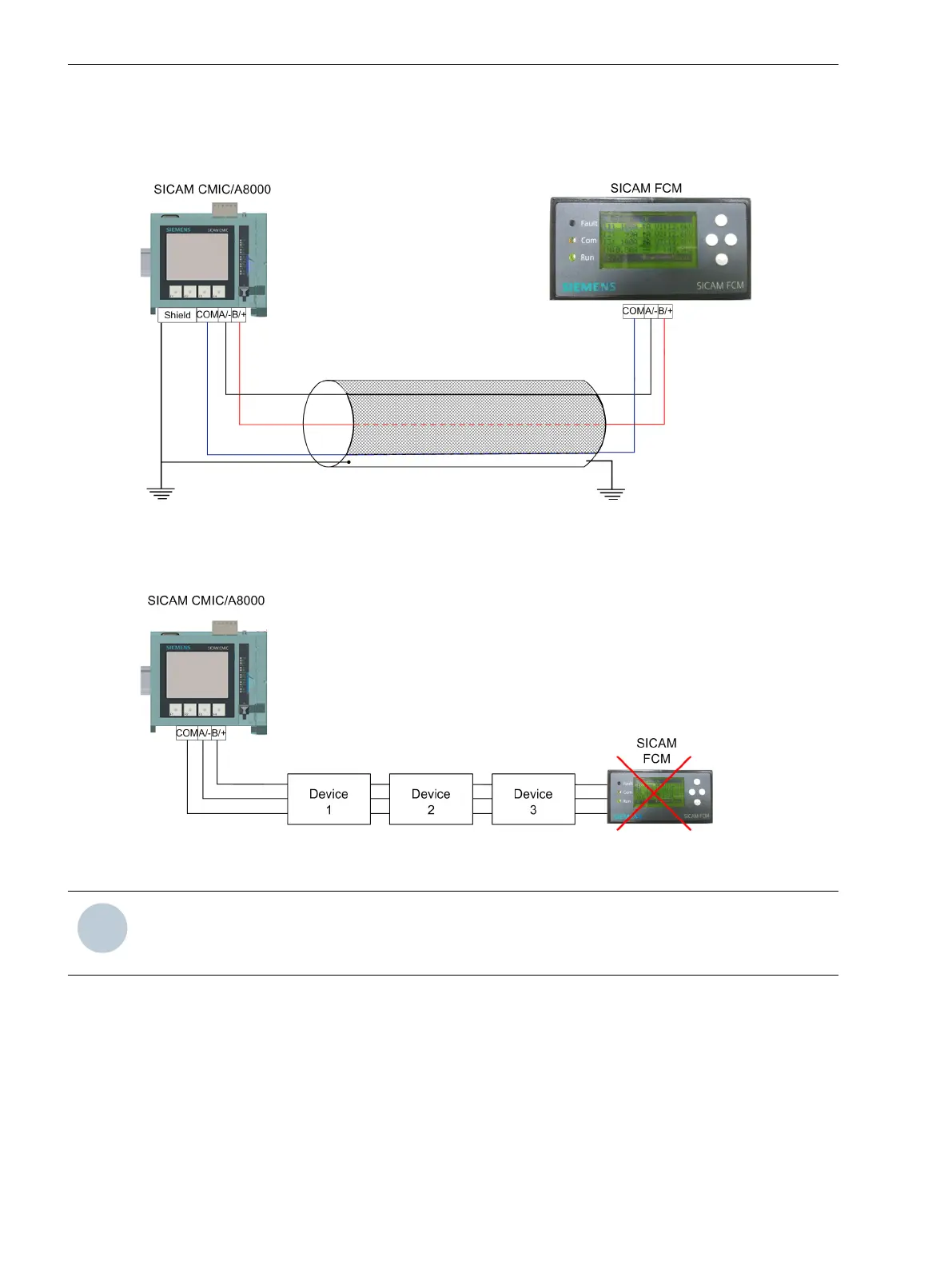

The following figure shows how the Modbus shielding and grounding is made between SICAM CMIC/A8000
and SICAM FCM.
[dw_modbus_shielding_and_grounding, 2, en_US]
Figure 7-15 Modbus Shielding and Grounding Connection
Modbus Termination
[dw_modbus_termination, 2, en_US]
Figure 7-16 Modbus Termination
NOTE
SICAM FCM has no internal Modbus load resistor. If SICAM FCM is located at the end of the Modbus connec-
tion, use an external resistor for Modbus termination.
Connection Diagrams
7.4 Modbus Connection of SICAM FCM with RTU
80 SICAM, Feeder Condition Monitor, Manual
E50417-H8940-C580-A4, Edition 03.2019
