Installation
Sicore II Installation and Commissioning Guide
667/HB/52600/000 Issue 2 Unrestricted
Distance from Camera to Street and is a longer as the licence plate will be at a height above
the road surface.

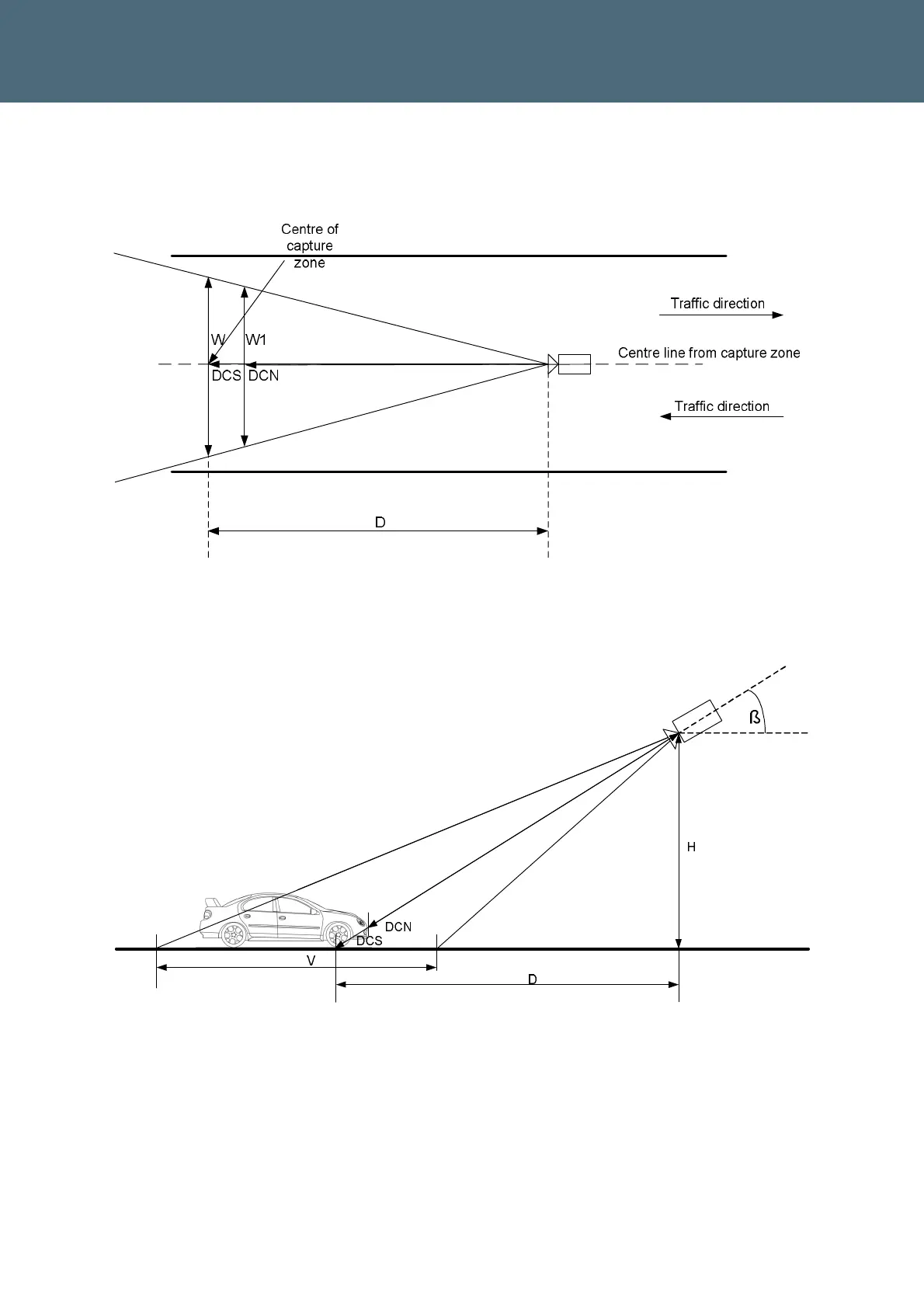

Figure 13 – Sicore II Basic Geometry – Top View – No Skew
Figure 14 – Sicore II Basic Geometry – Side View
In most cases the camera will be mounted on a pole at the side of the road, this introduces
skew, an offset from the camera to the centre of the capture zone. Figure 15 shows this
arrangement with the skew distance (S).
