1-4
ET 200L Distributed I/O Device
EWA-4NEB 780600902-05

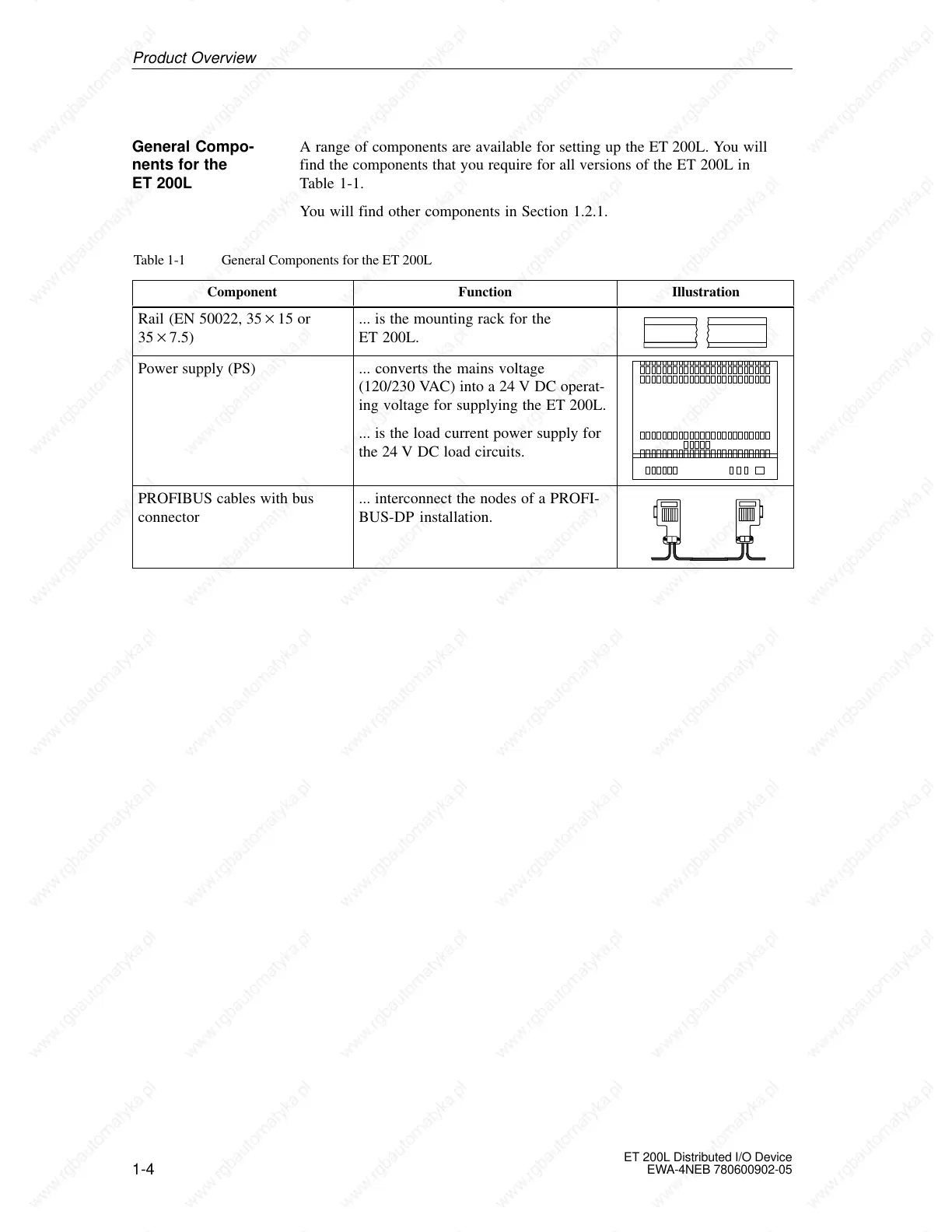

A range of components are available for setting up the ET 200L. You will
find the components that you require for all versions of the ET 200L in
Table 1-1.
You will find other components in Section 1.2.1.
Table 1-1 General Components for the ET 200L
Component
Function Illustration
Rail (EN 50022, 3515 or
357.5)
... is the mounting rack for the
ET 200L.
Power supply (PS) ... converts the mains voltage
(120/230 VAC) into a 24 V DC operat-
ing voltage for supplying the ET 200L.
... is the load current power supply for
the 24 V DC load circuits.
PROFIBUS cables with bus
connector
... interconnect the nodes of a PROFI-
BUS-DP installation.
General Compo-
nents for the
ET 200L
