2-1
ET 200L Distributed I/O Device
EWA-4NEB 780600902-05

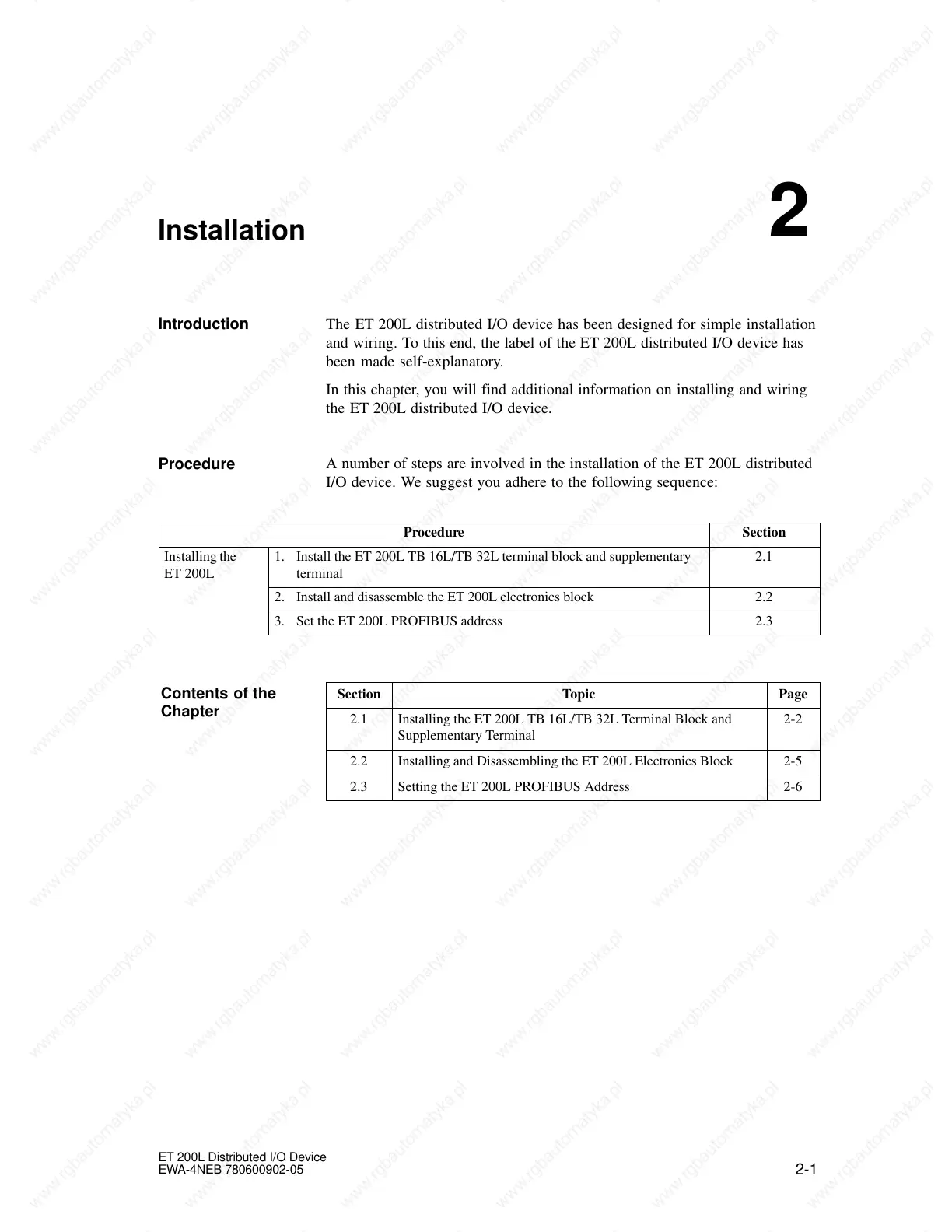

Installation
The ET 200L distributed I/O device has been designed for simple installation
and wiring. To this end, the label of the ET 200L distributed I/O device has
been made self-explanatory.
In this chapter, you will find additional information on installing and wiring
the ET 200L distributed I/O device.
A number of steps are involved in the installation of the ET 200L distributed
I/O device. We suggest you adhere to the following sequence:
Procedure Section
Installing the
ET 200L
1. Install the ET 200L TB 16L/TB 32L terminal block and supplementary
terminal
2.1
2. Install and disassemble the ET 200L electronics block 2.2
3. Set the ET 200L PROFIBUS address 2.3
Section Topic Page
2.1 Installing the ET 200L TB 16L/TB 32L Terminal Block and
Supplementary Terminal
2-2
2.2 Installing and Disassembling the ET 200L Electronics Block 2-5
2.3 Setting the ET 200L PROFIBUS Address 2-6
Introduction
Procedure
Contents of the
Chapter
2
