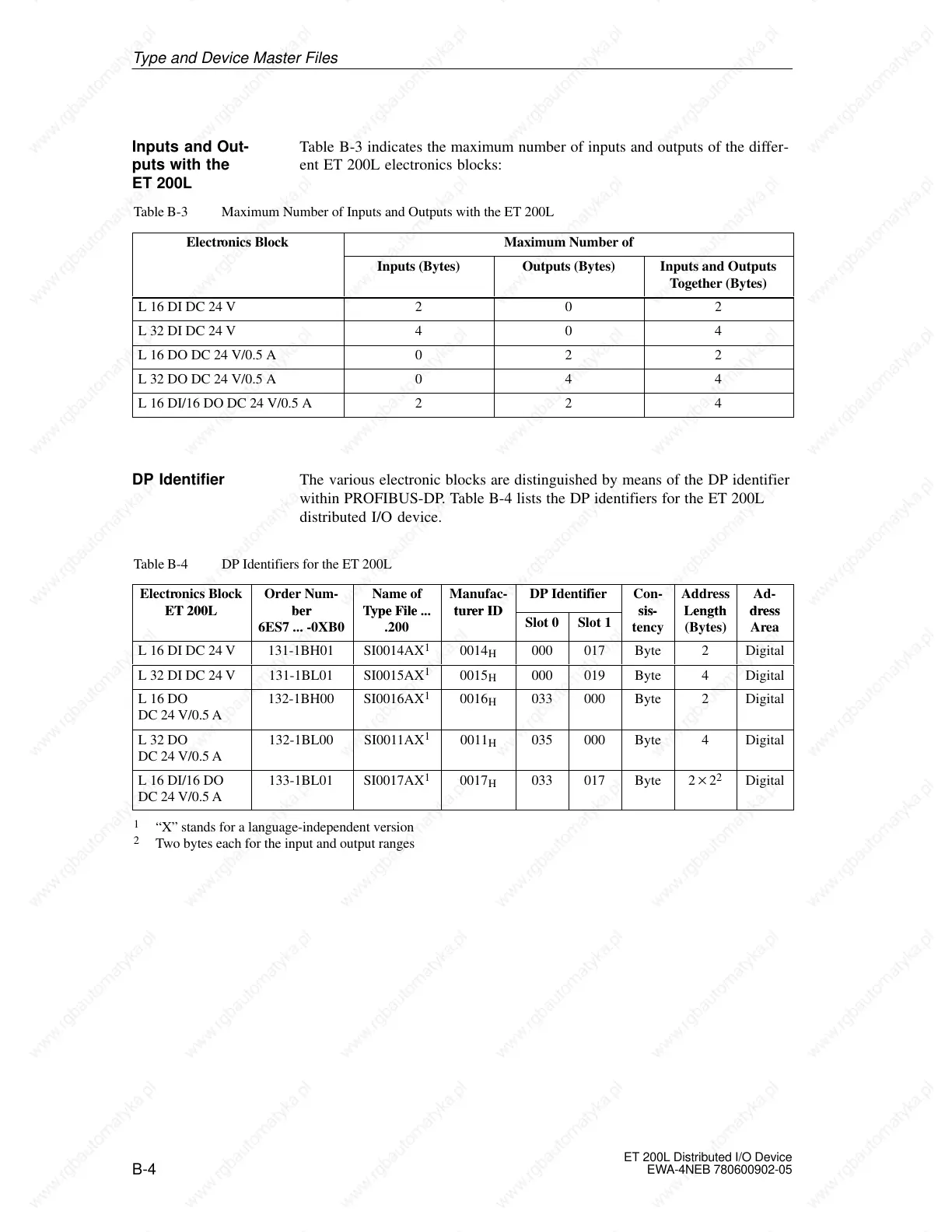

Table B-3 indicates the maximum number of inputs and outputs of the differ-
ent ET 200L electronics blocks:
Table B-3 Maximum Number of Inputs and Outputs with the ET 200L
Electronics Block
Maximum Number of
Inputs (Bytes) Outputs (Bytes) Inputs and Outputs
Together (Bytes)
L 16 DI DC 24 V 2 0 2
L 32 DI DC 24 V 4 0 4
L 16 DO DC 24 V/0.5 A 0 2 2
L 32 DO DC 24 V/0.5 A 0 4 4
L 16 DI/16 DO DC 24 V/0.5 A 2 2 4
The various electronic blocks are distinguished by means of the DP identifier
within PROFIBUS-DP. Table B-4 lists the DP identifiers for the ET 200L
distributed I/O device.
Table B-4 DP Identifiers for the ET 200L
Electronics Block
ET 200L
Order Num-
ber
Name of
Type File ...
Manufac
-
turer ID
DP Identifier Con-
sis-
Addres
s
Length
Ad-
dress
ET 200L
ber
6ES7 ... -0XB
0
Type File ...
.200
turer ID
Slot 0 Slot 1
sis-
tency
Length
(Bytes
)
dress
Area
L 16 DI DC 24 V 131-1BH01 SI0014AX
1
0014
H
000 017 Byte 2 Digital
L 32 DI DC 24 V 131-1BL01 SI0015AX
1
0015
H
000 019 Byte 4 Digital
L 16 DO
DC 24 V/0.5 A
132-1BH00 SI0016AX
1
0016
H
033 000 Byte 2 Digital
L 32 DO
DC 24 V/0.5 A
132-1BL00 SI0011AX
1
0011
H
035 000 Byte 4 Digital
L 16 DI/16 DO
DC 24 V/0.5 A
133-1BL01 SI0017AX
1
0017
H
033 017 Byte 22
2
Digital
1
“X” stands for a language-independent version
2
Two bytes each for the input and output ranges
Inputs and Out-
puts with the
ET 200L
DP Identifier
Type and Device Master Files
