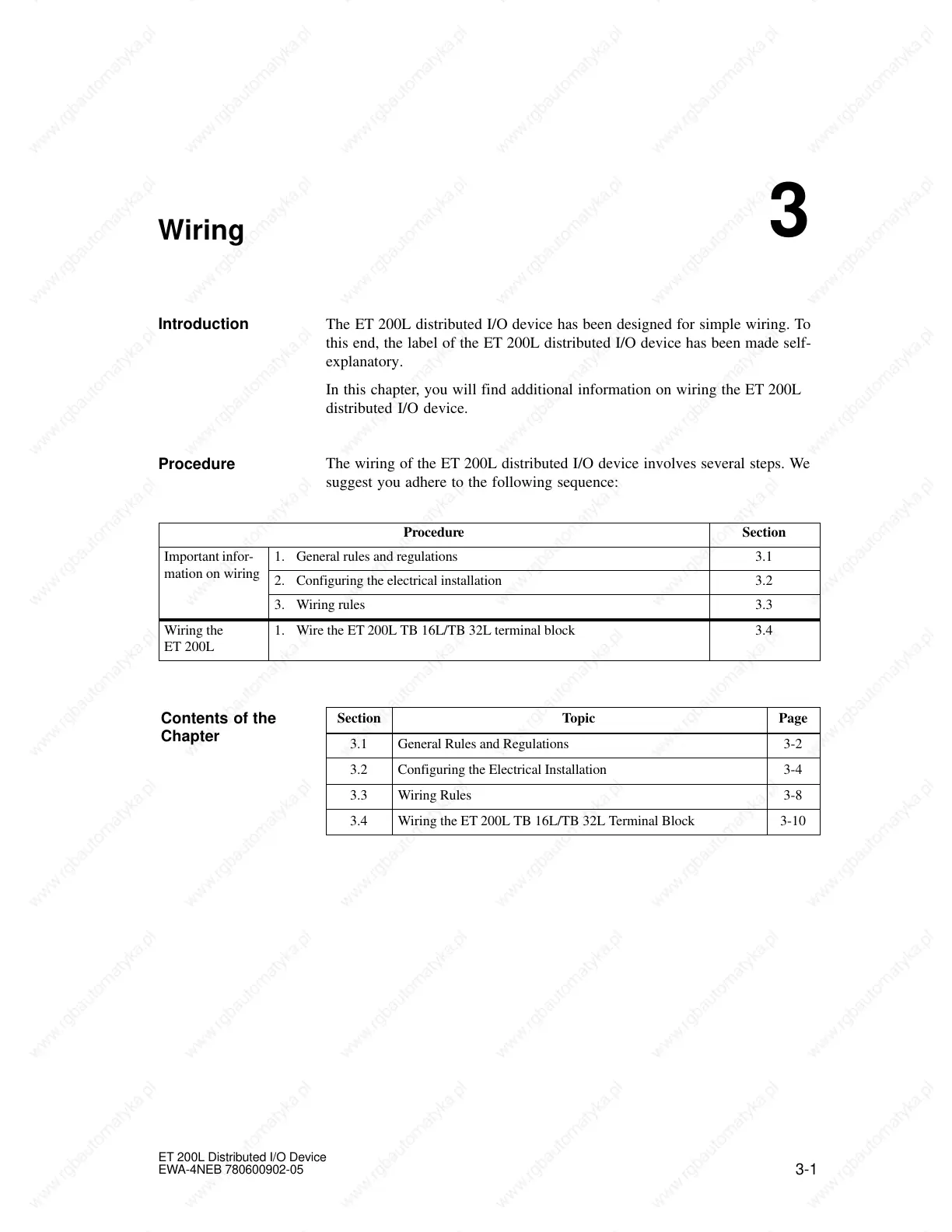

3-1
ET 200L Distributed I/O Device
EWA-4NEB 780600902-05
Wiring
The ET 200L distributed I/O device has been designed for simple wiring. To
this end, the label of the ET 200L distributed I/O device has been made self-
explanatory.
In this chapter, you will find additional information on wiring the ET 200L
distributed I/O device.
The wiring of the ET 200L distributed I/O device involves several steps. We
suggest you adhere to the following sequence:
Procedure Section
Important infor-
1. General rules and regulations 3.1
mation on wiring
2. Configuring the electrical installation 3.2
3. Wiring rules 3.3
Wiring the
ET 200L
1. Wire the ET 200L TB 16L/TB 32L terminal block 3.4
Section Topic Page
3.1 General Rules and Regulations 3-2
3.2 Configuring the Electrical Installation 3-4
3.3 Wiring Rules 3-8
3.4 Wiring the ET 200L TB 16L/TB 32L Terminal Block 3-10
Introduction
Procedure
Contents of the
Chapter
3
