B-3
ET 200L Distributed I/O Device
EWA-4NEB 780600902-05
If you do not have the device master file in front of you, the most important
characteristics of the ET 200L distributed I/O device are listed here in tabular
form.

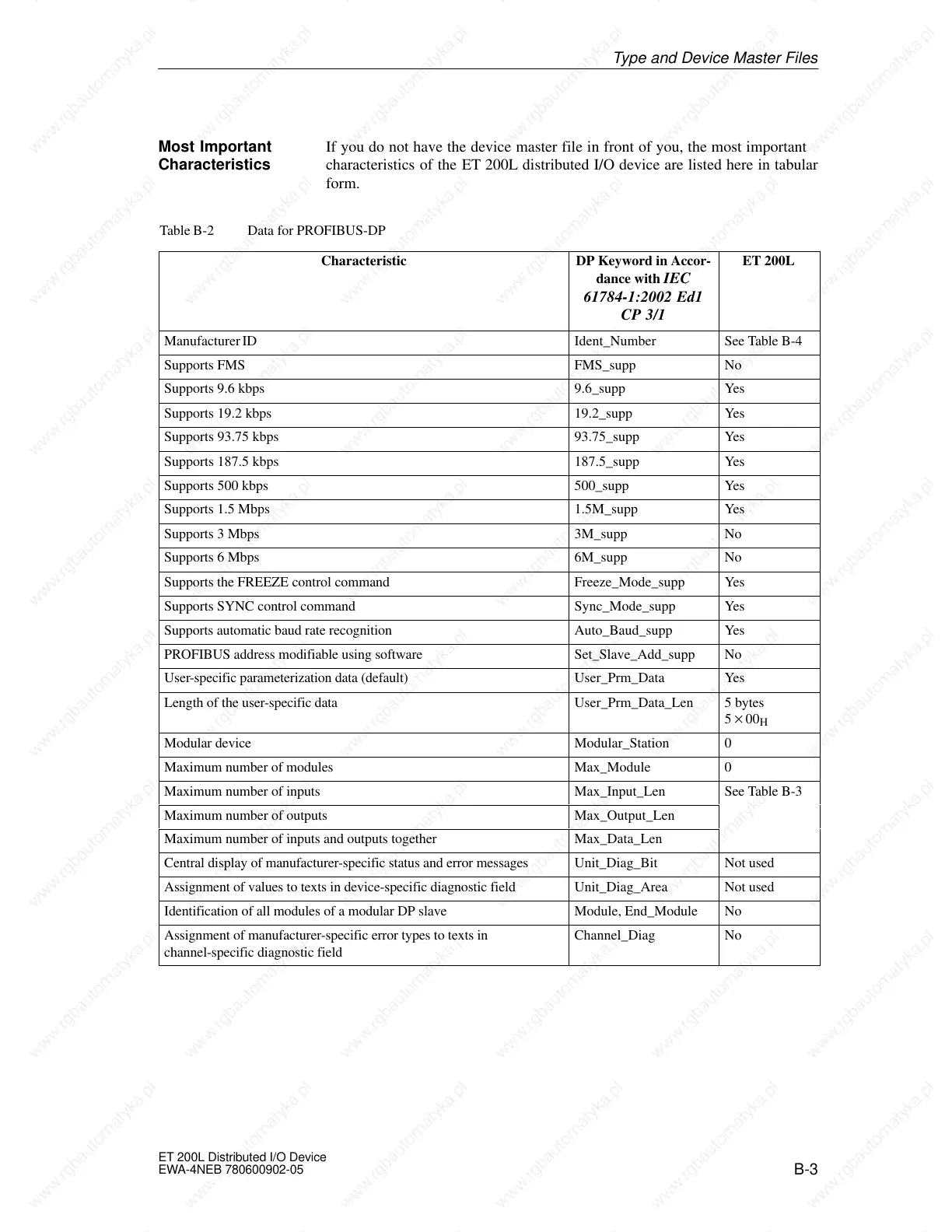

Table B-2 Data for PROFIBUS-DP
Characteristic DP Keyword in Accor-
dance with
IEC
61784-1:2002 Ed1
CP 3/1
ET 200L
Manufacturer ID Ident_Number See Table B-4
Supports FMS FMS_supp No
Supports 9.6 kbps 9.6_supp Yes
Supports 19.2 kbps 19.2_supp Ye s
Supports 93.75 kbps 93.75_supp Yes
Supports 187.5 kbps 187.5_supp Yes
Supports 500 kbps 500_supp Yes
Supports 1.5 Mbps 1.5M_supp Ye s
Supports 3 Mbps 3M_supp No
Supports 6 Mbps 6M_supp No
Supports the FREEZE control command Freeze_Mode_supp Yes
Supports SYNC control command Sync_Mode_supp Yes
Supports automatic baud rate recognition Auto_Baud_supp Yes
PROFIBUS address modifiable using software Set_Slave_Add_supp No
User-specific parameterization data (default) User_Prm_Data Yes
Length of the user-specific data User_Prm_Data_Len 5 bytes
500
H
Modular device Modular_Station 0
Maximum number of modules Max_Module 0
Maximum number of inputs Max_Input_Len See Table B-3
Maximum number of outputs Max_Output_Len
Maximum number of inputs and outputs together Max_Data_Len
Central display of manufacturer-specific status and error messages Unit_Diag_Bit Not used
Assignment of values to texts in device-specific diagnostic field Unit_Diag_Area Not used
Identification of all modules of a modular DP slave Module, End_Module No
Assignment of manufacturer-specific error types to texts in
channel-specific diagnostic field
Channel_Diag No
Most Important
Characteristics
Type and Device Master Files
