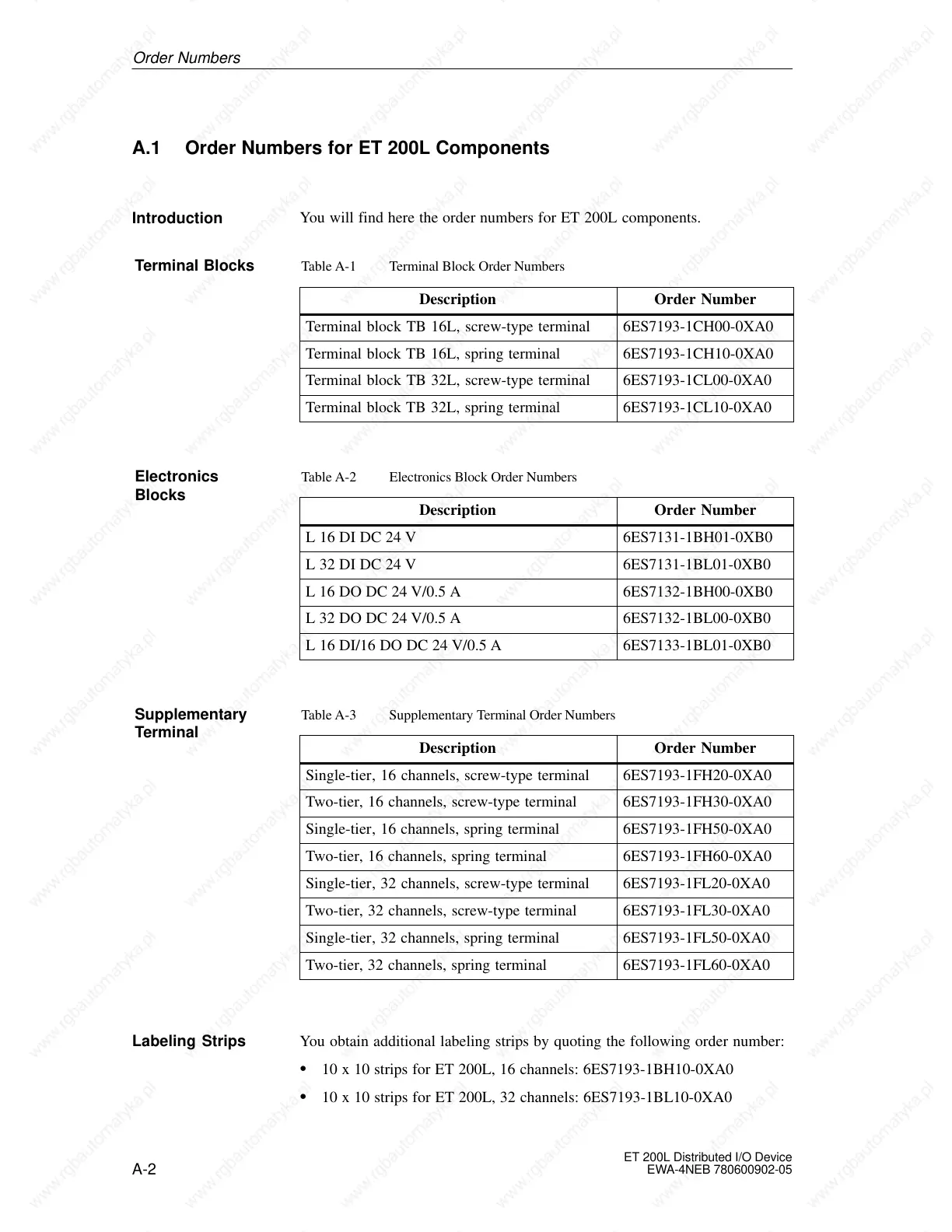

A.1 Order Numbers for ET 200L Components
You will find here the order numbers for ET 200L components.
Table A-1 Terminal Block Order Numbers
Description Order Number
Terminal block TB 16L, screw-type terminal 6ES7193-1CH00-0XA0
Terminal block TB 16L, spring terminal 6ES7193-1CH10-0XA0
Terminal block TB 32L, screw-type terminal 6ES7193-1CL00-0XA0
Terminal block TB 32L, spring terminal 6ES7193-1CL10-0XA0
Table A-2 Electronics Block Order Numbers
Description Order Number
L 16 DI DC 24 V 6ES7131-1BH01-0XB0
L 32 DI DC 24 V 6ES7131-1BL01-0XB0
L 16 DO DC 24 V/0.5 A 6ES7132-1BH00-0XB0
L 32 DO DC 24 V/0.5 A 6ES7132-1BL00-0XB0
L 16 DI/16 DO DC 24 V/0.5 A 6ES7133-1BL01-0XB0
Table A-3 Supplementary Terminal Order Numbers
Description Order Number
Single-tier, 16 channels, screw-type terminal 6ES7193-1FH20-0XA0
Two-tier, 16 channels, screw-type terminal 6ES7193-1FH30-0XA0
Single-tier, 16 channels, spring terminal 6ES7193-1FH50-0XA0
Two-tier, 16 channels, spring terminal 6ES7193-1FH60-0XA0
Single-tier, 32 channels, screw-type terminal 6ES7193-1FL20-0XA0
Two-tier, 32 channels, screw-type terminal 6ES7193-1FL30-0XA0
Single-tier, 32 channels, spring terminal 6ES7193-1FL50-0XA0
Two-tier, 32 channels, spring terminal 6ES7193-1FL60-0XA0
You obtain additional labeling strips by quoting the following order number:
S 10 x 10 strips for ET 200L, 16 channels: 6ES7193-1BH10-0XA0
S 10 x 10 strips for ET 200L, 32 channels: 6ES7193-1BL10-0XA0
