8.5 Electronics Block L 16 DI/16 DO DC 24 V/0.5 A –
6ES7133-1BL01-0XB0
The L 16 DI/16 DO DC 24 V/0.5 A electronics block has the following char-
acteristics:
S 16 inputs in a single group of 16 inputs
– Rated input voltage of 24 V DC
– Suitable for switches and proximity switches (BEROs)
S 16 outputs in a single group of 16 outputs
– Output current of 0.5 A
– Rated load voltage of 24 V DC
– Suitable for solenoids, DC contactors, and indicator lights

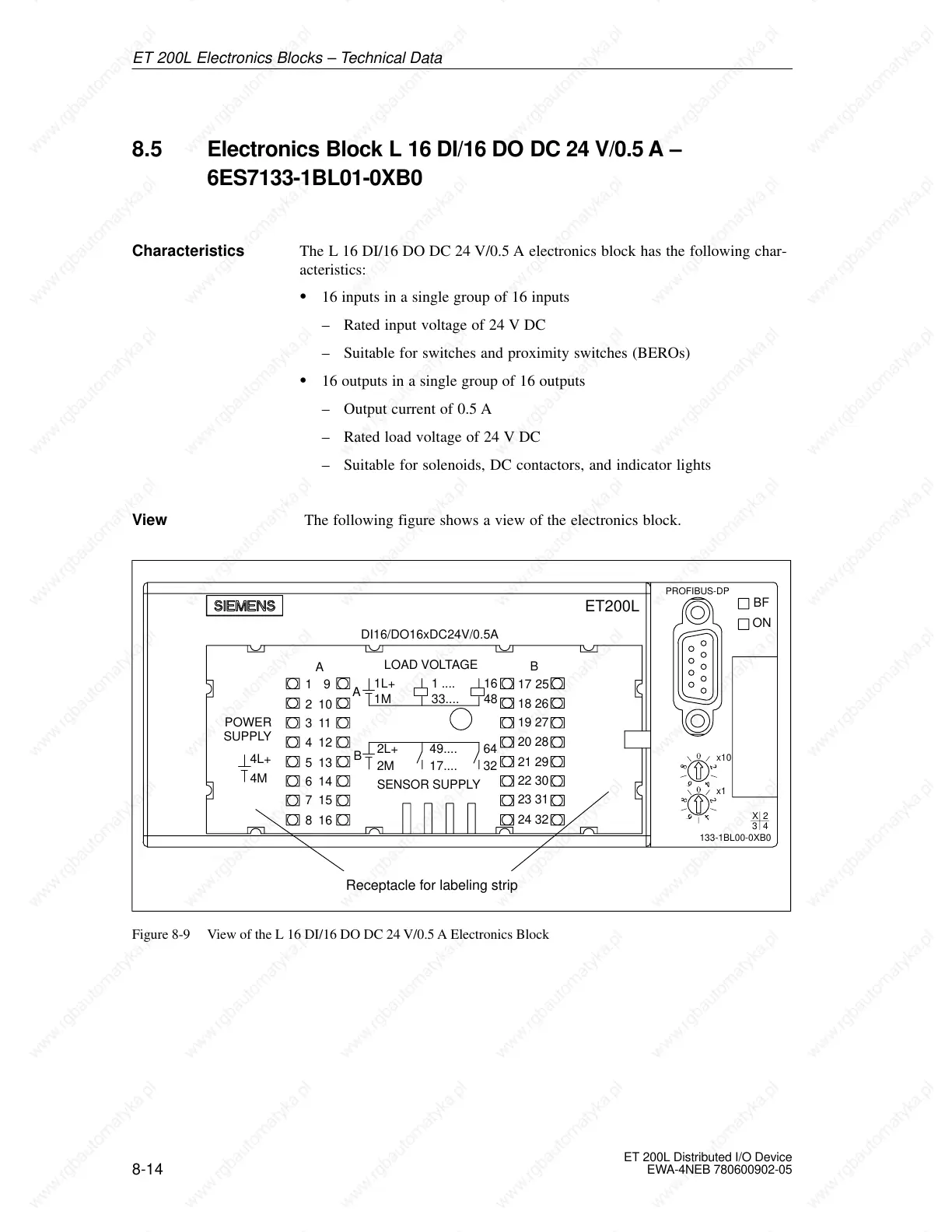

The following figure shows a view of the electronics block.
LOAD VOLTAGE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
A
1L+
1M
1 ....
33....
16
48
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
B
DI16/DO16xDC24V/0.5A
ET200L
ON
BF
PROFIBUS-DP
133-1BL00-0XB0
X2
34
x10
x1
SUPPLY
POWER
4L+
4M
A
SENSOR SUPPLY
2L+
2M
17....
49....
32
64
B
Receptacle for labeling strip
Figure 8-9 View of the L 16 DI/16 DO DC 24 V/0.5 A Electronics Block
