Siemens SIMATIC ET 200L User Manual

7-2
ET 200L Distributed I/O Device
EWA-4NEB 780600902-05

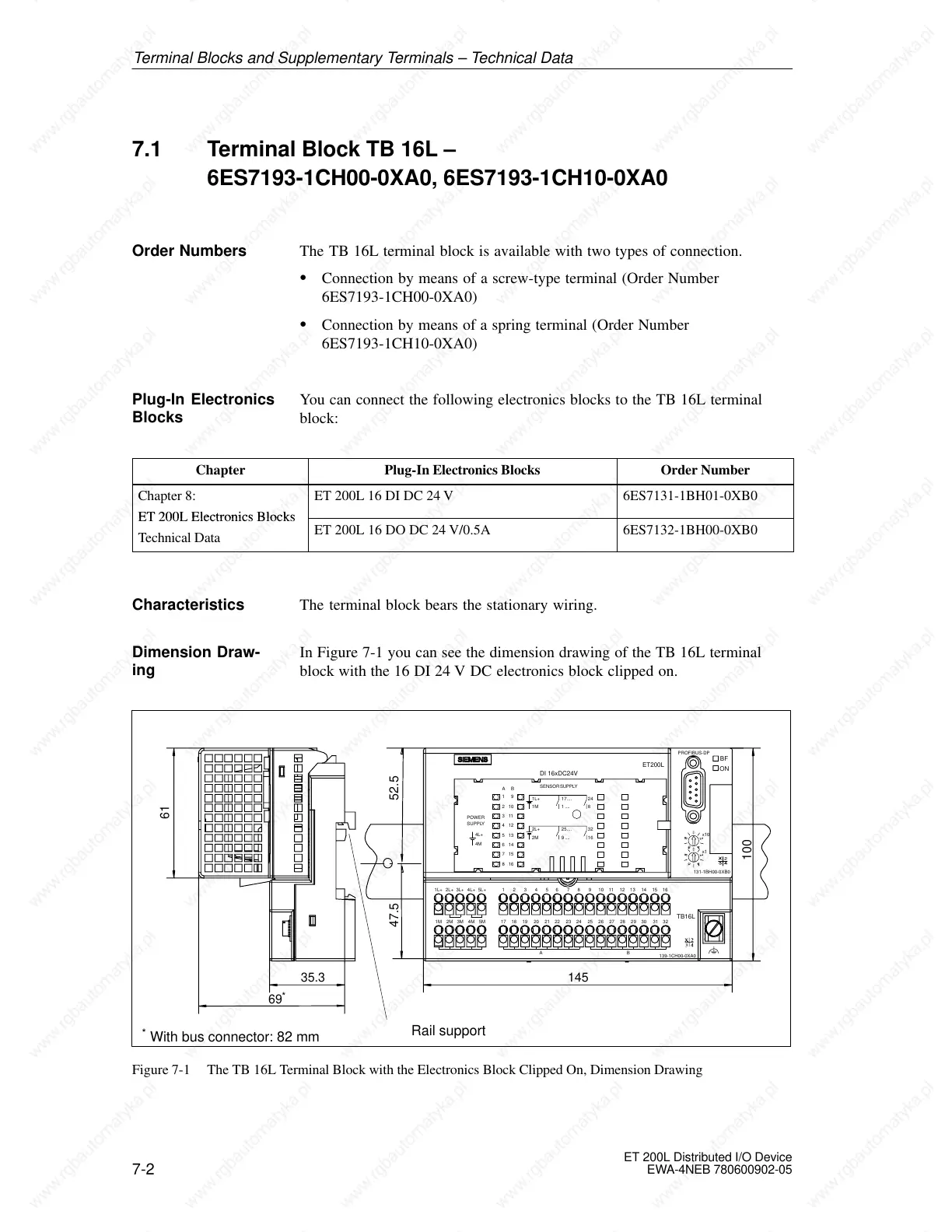

7.1 Terminal Block TB 16L –
6ES7193-1CH00-0XA0, 6ES7193-1CH10-0XA0
The TB 16L terminal block is available with two types of connection.
S Connection by means of a screw-type terminal (Order Number
6ES7193-1CH00-0XA0)
S Connection by means of a spring terminal (Order Number
6ES7193-1CH10-0XA0)
You can connect the following electronics blocks to the TB 16L terminal
block:
Chapter Plug-In Electronics Blocks Order Number
Chapter 8:
ET 200L Electronics Blocks
ET 200L 16 DI DC 24 V 6ES7131-1BH01-0XB0
ET 200L Electronics Blocks
Technical Data
ET 200L 16 DO DC 24 V/0.5A 6ES7132-1BH00-0XB0
The terminal block bears the stationary wiring.
In Figure 7-1 you can see the dimension drawing of the TB 16L terminal
block with the 16 DI 24 V DC electronics block clipped on.
18 19 31292827
1615141312111098764321
30 3220 21
14535.3
69
*
61
100
ON
BF
PROFIBUS-DP
x10
x1
131-1BH00-0XB0
139-1CH00-0XA0
TB16L
1L+ 2L+ 3L+ 4L+ 5L+
1M 2M 3M 4M 5M 17 22 23 24 25 26
5
AB
ET200L
DI 16xDC24V
SENSOR SUPPLY
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
AB
SUPPLY
POWER
4L+
4M
1L+
1M
17....
1 ....
24
8
2L+
2M
25....
9 ....
32
16
47.5 52.5
Rail support
*
With bus connector: 82 mm
Figure 7-1 The TB 16L Terminal Block with the Electronics Block Clipped On, Dimension Drawing
Order Numbers
Plug-In Electronics
Blocks
Characteristics
Dimension Draw-
ing
T
erminal Blocks and Supplementary Terminals – Technical Da
ta
