ET 200L Distributed I/O Device
EWA-4NEB 780600902-05

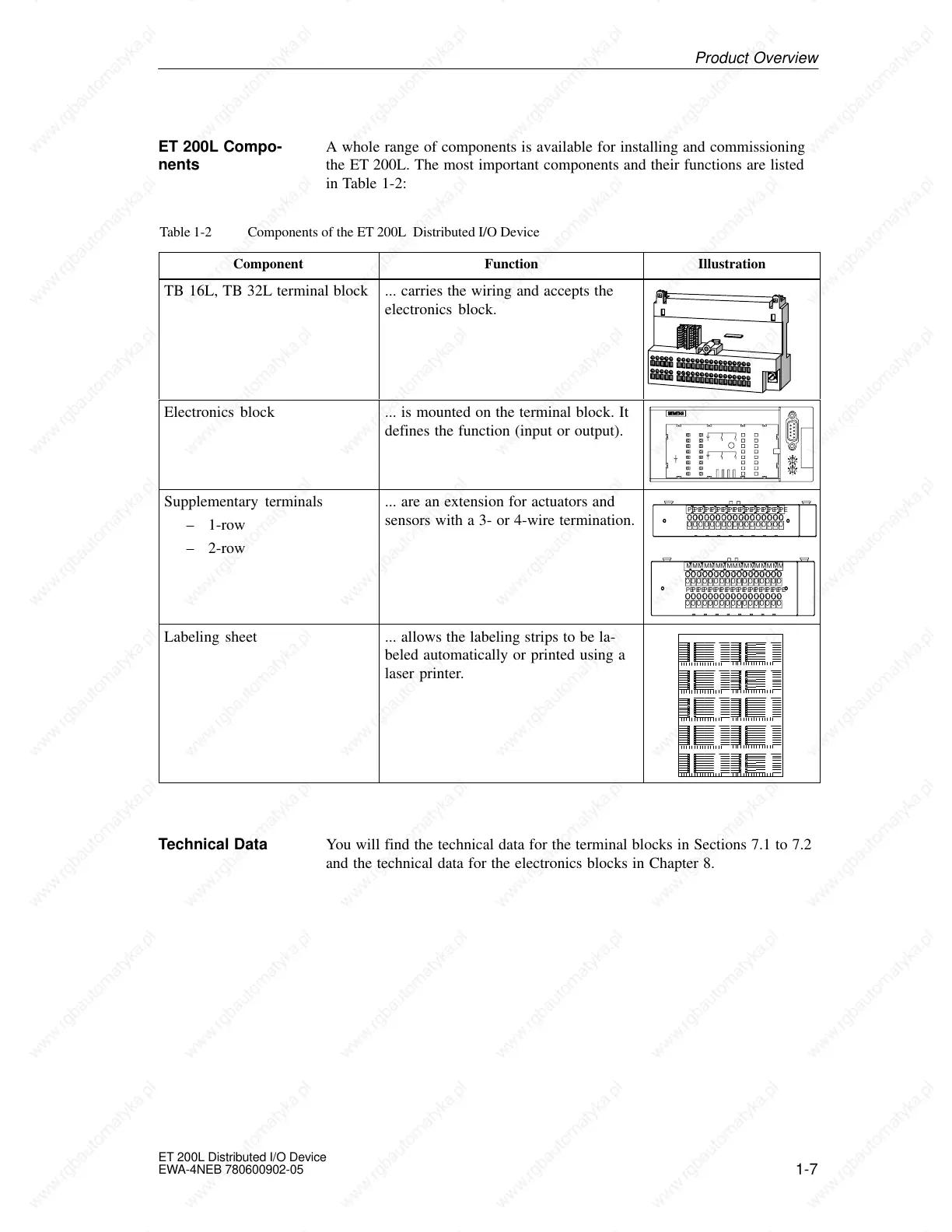

A whole range of components is available for installing and commissioning
the ET 200L. The most important components and their functions are listed
in Table 1-2:
Table 1-2 Components of the ET 200L Distributed I/O Device
Component
Function Illustration
TB 16L, TB 32L terminal block ... carries the wiring and accepts the
electronics block.
Electronics block ... is mounted on the terminal block. It
defines the function (input or output).
Supplementary terminals
– 1-row
– 2-row
... are an extension for actuators and
sensors with a 3- or 4-wire termination.
MMMMMMMMMMMMMMMMM
PE PEPEPE PE PEPEPE PE PEPEPE PE PEPEPE PE
PE PEPEPE PE PEPEPE PE PEPEPE PE PEPEPE PE
Labeling sheet ... allows the labeling strips to be la-
beled automatically or printed using a
laser printer.
You will find the technical data for the terminal blocks in Sections 7.1 to 7.2
and the technical data for the electronics blocks in Chapter 8.
