2-3
ET 200L Distributed I/O Device
EWA-4NEB 780600902-05
Install the terminal block in the following order:
1. Mount the terminal block on the rail.
2. Tilt the terminal block backwards until you hear both the safety bolts en-
gage.
You can now wire the terminal block (refer to Chapter 3) before you install
the electronics block. If you are using supplementary terminals, you must
install them before you commence wiring.
1
2

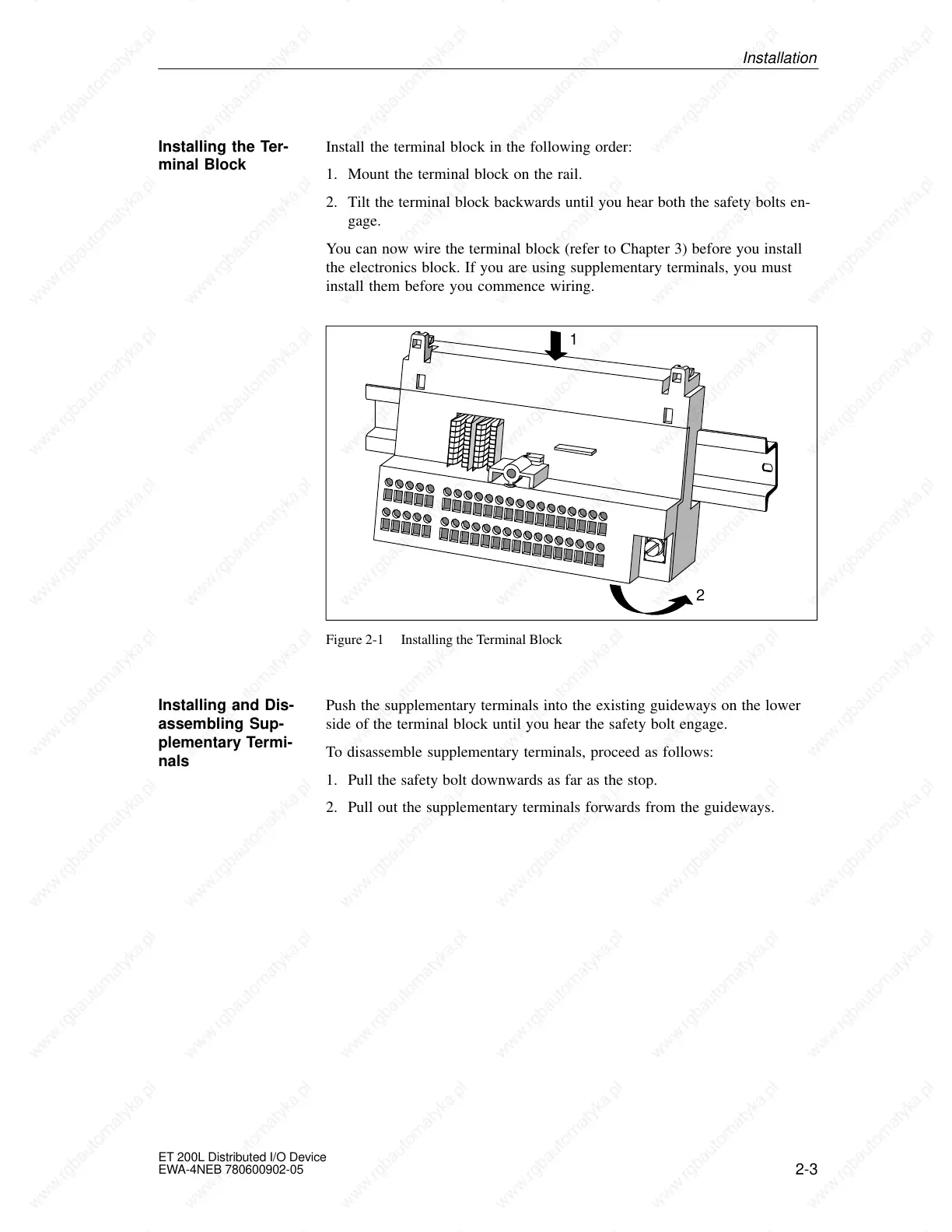

Figure 2-1 Installing the Terminal Block
Push the supplementary terminals into the existing guideways on the lower
side of the terminal block until you hear the safety bolt engage.
To disassemble supplementary terminals, proceed as follows:
1. Pull the safety bolt downwards as far as the stop.
2. Pull out the supplementary terminals forwards from the guideways.
Installing the Ter-
minal Block
Installing and Dis-
assembling Sup-
plementary Termi-
nals
