Properties of the DI 32xDC24V
The DI 32 x DC 24 V is characterized by the following properties:
● 32 inputs, isolated in groups of 16
● Rated input voltage 24 V DC
● Suitable for switches and 2-/3-/4-wire proximity switches (BEROs)
● Group error display (SF LED)

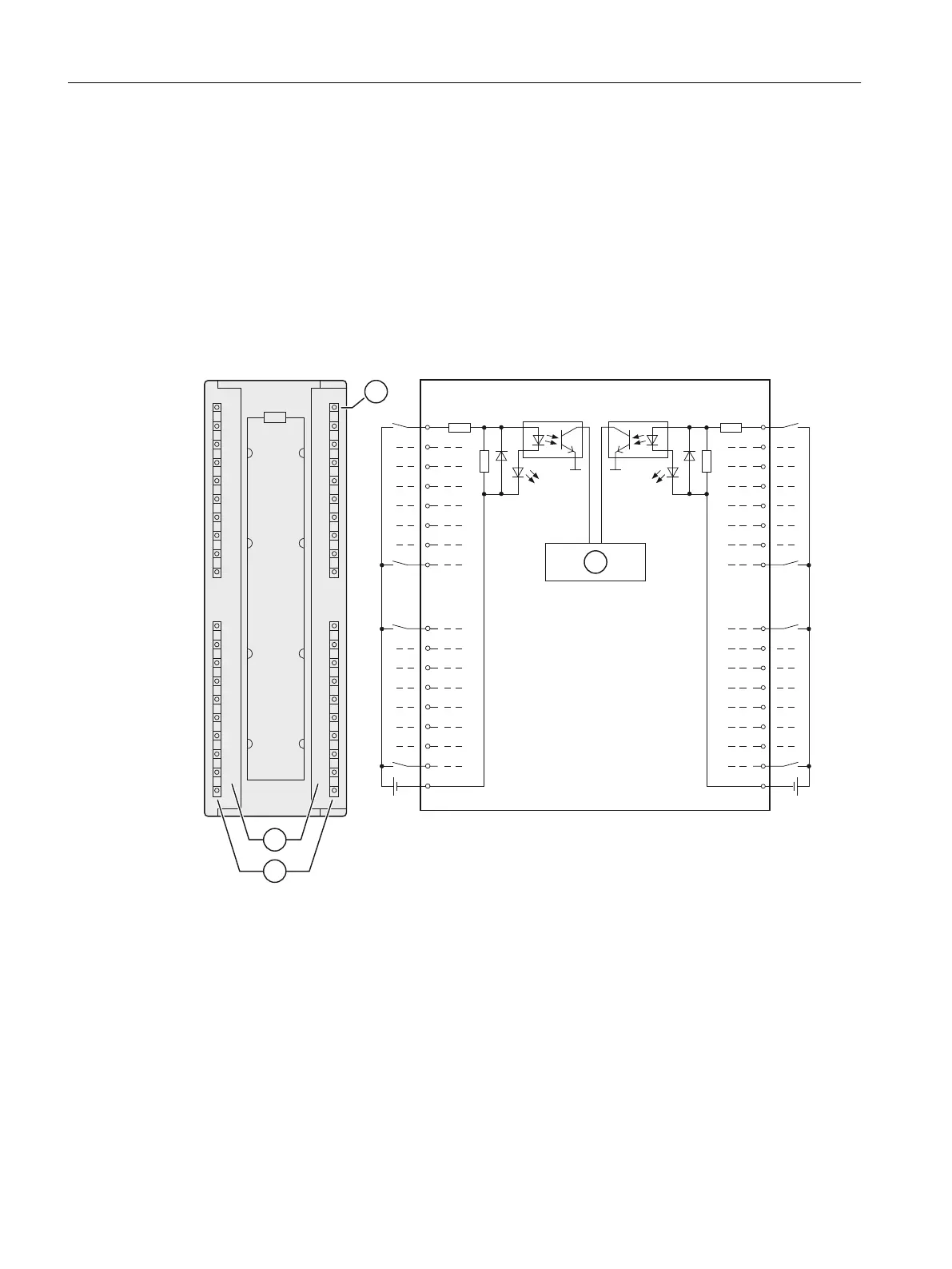

Wiring and block diagram of the DI 32 x DC 24 V




9

















































0
0
9
















0
0
6)
① Channel number
② Status display - green
③ Backplane bus interface
④ Group error display - red (SF LED)
ET 200PA SMART I/O modules
10.2 Digital input modules
ET 200PA SMART
126 Operating Instructions, 06/2019, A5E34192013-AB
