Functions
7
7.1 Connection of HART field devices

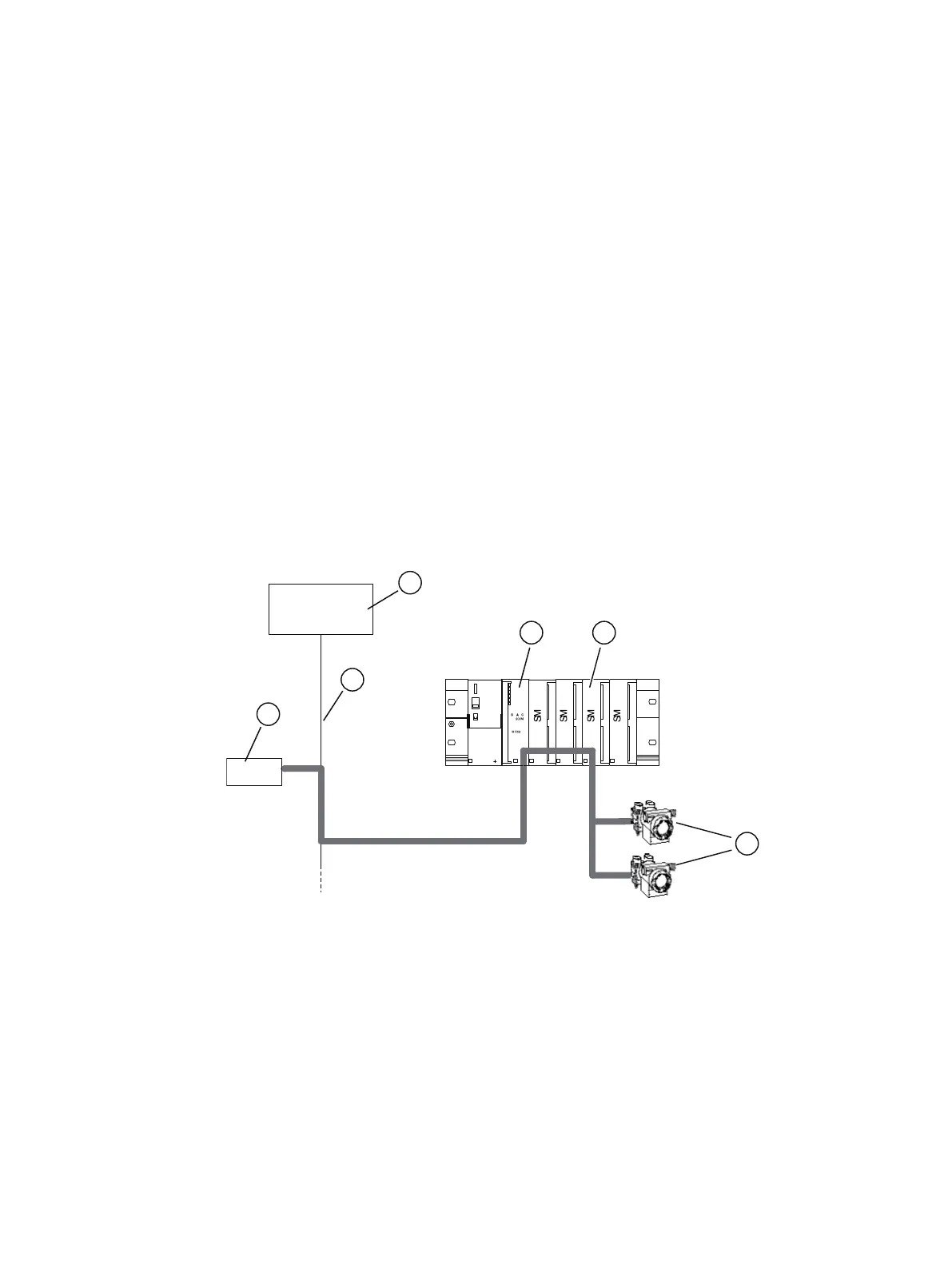

Example configuration with IM 650 and a HART module
You can use HART modules in the ET 200PA SMART. In this application, the ET 200PA
SMART is the HART master for HART slaves (intelligent field devices).
The IM 650 passes data from the PG/PC via the HART analog module to the intelligent field
devices and back again (the thick line indicates the communication path).
A detailed description can be found in the manual for the corresponding HART module:
● "Automation System S7-300, ET 200M Ex I/O Modules" http://
support.automation.siemens.com/WW/view/de/1096709)".
● "ET200M Distributed I/O System HART Analog Modules"
SIMATIC ET200M Distributed I/O System HART Analog Modules
1 2
3
6
5
4
① IM 650
② For example: SM 331; AI 2 x 0/4 … 20 mA HART
③ Intelligent field devices
④ PROFIBUS DP
⑤ PG/PC
⑥ DP master
Figure 7-1 Passing parameter assignment data with an IM 650 and HART modules
