Protective conductor connection
The following figure shows you how to realize the protective conductor connection on the
mounting rail.

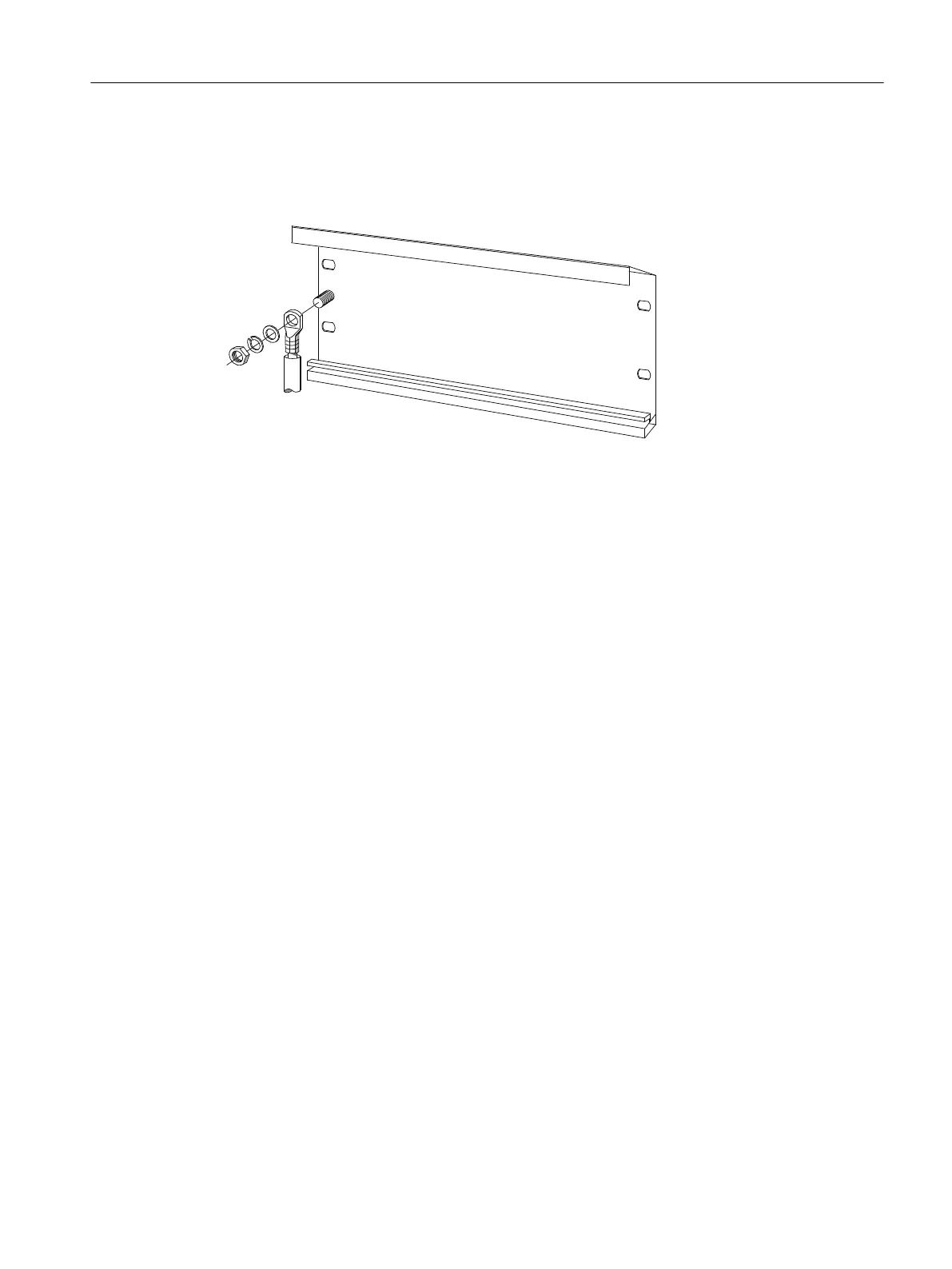

Figure 3-2 Protective conductor connection on the mounting rail
See also
Clearance Measurements (Page 18)
3.2.3 Installing active bus modules and modules
Installing bus modules and modules
To install the active bus modules and modules, proceed as follows:
Installation
3.2 Installation
ET 200PA SMART
Operating Instructions, 06/2019, A5E34192013-AB 35
