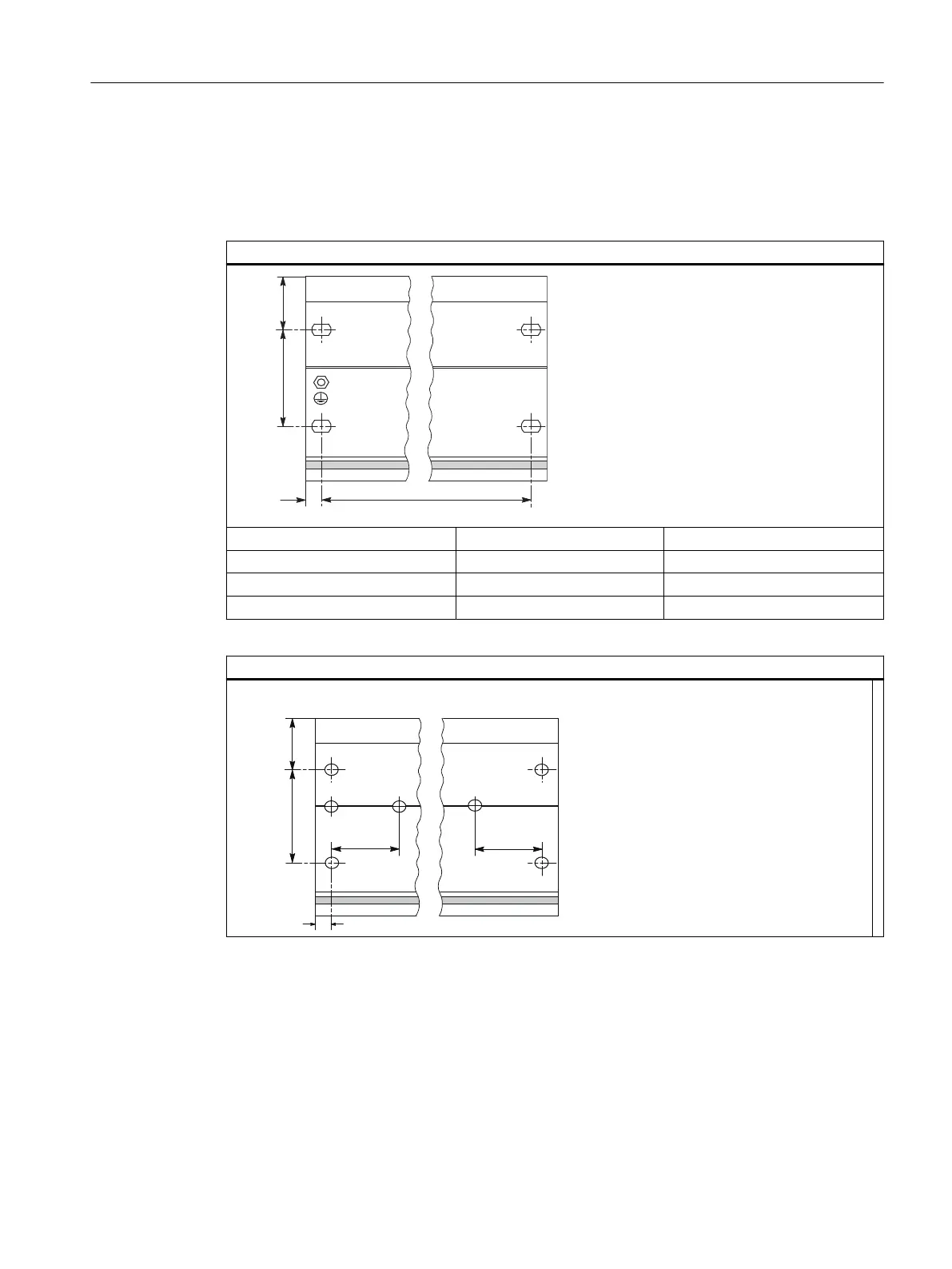

Dimension drawing for fixing holes
The dimensions for the fixing holes of the mounting rail are shown in the following table.
Table 3-1 Fixing holes for mounting rails
Mounting rail
PP
PP
D
E
Length of mounting rail Distance a Distance b
482.6 mm 8.3 mm 466 mm
530 mm 15 mm 500 mm
620 mm 15 mm 590 mm
2-meter mounting rail
PP
PP
PP
PP
PP
DSSUR[DSSUR[
Installation
3.2 Installation
ET 200PA SMART
Operating Instructions, 06/2019, A5E34192013-AB 33
