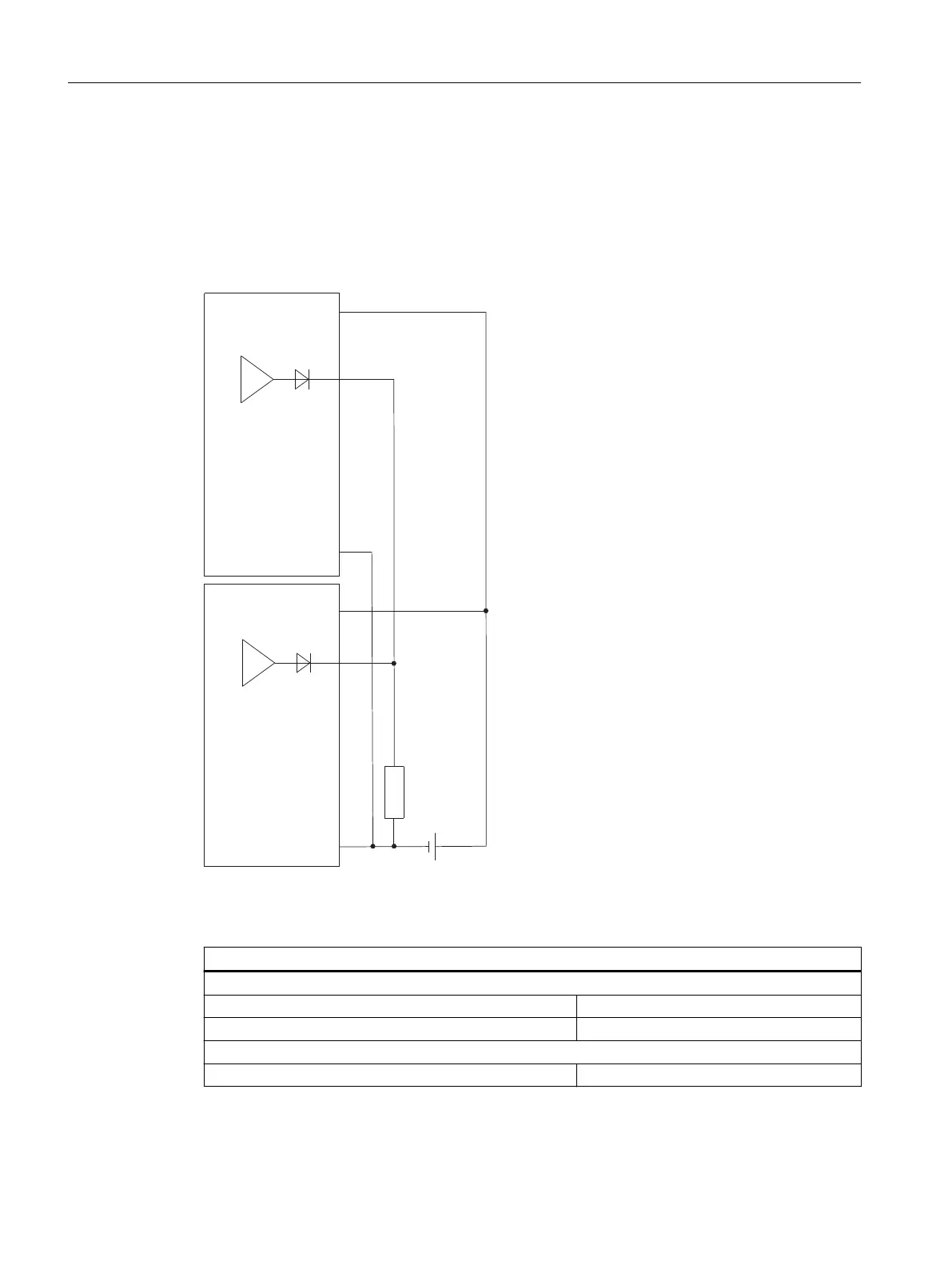

Redundant use
No monitoring for short-circuit to L+ occurs in redundant use.
Two terminals are present per channel. Both connections are equivalent and can be used for
a redundant control of an actuator. The redundant control is possible without external
protection circuit. In redundant operation with two modules, both modules must have the same
reference potential M.
0
/
9
&+[
&+[
0
/
0RGXOH
0RGXOH
Technical specifications of the DO 16 x DC 24 V/0.5 A
Technical specifications
Dimensions and weight
Dimensions W x H x D (mm) 40 x 125 x 117
Weight Approx. 300 g
Module-specific data
Number of outputs 16
ET 200PA SMART I/O modules
10.3 Digital output modules
