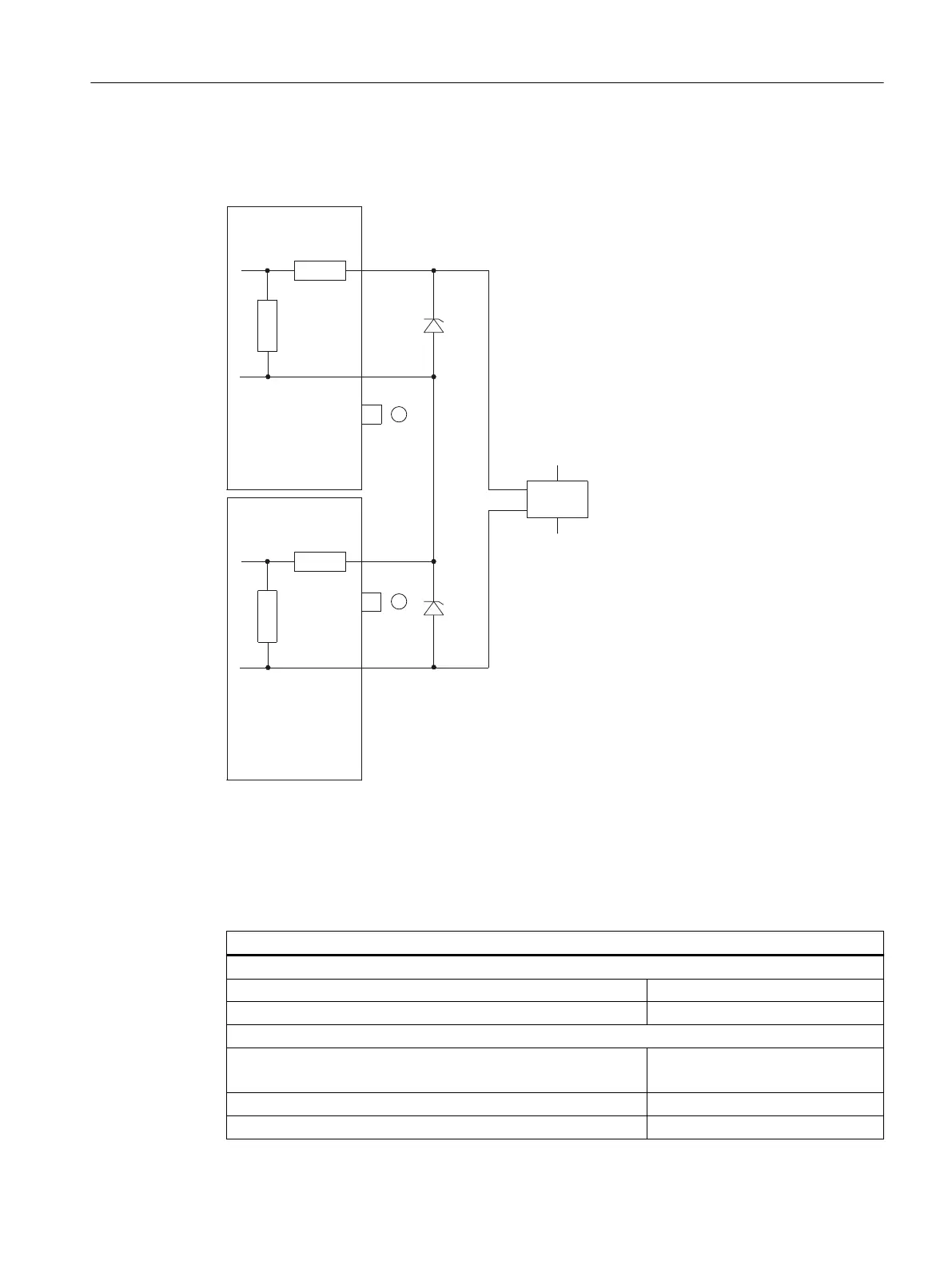

Redundant connection of a 4-wire transducer
0RGXOH
0RGXOH
0
0[
0
/
/
8Y
0[
'08
0[
0[
8Y




1
1


① Redundancy jumper
* The Zener diodes 5.1 V (e.g., BZX85C5V1) are only required if a module is pulled and the
system should continue to run.
Technical specifications of the AI 16 x 16 Bit
Technical specifications
Dimensions and weight
Dimensions W x H x D (mm) 40 x 125 x 117
Weight Approx. 280 g
Module-specific data
Number of inputs
Number of supply outputs
16
16
Cable length, shielded Max. 800 m
MTBF 50 years
ET 200PA SMART I/O modules
10.4 Analog input modules
ET 200PA SMART
Operating Instructions, 06/2019, A5E34192013-AB 181
