Siemens SIMATIC ET 200SP Equipment Manual

Connecting
3.1 Wiring and block diagram
ET 200SP F-TM Count 1x1Vpp sin/cos HF (6ES7136-6CB00-0CA0)
24 Equipment Manual, V1.0, 01/2021, A5E47073911-AA

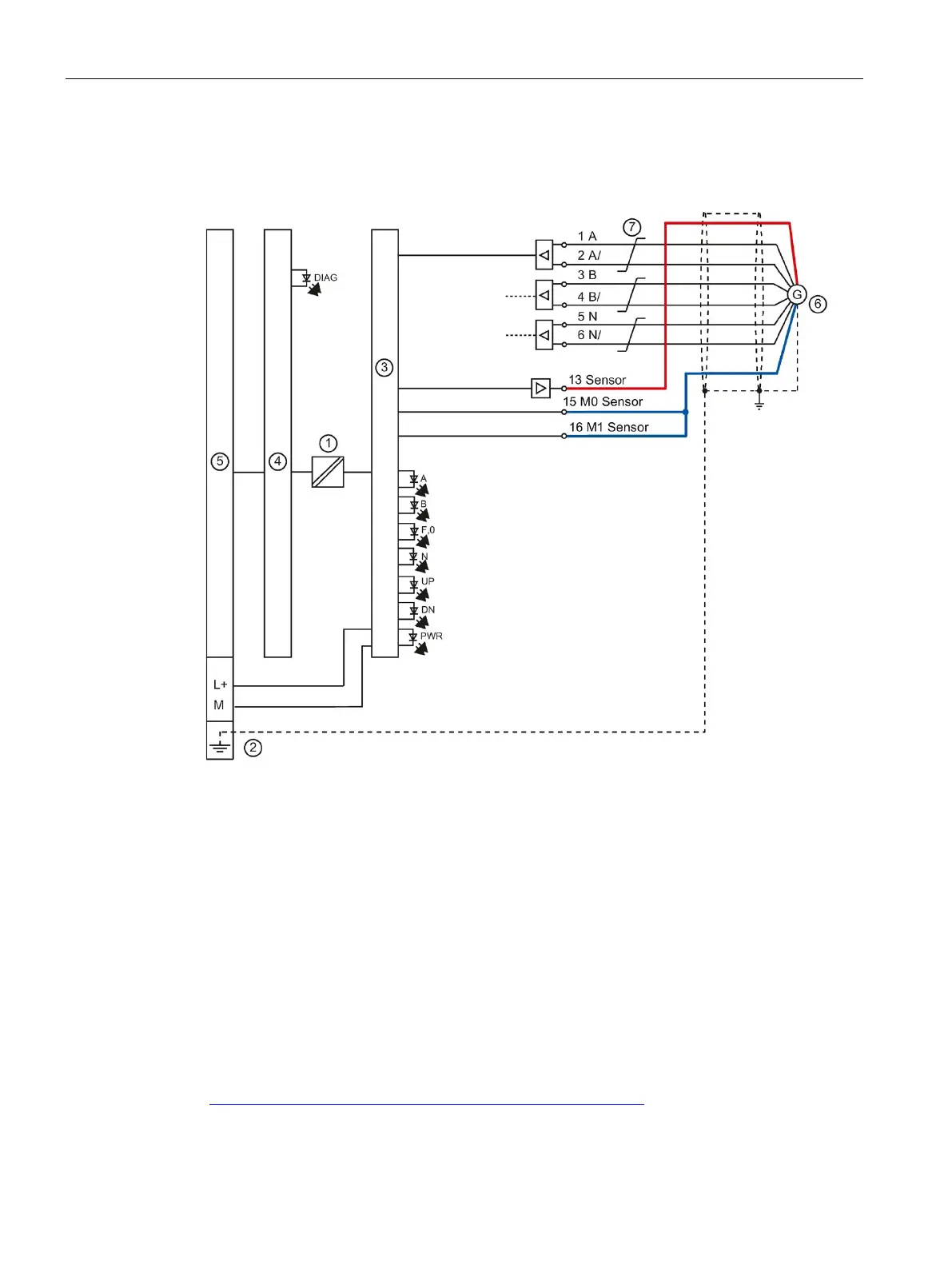

Block diagram
①
Electrical isolation
②
Shield connection on the BaseUnit
③
Technology
④
Backplane bus interface module of the F-TM Count module
⑤
Backplane bus
⑥
Sin/Cos encoder
⑦
Twisted in pairs
Figure 3-1 Block diagram with sin/cos encoder
BaseUnit
The BaseUnit is not included with the delivery of the module.
You can find information on wiring the BaseUnit, connecting cable shields, etc. in the
Connecting section of the ET 200SP Distributed I/O System, system manual
(https://support.industry.siemens.com/cs/pl/en/view/58649293).

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
