Parameters/address space
4.6 Explanation of parameters
ET 200SP F-TM Count 1x1Vpp sin/cos HF (6ES7136-6CB00-0CA0)
44 Equipment Manual, V1.0, 01/2021, A5E47073911-AA

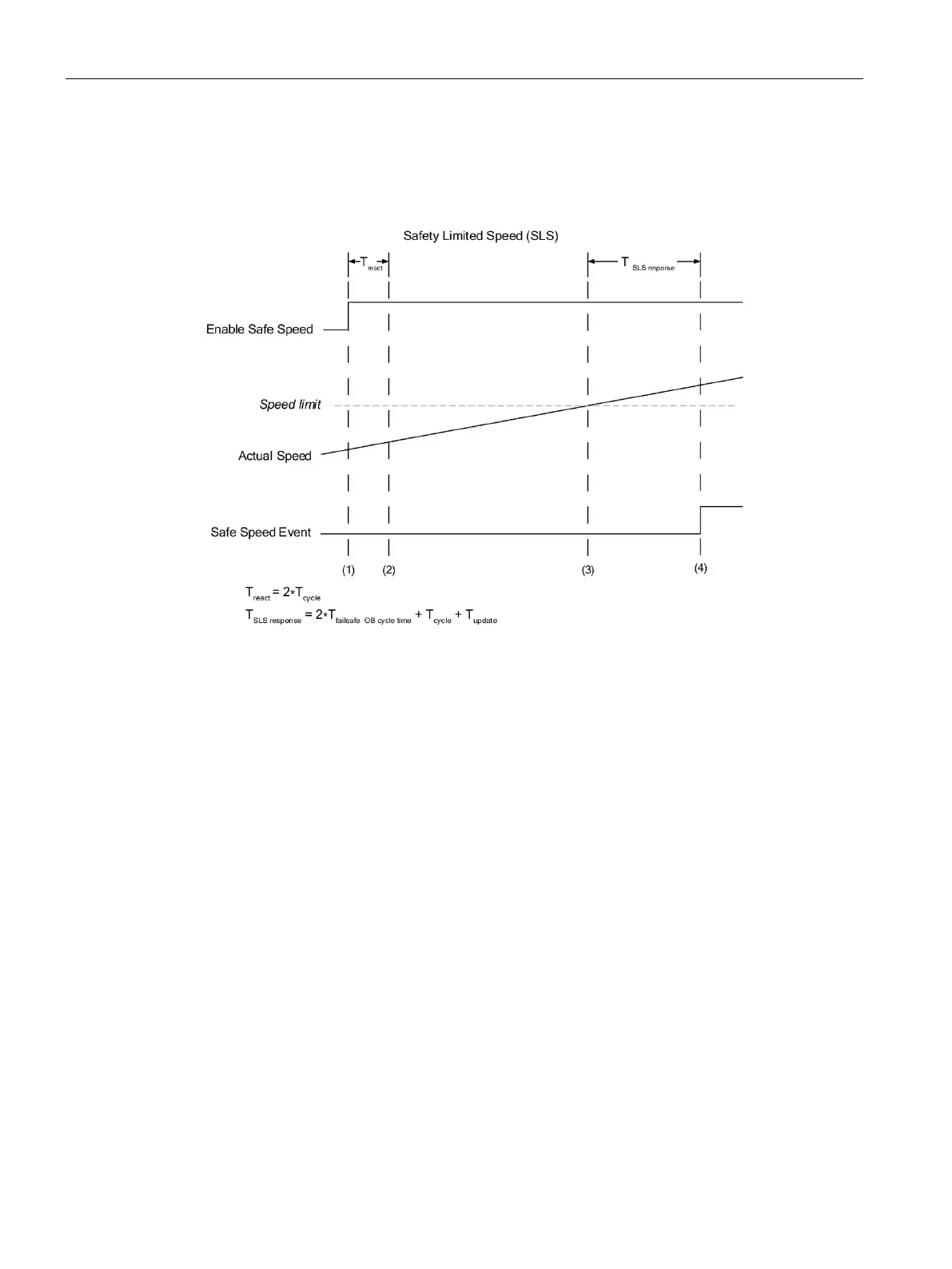

Safety Function - Limited Speed
Enables safety limited speed (SLS) monitoring only when "Velocity" is selected as the
measured value.
1
User program set "Enable Safe Speed" high to initiate SLS monitoring
2
Module process the "Enable Safe Speed" value and SLS monitoring is started.
3
Calculated speed exceeds the configured speed limit, "Safe Speed Event" set in the module.
4
User program sees "Safe Speed Event" go high to indicate an overflow occurred.
