Setting parameters for blocks
3.4 Programming Ident blocks
Ident profile and Ident blocks, standard function for Ident systems
Function Manual, 10/2018, C79000-G8976-C387-04
57
Parameter
Data type
Default values
Description
PARAM_SET Byte 0 Field_ON_Control
(0 = fast; range of values: 0x00, 0x02)
CHANNEL_PLAN Byte 0F Field_ON_Time
(range of values: 0x00 ... 0x0F; ETSI
only)
MULTITAG Byte 1 Maximum number of transponders
that can be processed at the same
time in the antenna field.
(Range of values: 0x01 ... 0x50)
ISTM Bool False True = activate intelligent single tag
mode
SCANNING_MOD
E
Bool False True = activate scanning mode
1)
1)
Is not currently possible with the Ident blocks.
3.4.3.7
Reset_Univ
The "Reset_Univ" block is a universal reset block with which all identification systems can be
reset. Use this block only after consulting Support.

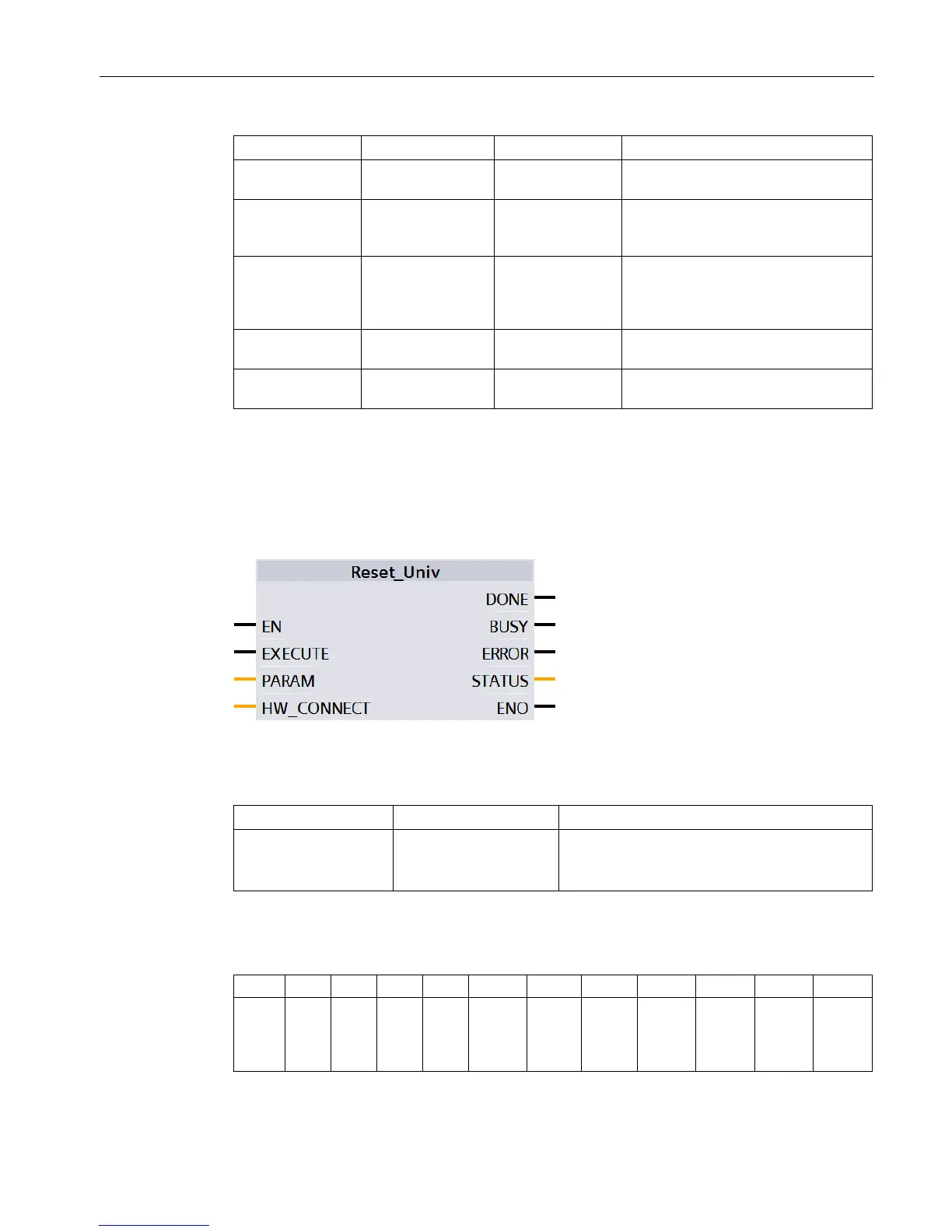

Figure 3-29 "Reset_Univ" block
Table 3- 34 Explanation of the "Reset_Univ" block
Parameter
Data type
Description
PARAM Array [1...16] of Byte Data for reset frame
The data to be set here can be made available
by Support when necessary for special settings.
Table 3- 35 Structure of the "PARAM" parameter
Byte
1
2...5
6
7...8
9
10
11
12
13...14
15
16
Value
0x04 0x00 0x0A 0x00 scan-
ning_
time
param option_
1
dis-
tance_
limiting
No. of
tran-
spond-
ers
field_
on_
control
field_
on_
time
