Technical specifications
8.3 Dimension drawings
SIMATIC IPC277E
102 Operating Instructions, 11/2019, A5E35783335-AE

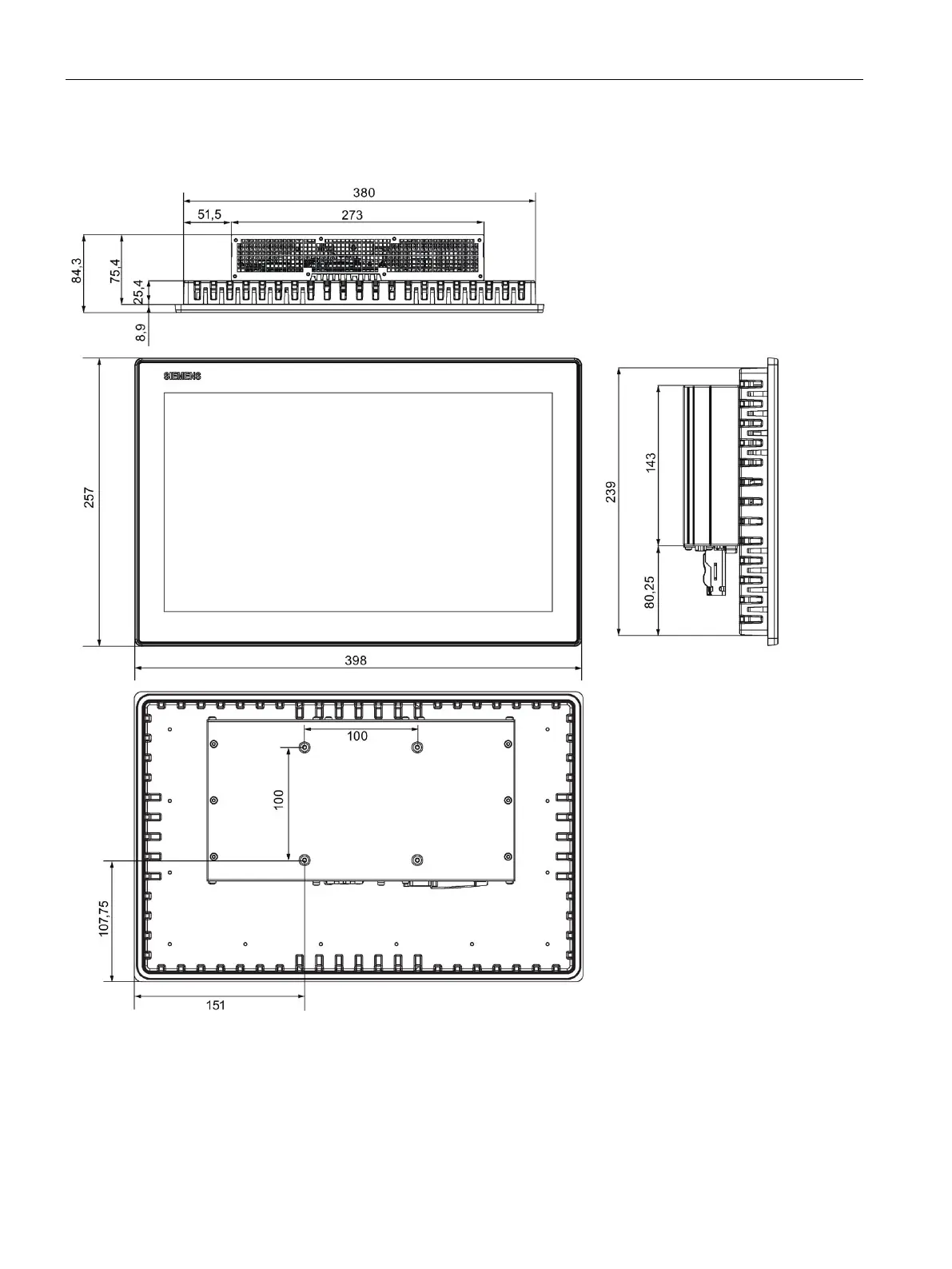

8.3.7 Dimension drawing of 15" multi-touch device
All dimensions in mm.
