Overview
1.2 Configuration of the devices
SIMATIC IPC277E
16 Operating Instructions, 11/2019, A5E35783335-AE

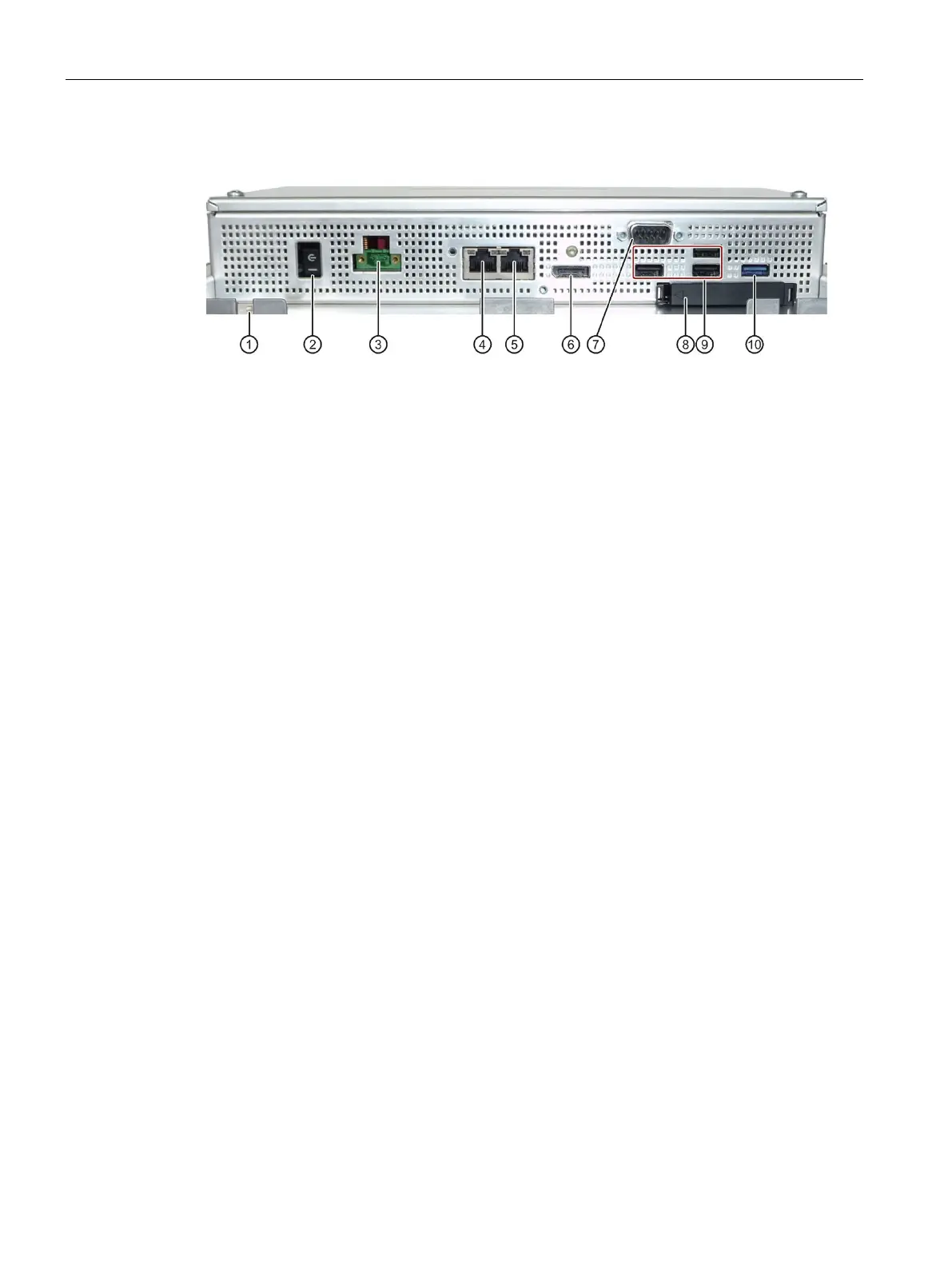

1.2.4 12", 15", and 19" single-touch devices – interfaces and operator controls
Protective conductor connection
On/off switch: OFF position, when the symbol "C-" is pressed in.
Connection for a 24 VDC power supply
RJ45 Ethernet connection 2 for 10/100/1000 Mbps
RJ45 Ethernet connection 1 for 10/100/1000 Mbps
Serial interface, 9-pin D-sub connector
• RS232
• RS422
• RS485
Cover for memory card slot
USB 2.0 port, high current
USB 3.0 port, high current
Observe the printing on the rear of the device.
