Siemens SIMATIC IPC277E - 12, 15, and 19 Multi-Touch Devices - Interfaces and Operator Controls

Overview
1.2 Configuration of the devices
SIMATIC IPC277E
Operating Instructions, 11/2019, A5E35783335-AE
19

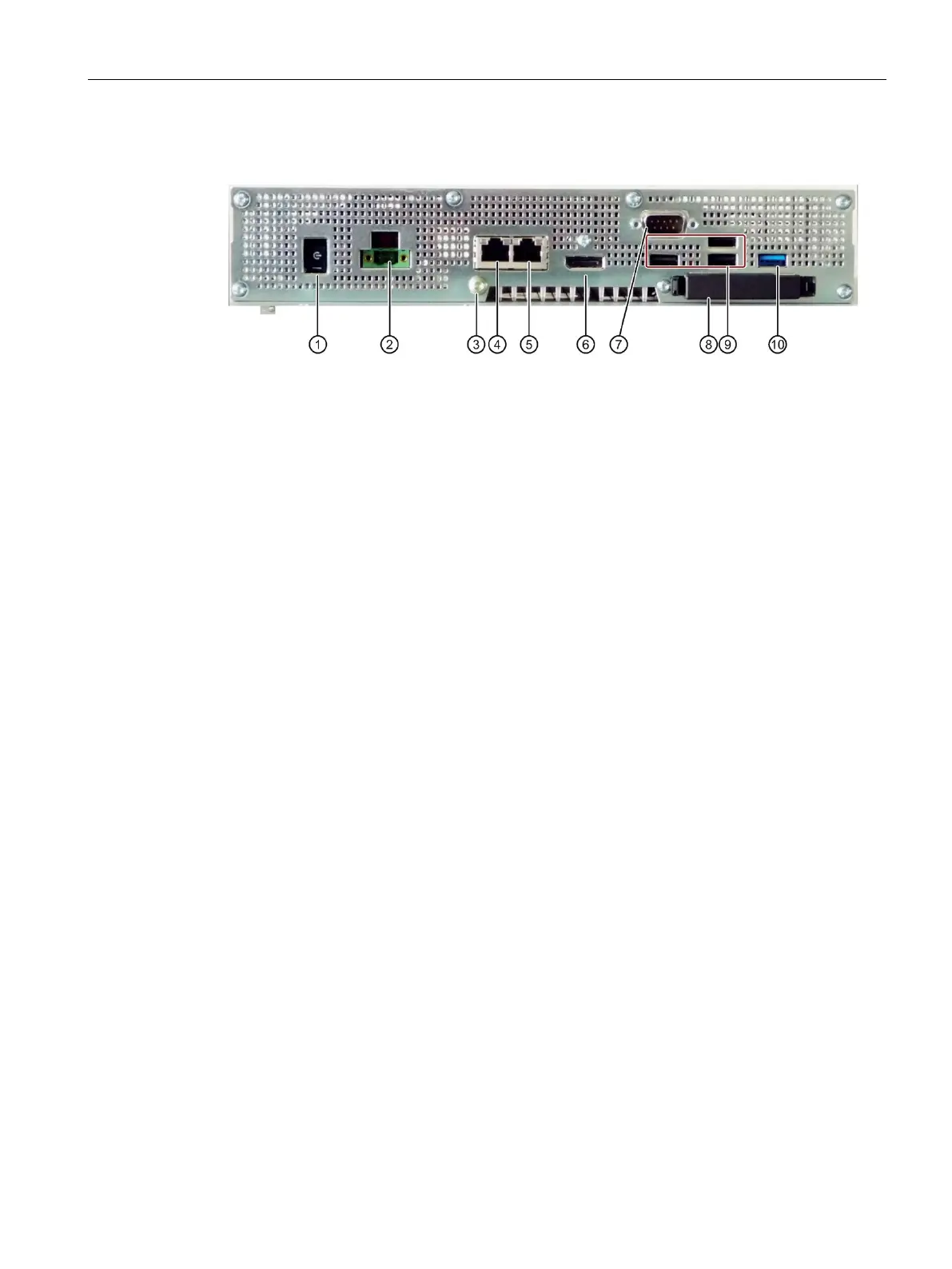

1.2.6 12", 15", and 19" multi-touch devices – interfaces and operator controls
①
On/off switch: OFF position, when the symbol "C-" is pressed in.
②
Connection for a 24 V DC power supply
③
Protective conductor connection
④
RJ45 Ethernet connection 2 for 10/100/1000 Mbps
⑤
RJ45 Ethernet connection 1 for 10/100/1000 Mbps
⑥
DisplayPort connection
⑦
Serial interface, 9-pin D-sub connector
• RS232
• RS422
• RS485
⑧
Cover for memory card slot
⑨
USB 2.0 port, high current
⑩
USB 3.0 port, high current
Observe the printing on the rear of the device.
