Overview
1.2 Configuration of the devices
SIMATIC IPC277E
Operating Instructions, 11/2019, A5E35783335-AE
15

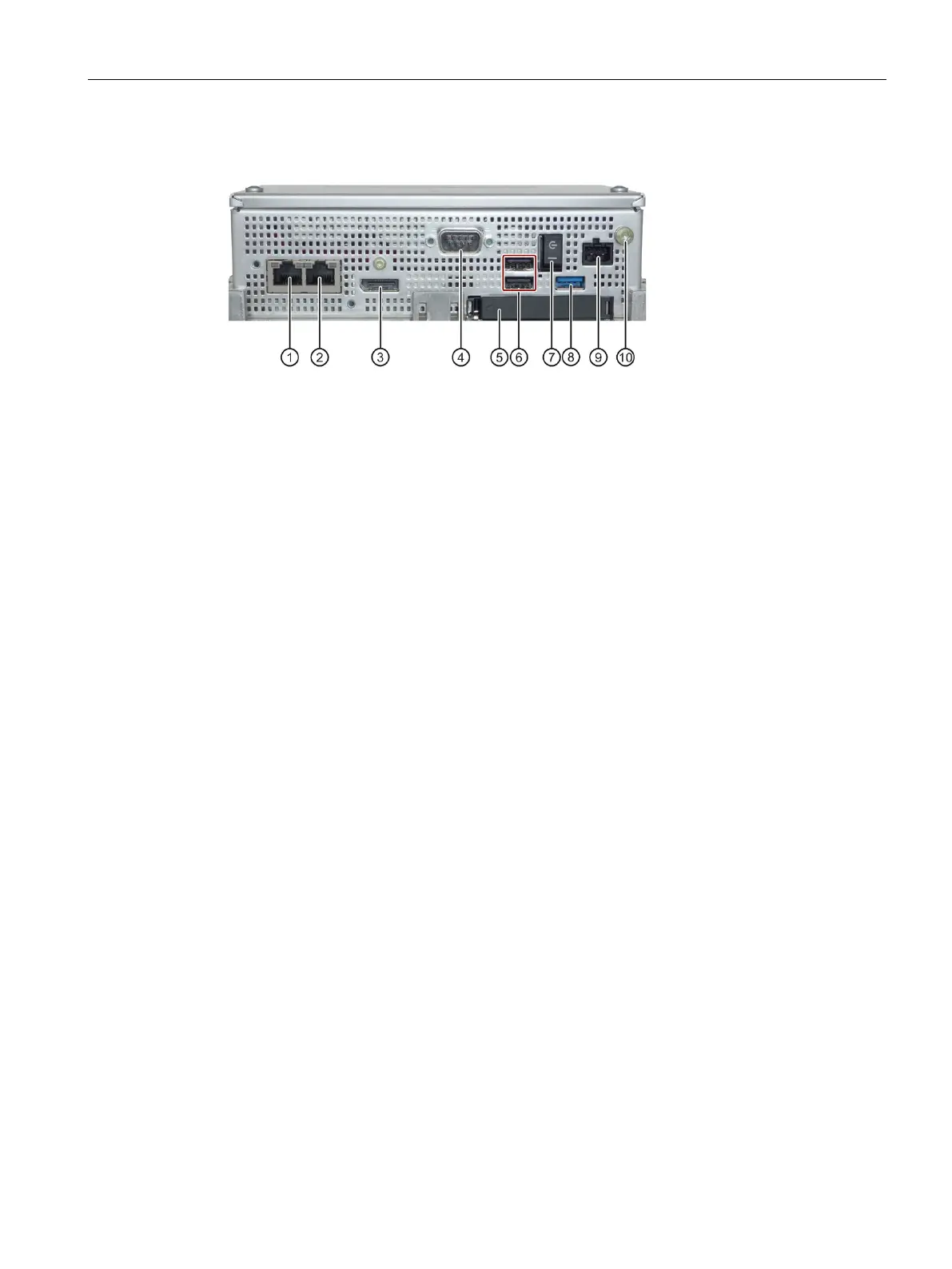

1.2.3 7" and 9" devices – interfaces und operator controls
RJ45 Ethernet connection 2 for 10/100/1000 Mbps
RJ45 Ethernet connection 1 for 10/100/1000 Mbps
Serial interface 9-pin D-sub connector
• RS232
• RS422
• RS485
Cover for memory card slot
USB 2.0 port, high current
On/off switch. OFF position, when the symbol "C-" is pressed in.
USB 3.0 port, high current
Connection for a 24 VDC power supply
Protective conductor connection
Observe the printing on the rear of the device.
