Siemens SIMATIC IPC277E User Manual

Technical specifications
8.5 Hardware description
SIMATIC IPC277E
Operating Instructions, 11/2019, A5E35783335-AE
117

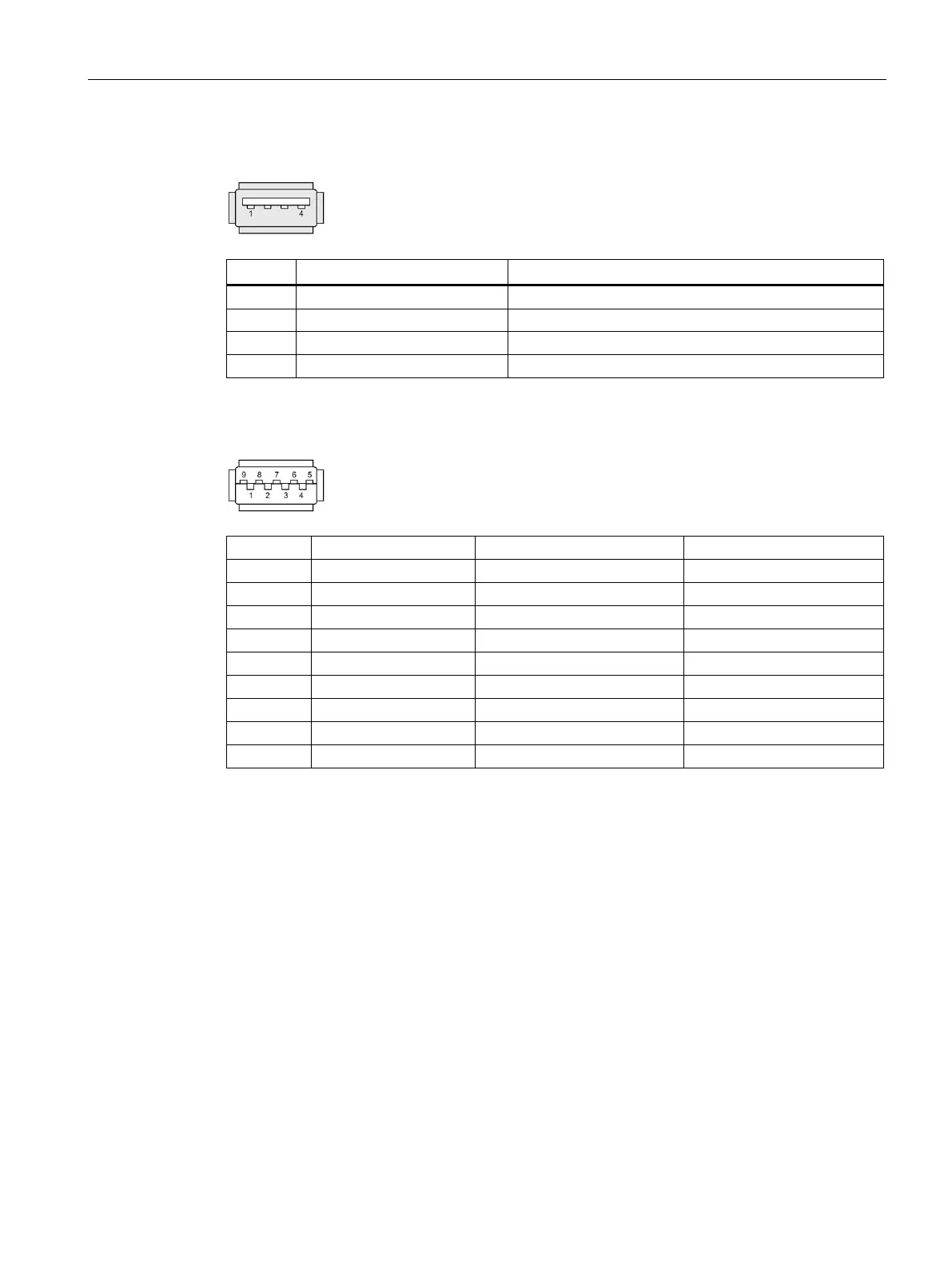

8.5.2.4 USB 2.0 port
Pin
Short description
Meaning
1
USB_P5V_fused (O)
+5 V, fused
2
USB_D0M (I/O)
Data–
3 USB_D0P (I/O) Data+
4
USB_GND
GND
8.5.2.5 USB 3.0 port
Pin
Short name
Meaning
Input / output
1
VBUS
+ 5 V (fused)
Output
2
D-
Data channel USB2
Input / output
3
D+
Data channel USB2
Input / output
4
GND
Ground
–
5
RX-
Data channel USB3
Input
6
RX+
Data channel USB3
Input
7
GND
Ground
–
8
TX-
Data channel USB3
Output
9
TX+
Data channel USB3
Output
