Siemens SIMATIC IPC277E User Manual

Installing and connecting the device
3.2 Installing the device
SIMATIC IPC277E
Operating Instructions, 11/2019, A5E35783335-AE
41
3.2.2 Secure with mounting clips

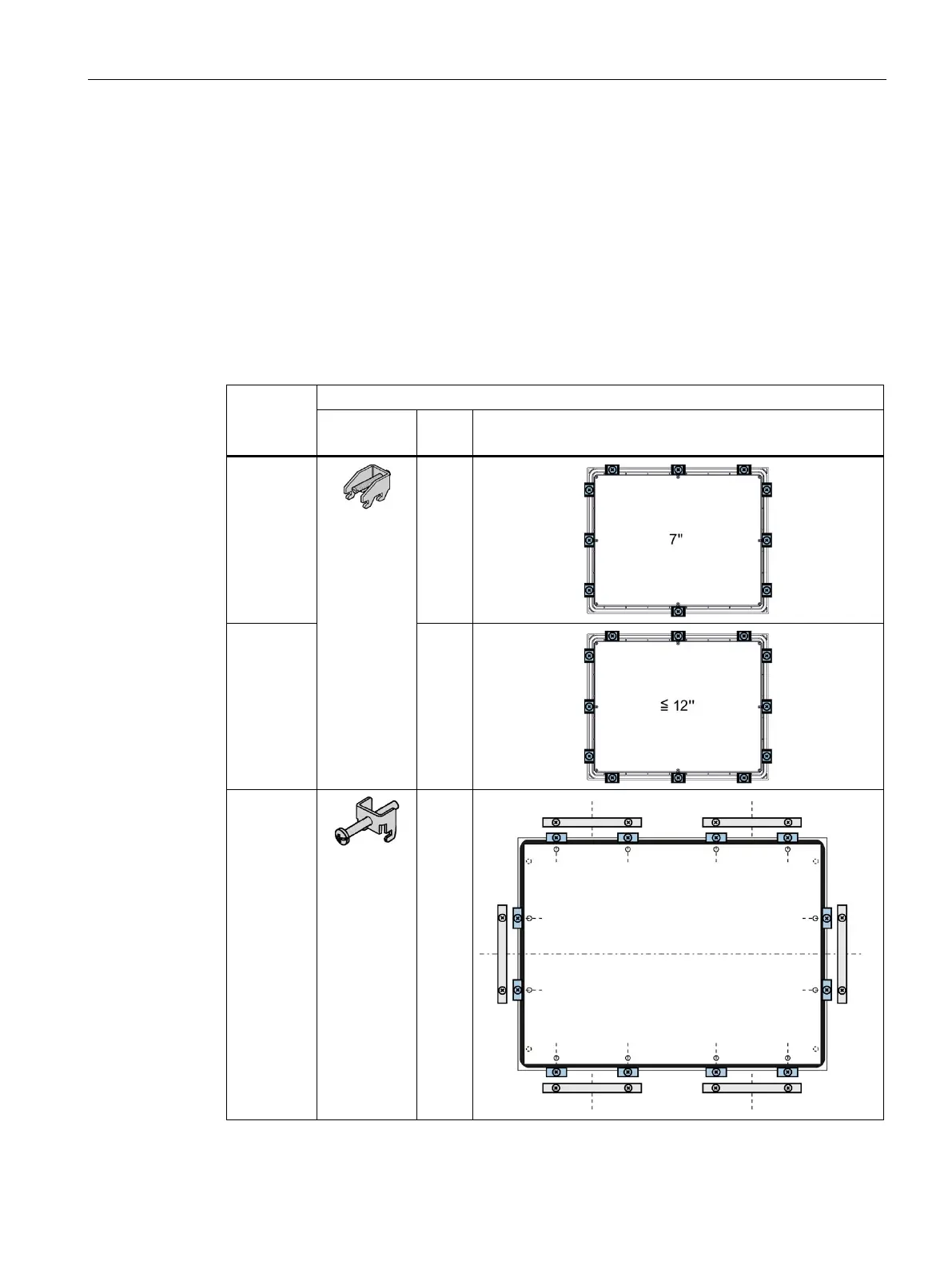

Positions of the mounting clips
To achieve the degree of protection for the HMI device, the positions for the mounting clips
shown below must be adhered to.
The positions of the mounting clips are marked by stamps on the cutouts. Fit the mounting
clips in all the stamped cutouts.
The following table shows the type, number, and position of the mounting clips needed for
the respective HMI devices.
HMI device
Mounting clips
Type
Quan-
tity
Position on the HMI device
7" display
10
9" display
12" display
12
15" display
19" display
12
