Technical specifications
8.3 Dimension drawings
SIMATIC IPC277E
Operating Instructions, 11/2019, A5E35783335-AE
99

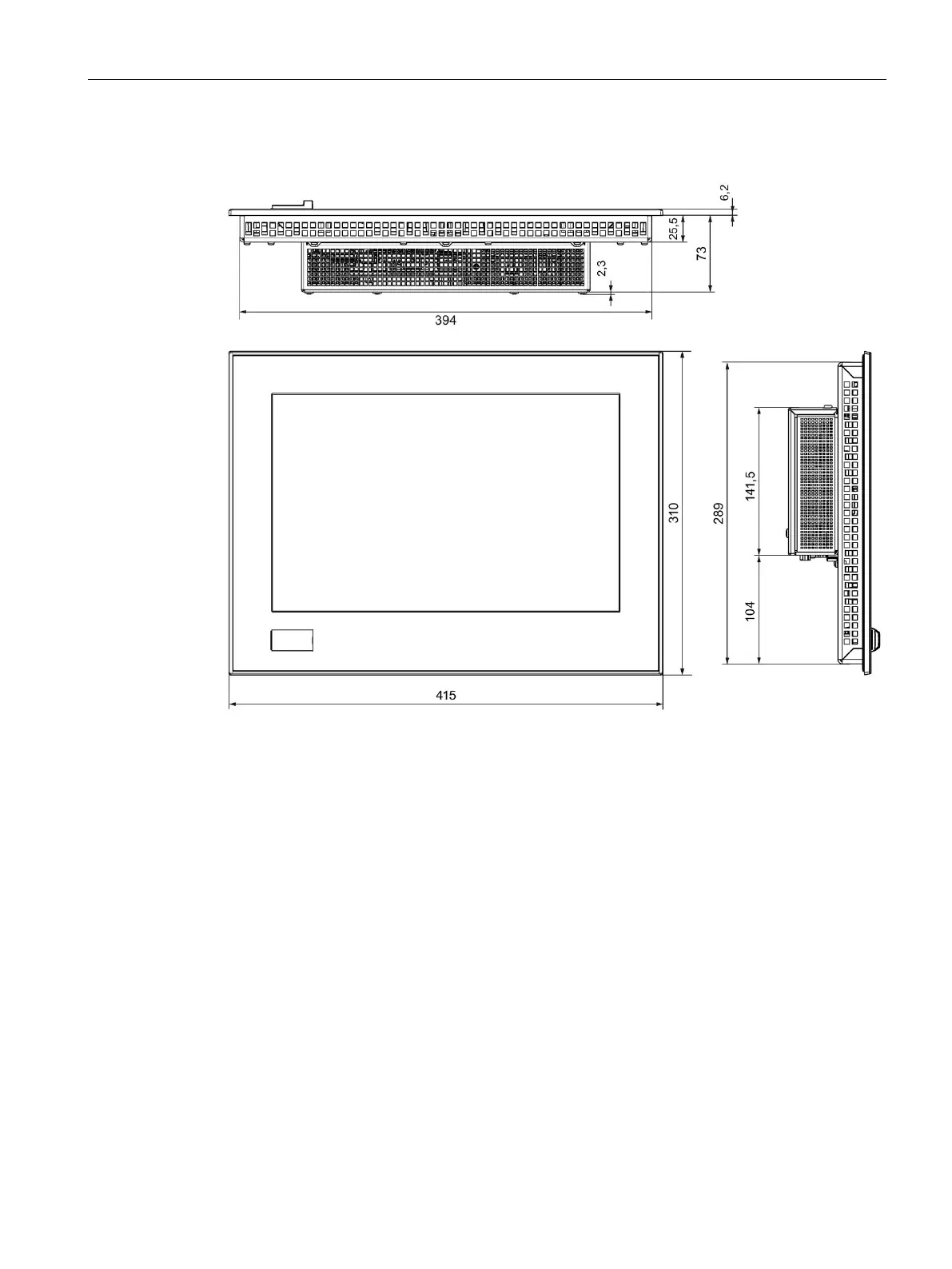

8.3.4 Dimension drawing of 15" single-touch device
all dimensions in mm
