Installing and connecting the device
3.3 Connecting the device
SIMATIC IPC277E
58 Operating Instructions, 11/2019, A5E35783335-AE

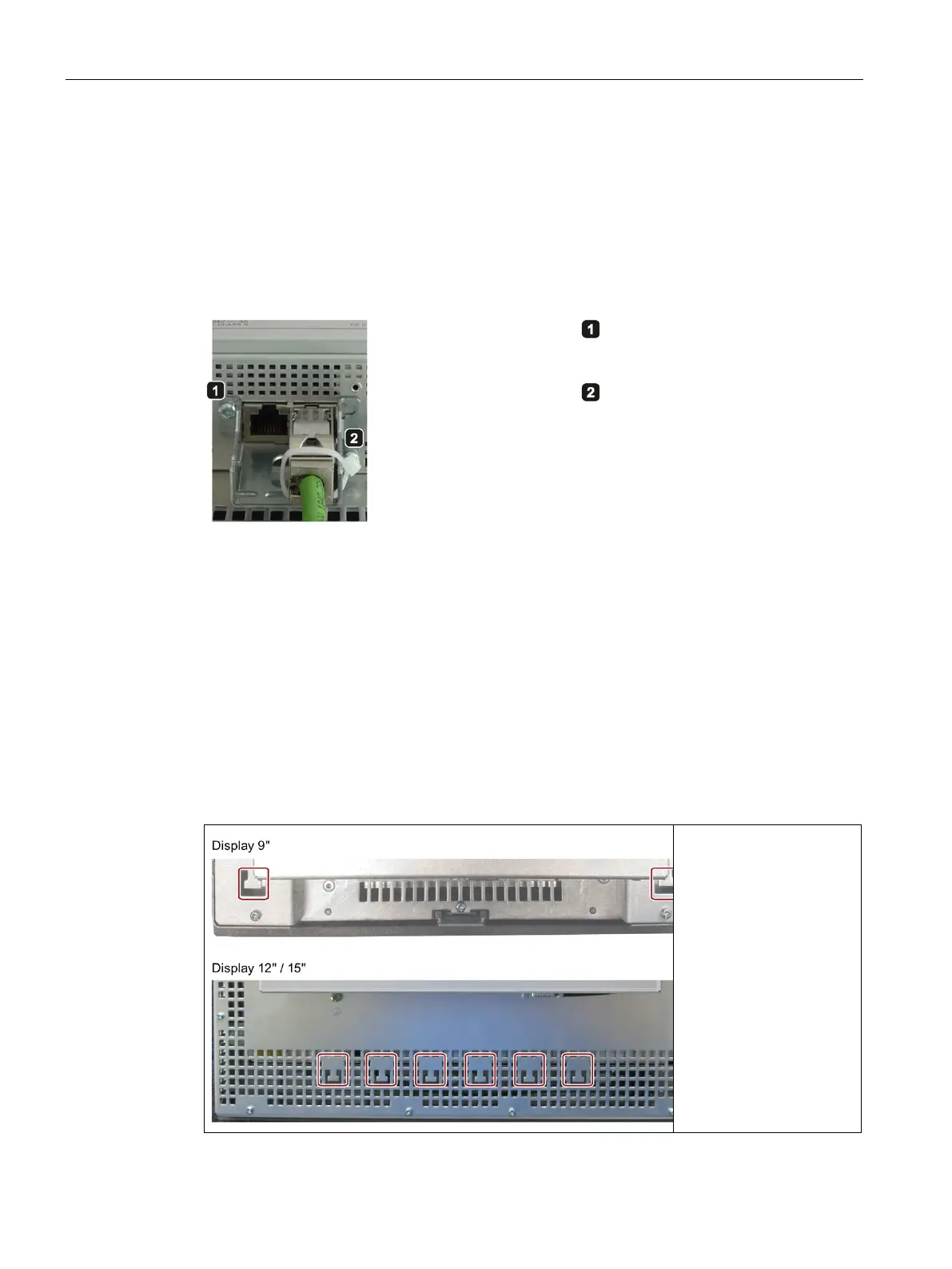

3.3.6 Mounting the Ethernet connector strain relief
The Ethernet connector strain relief safely prevents the unintentional disconnection of the
Ethernet connectors from the device. The Ethernet connector strain relief is included with the
device.
Procedure
Screw the Ethernet connector
strain relief to the bottom of the
enclosure.
Secure the Ethernet connectors
using
cable ties.
3.3.7 Securing cables
On the rear panel of the devices, you will find fastening eyelets for cable ties for strain relief
of the following connecting cables:
● Power supply cable
● RS232 cable
● USB cables
Procedure for single-touch device
Secure the connecting
cables with cable ties at the
points marked.
