Installing and connecting the device
3.2 Installing the device
SIMATIC IPC277E
Operating Instructions, 11/2019, A5E35783335-AE
43
3.2.3 Mounting the device with mounting brackets
If there are strict requirements for the front seal, it may be necessary to fasten the device
with mounting brackets in a cabinet. You can secure each device with 6 mounting brackets.
The mounting brackets are available as accessories. You can find ordering information in the
section Accessories (Page 20).
Requirement
● All packaging components and protective films have been removed from the device.
● The accessory mounting brackets are available.
● 2.5 mm hexagonal spanner
Procedure
Note
If the mounting seal is damaged or protrudes over the device, the degree of protection is not
guaranteed.

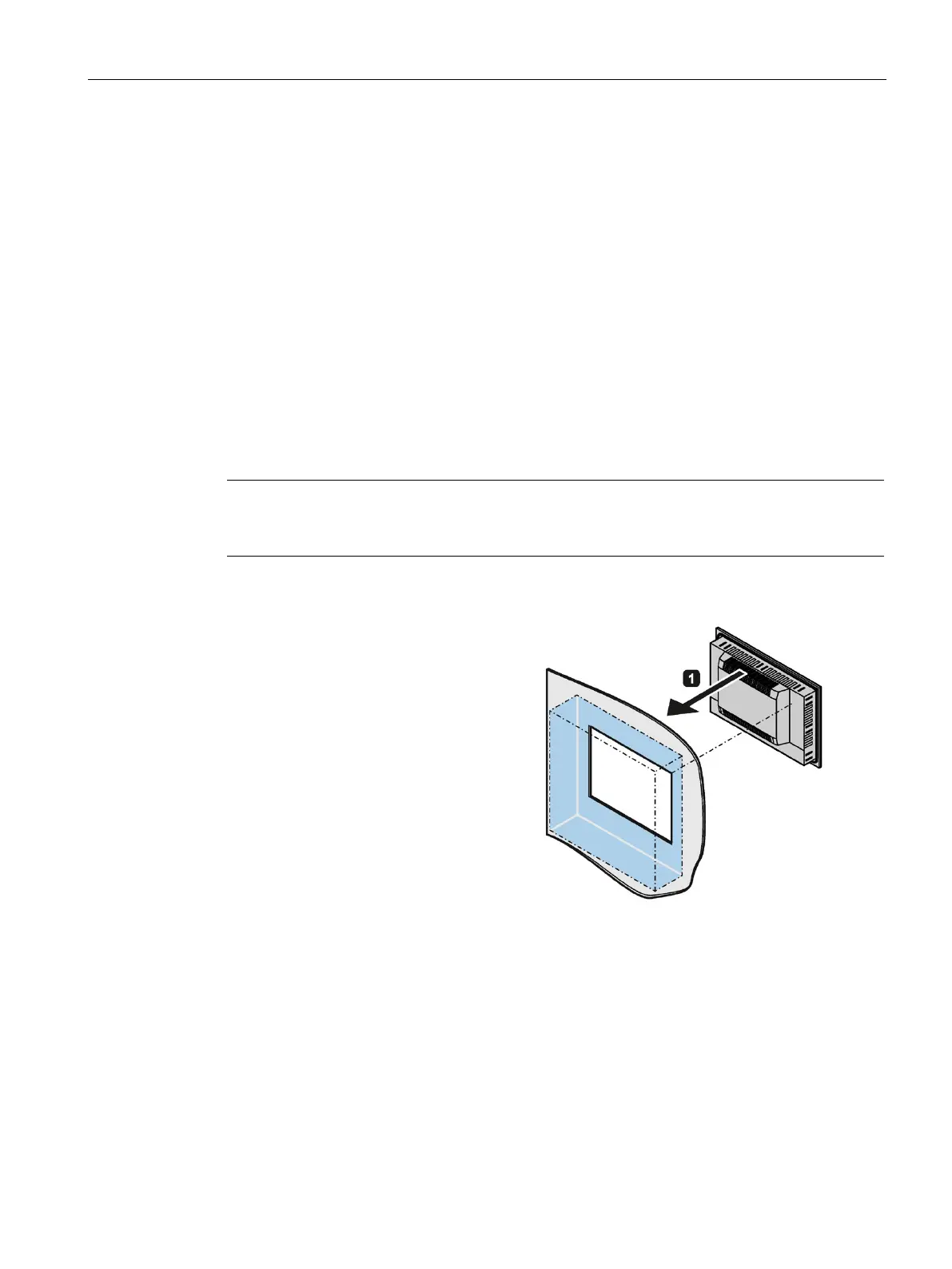

Working from the front, insert the device
into the mounting cut
-out.
