Overview
1.2 Configuration of the devices
SIMATIC IPC277E
14 Operating Instructions, 11/2019, A5E35783335-AE

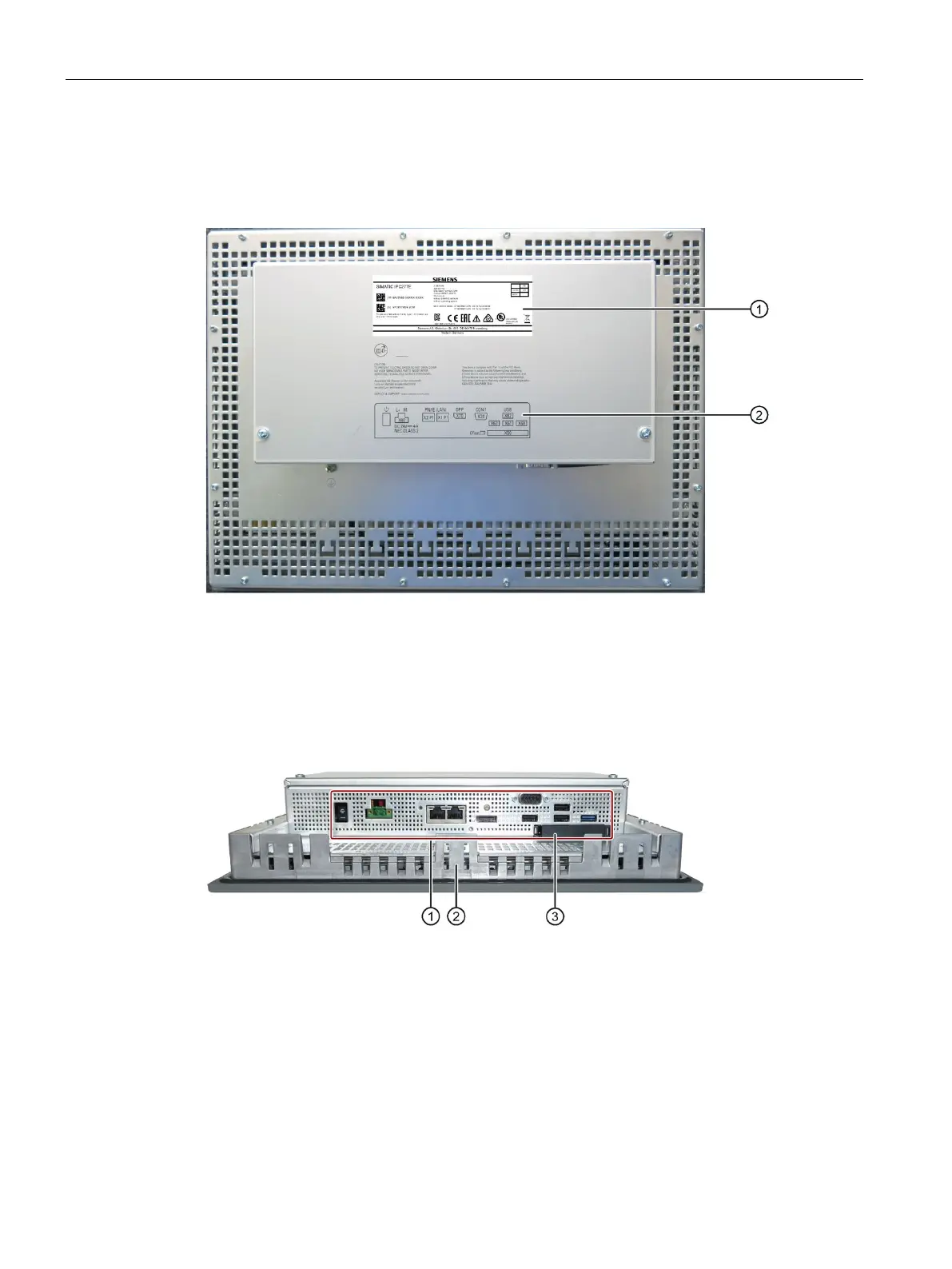

Rear view
This section describes the configuration of the 15" and 19" devices using the 15" display as
an example.
Bottom view
This section describes the configuration of the 15" and 19" devices using the 15" display as
an example.
Interfaces and operator controls
Recesses for mounting clips
Flap for memory card slot
