Device expansion and parameter assignment
6.1 Open the device.
SIMATIC IPC277E
74 Operating Instructions, 11/2019, A5E35783335-AE

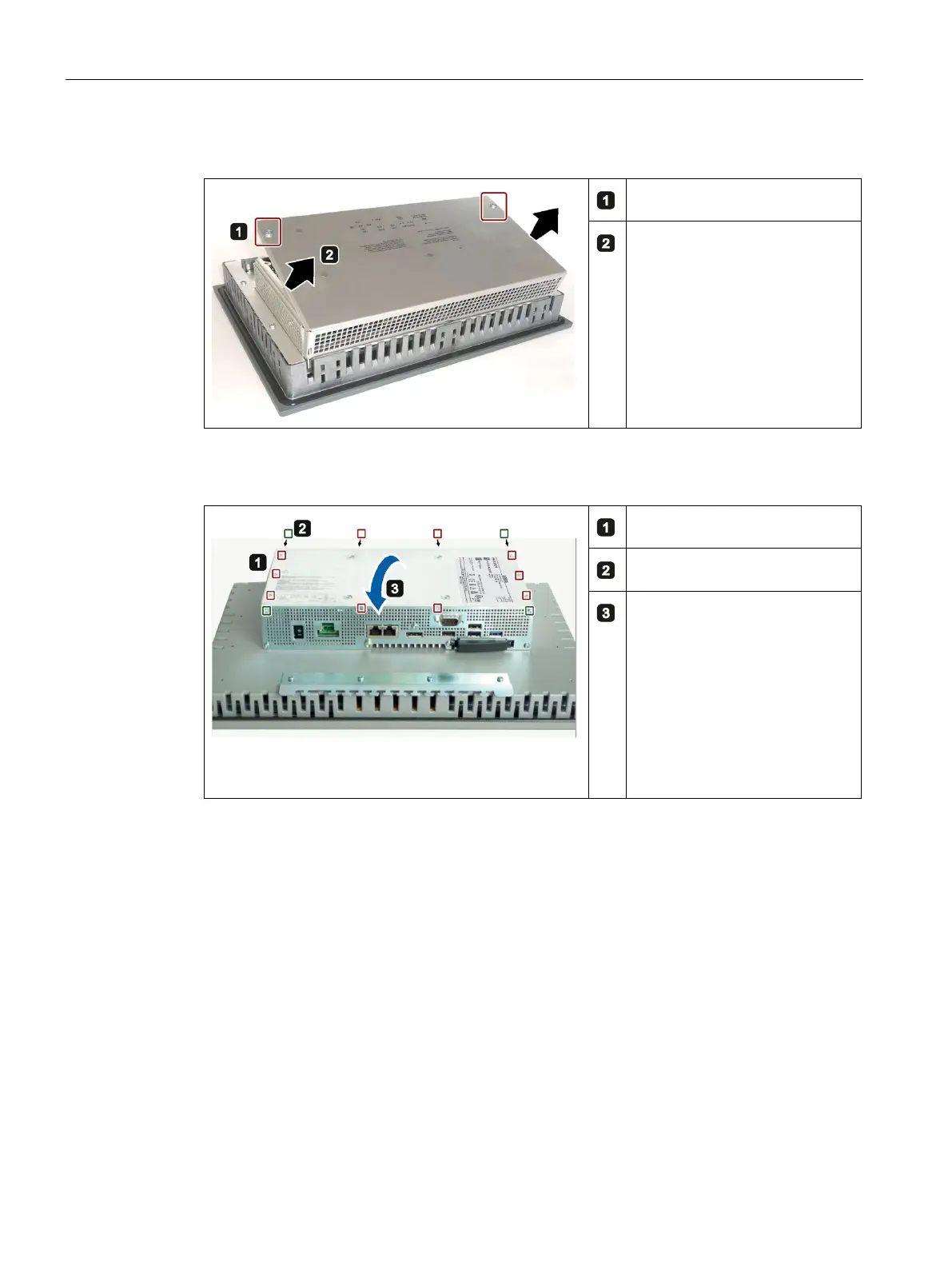

Procedure – Opening the 12", 15" and 19" single-touch devices
Remove the marked screws
Open the device cover at the back
and set it and the drive vertically
against the device wall. Prop up
the device cover.
: Connection plug and board
could be damaged.
• Ensure that the device cover
does not fall down.
• Remove the connection plug
from the drive.
Procedure – Opening the multi-touch device
Remove the screws marked in red.
Loosen the screws marked in
green.
Open the device cover at the front
and set it and the drive vertically
against the device wall. Prop up
the device cover.
: Connection plug and board
could be damaged.
• Ensure that the device cover
does not fall down.
• Remove the connection plug
from the drive.
Procedure - closing the device.
Close the device in reverse order.
