Device expansion and parameter assignment
6.2 Installing and removing CFast cards
SIMATIC IPC277E
76 Operating Instructions, 11/2019, A5E35783335-AE
Requirement
● The device is switched off.
● SIMATIC IPC CFast card that is approved for industrial applications.
Procedure
Installation
If you are using the memory card in a device installed in a system, you must observe the
safety regulations for work on electrical systems.
Insert the CFast card into the slot, working carefully and without applying excess force.
Release the lock of the cover.
Push against the cover in the direction
indicated. Open the cover completely.

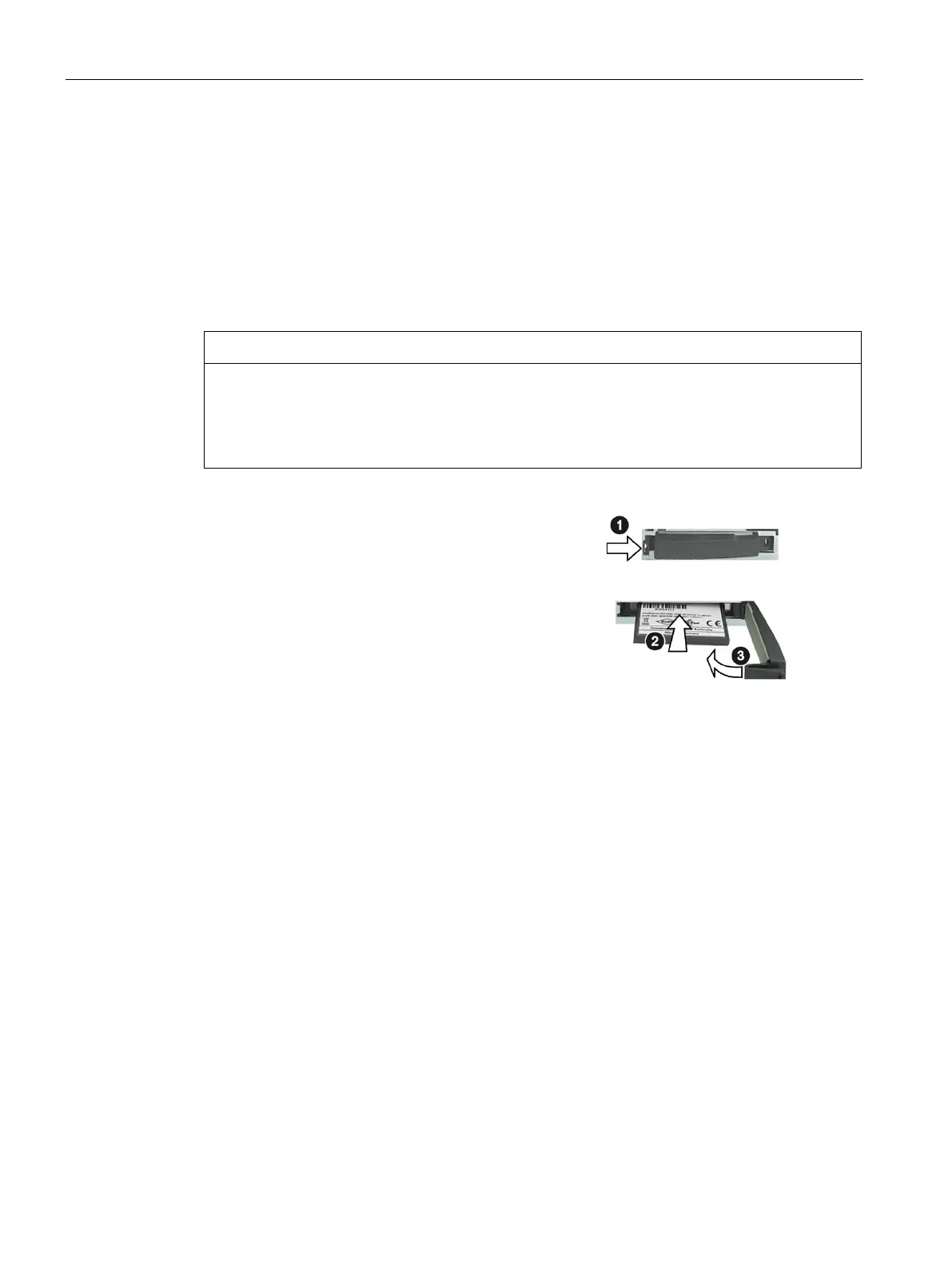

Insert the CFast card into the slot as
sho
wn in the figure.
Push CFast card into the slot until it
snaps into place (ball
-point pen mecha-
Similar to figure
Close and lock the cover.
Removal
Remove the CFast card from the memory slot by pushing it in until it is ejected by about 5
mm (ball-point pen mechanism).
Proceed in reverse order.
