Configuring with Web Based Management
5.5 "System" menu
SCALANCE W760/W720 to IEEE 802.11n Web Based Management
124 Configuration Manual, 11/2014, C79000-G8976-C350-03

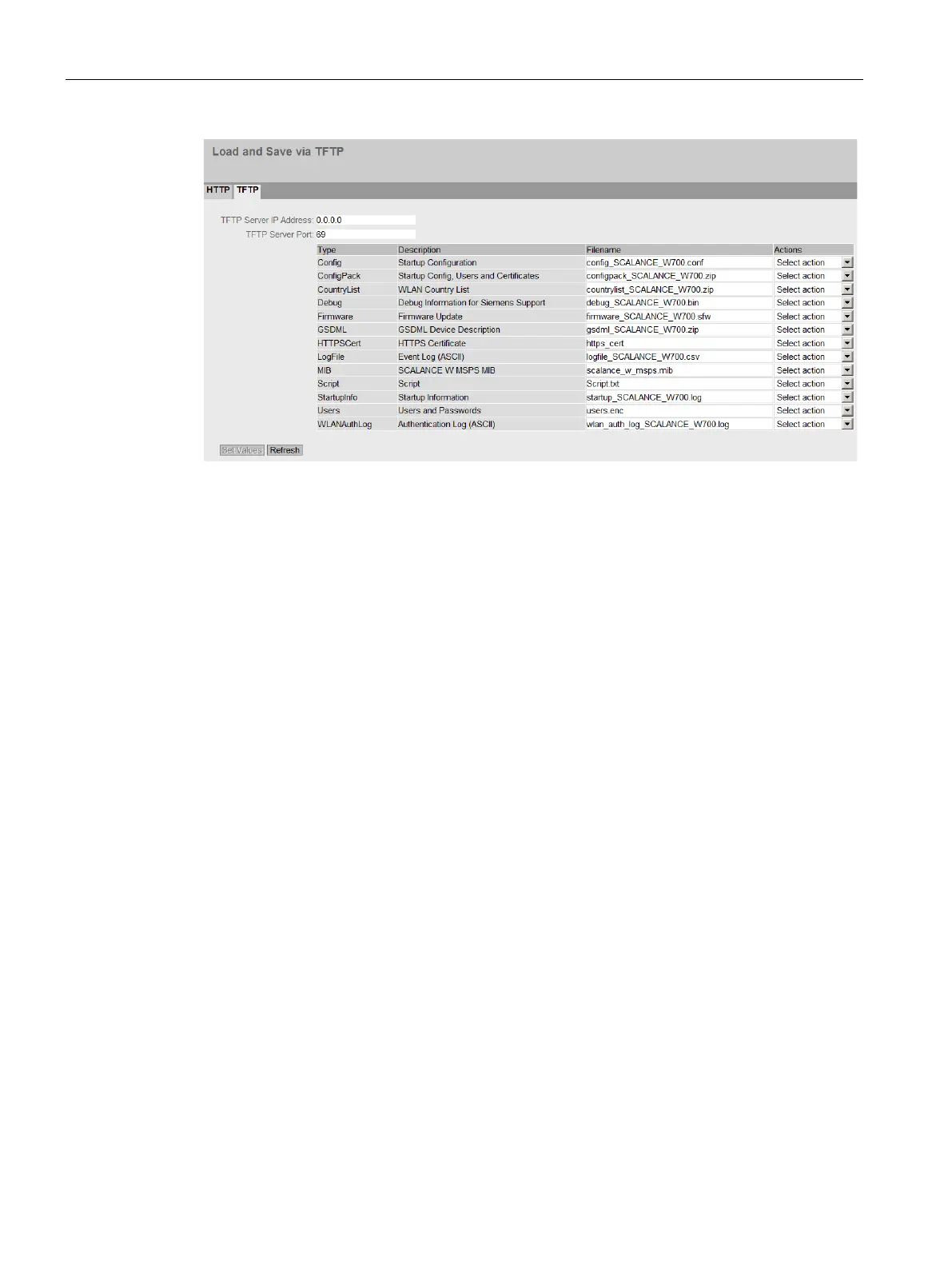

The page contains the following boxes:
●
Input box "TFTP Server IP Address"
Here, enter the IP address of the TFTP server with which you exchange data.
●
Here, enter the port of the TFTP server over which data exchange will be handled. If
necessary, you can change the default value 69 to your own requirements.
The table has the following columns:
●
Shows the file type.
●
Shows the short description of the file type.
●
Enter a file name.
●
Select the action from the drop-down list. The selection depends on the selected file type,
for example the log file can only be saved.
The following actions are possible:
–
With this selection, you save a file on the TFTP server.
–
With this selection, you load a file from the TFTP server.
