Siemens SIMATIC NET SCALANCE W721-1 User Manual

Configuring with Web Based Management
5.4 "Information" menu
SCALANCE W760/W720 to IEEE 802.11n Web Based Management
Configuration Manual, 11/2014, C79000-G8976-C350-03
77
5.4.8
Ethernet Statistics
5.4.8.1
Interface statistics
Interface statistics
The page shows the statistics from the interface table of the Management Information Base
(MIB).

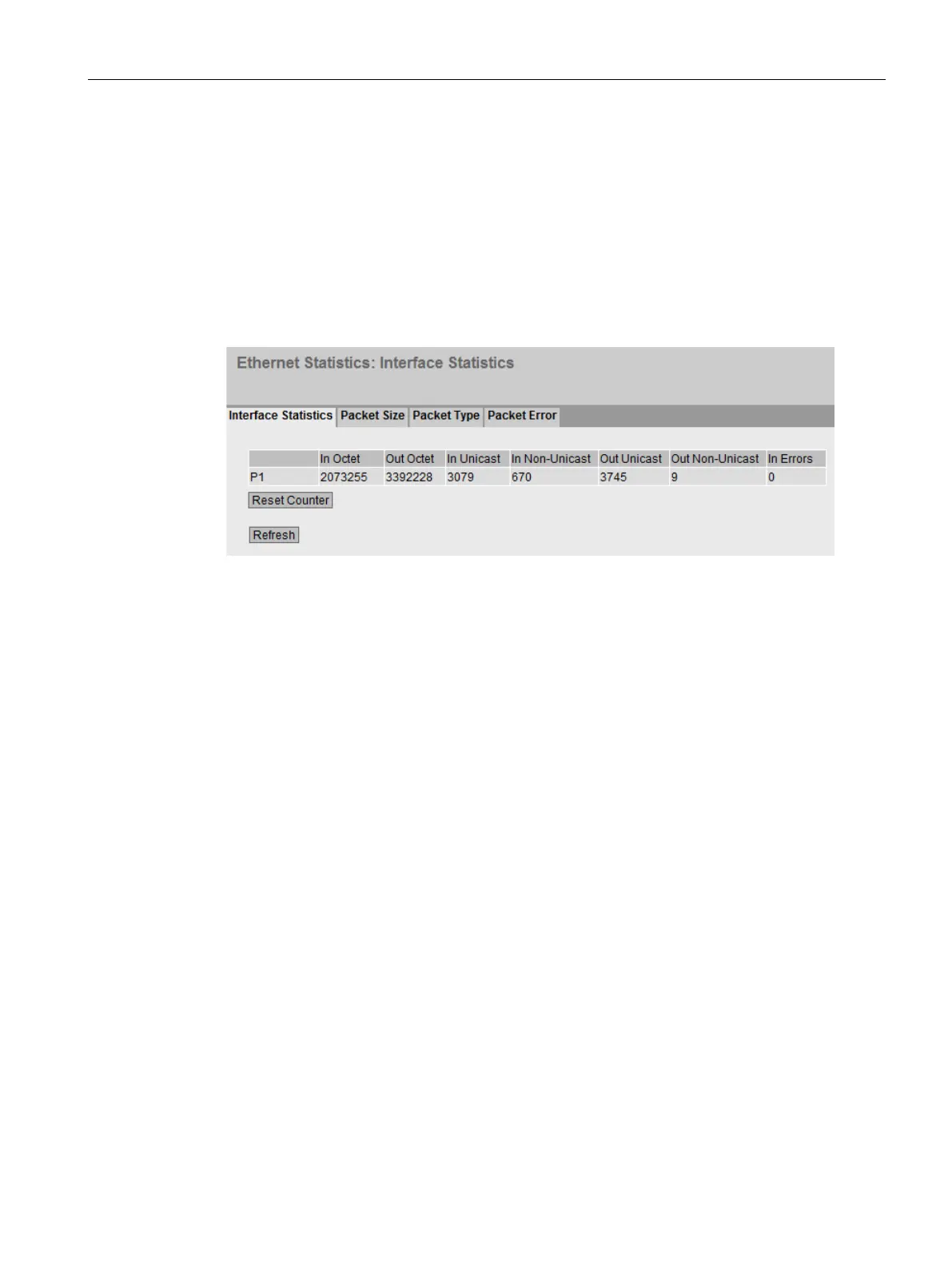

Figure 5-1 Interface statistics
Displayed values
The table has the following columns:
●
In Octet
Shows the number of received bytes.
●
Out Octet
Shows the number of sent bytes.
●
In Unicast
Shows the number of received unicast frames.
●
In Non-Unicast
Shows the number of received frames that are not of the type unicast.
●
Out Unicast
Shows the number of sent unicast frames.
●
Out Non-Unicast
Shows the number of sent frames that are not of the type unicast.
●
In Errors
Shows the number of all possible RX errors, refer to the "Packet Error" tab.
