Configuring with Web Based Management
5.5 "System" menu
SCALANCE W760/W720 to IEEE 802.11n Web Based Management
Configuration Manual, 11/2014, C79000-G8976-C350-03
129
●
The device writes an entry to the system log server. This is only possible if the system log
server is set up and the "Syslog client" function is enabled.
●
The device triggers a fault. The error LED lights up
Follow the steps below to change entries:
1. Select the check box in the row of the required event. Select the event in the column
under the following actions:
– E-mail
– Trap
– Log table
– Syslog
– Fault
2. Click the "Set Values" button.

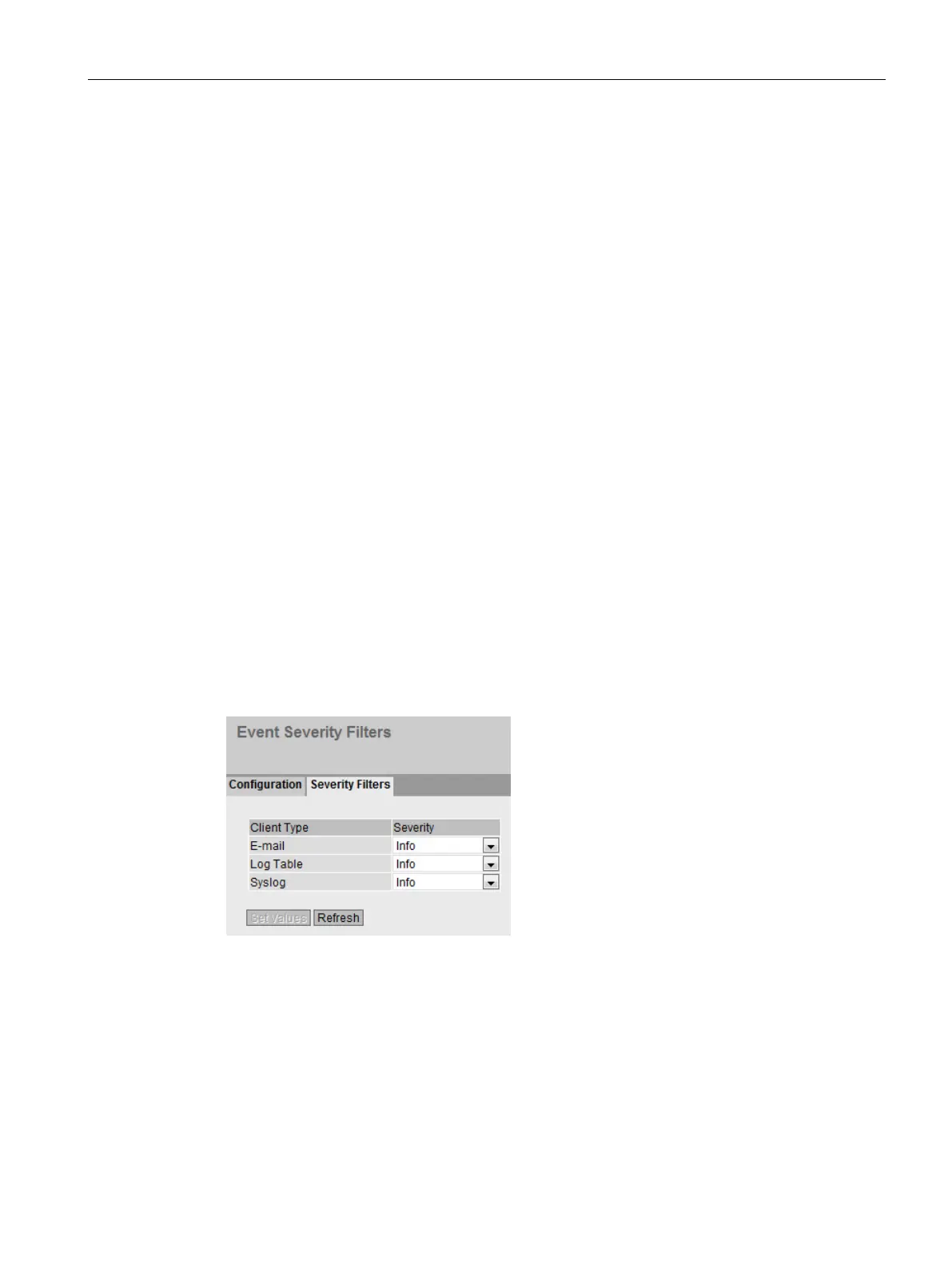

Severity
Setting the severity filter
On this page, set the threshold levels for sending system event notifications.
The first table column shows the client type for which you are making the settings:
●
Sending system event messages by e-mail
●
Entry of system events in the log table
●
Entry of system events in the Syslog file
