Configuring with Web Based Management
5.3 "Wizard" menu
SCALANCE W760/W720 to IEEE 802.11n Web Based Management
48 Configuration Manual, 11/2014, C79000-G8976-C350-03
●
If you select the "User defined" entry for the "Antenna Type", enter the antenna gain
manually in the "dBi" unit.
– Antenna Gain 2.4 GHz [dBi]
Here, enter the antenna gain the antenna has in the 2.4 GHz frequency band.
– Antenna Gain 5 GHz [dBi]
Here, enter the antenna gain the antenna has in the 5 GHz frequency band.
●
Enter the length of the flexible antenna connecting cable in meters between the device
and the external antenna.
●
Additional Attenuation [dB]
Here, specify the additional attenuation caused, for example, by an additional splitter.
Note
If you use other WLAN interfaces, make sure that you have adequate channel spacing.
Radio Settings
Introduction

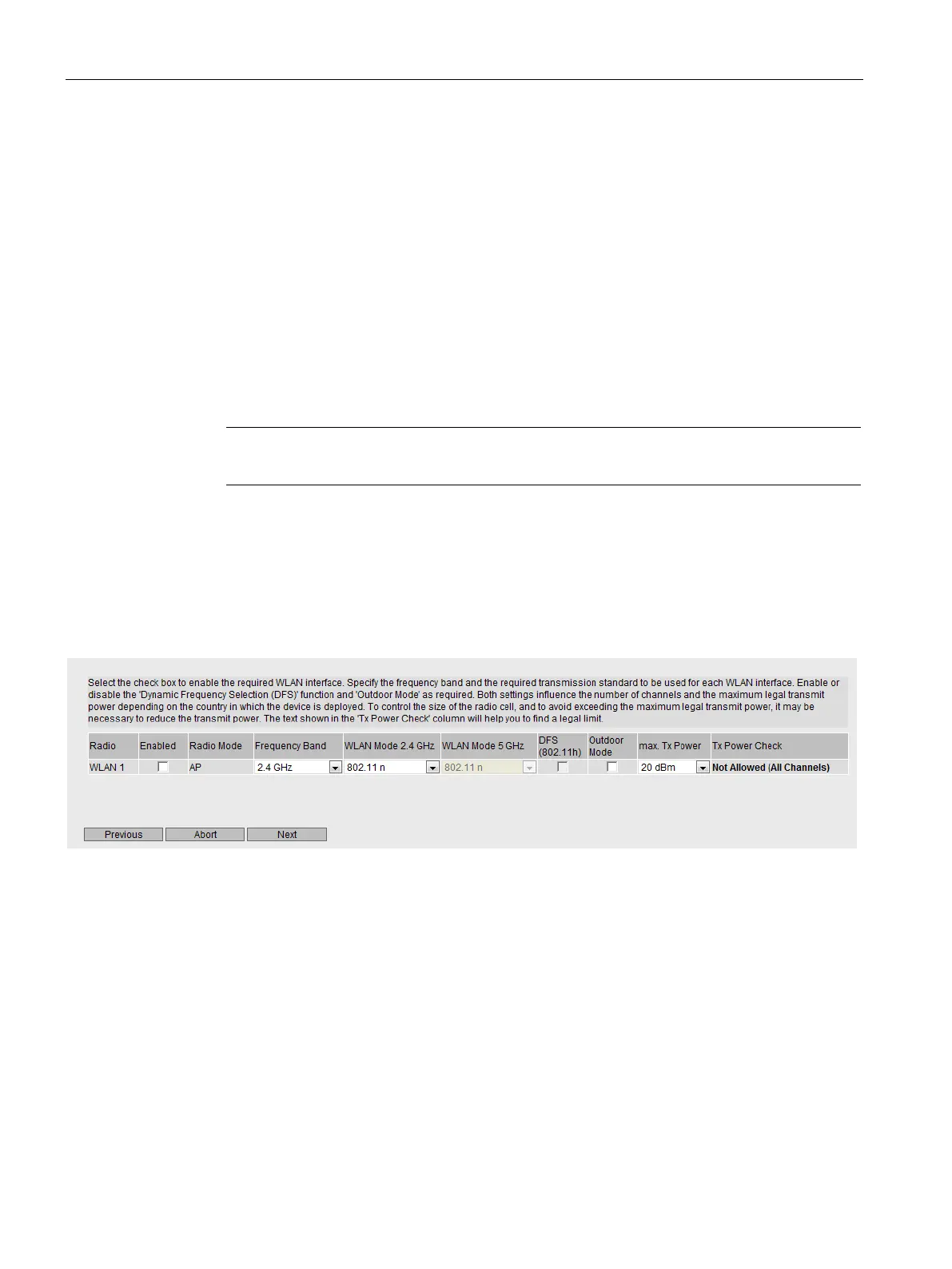

On this Basic Wizard page, you specify the configuration for the WLAN interface.
This table contains the following columns:
●
Shows the available WLAN interface.
●
Enable or disable the WLAN interface. The WLAN interface is disabled when the device
is supplied.
●
Shows the mode of the WLAN interface.
●
Specify the frequency band.
To Next Page
