Configuring with Web Based Management
5.7 "Layer 2" menu
SCALANCE W760/W720 to IEEE 802.11n Web Based Management
Configuration Manual, 11/2014, C79000-G8976-C350-03
207
CIST Port

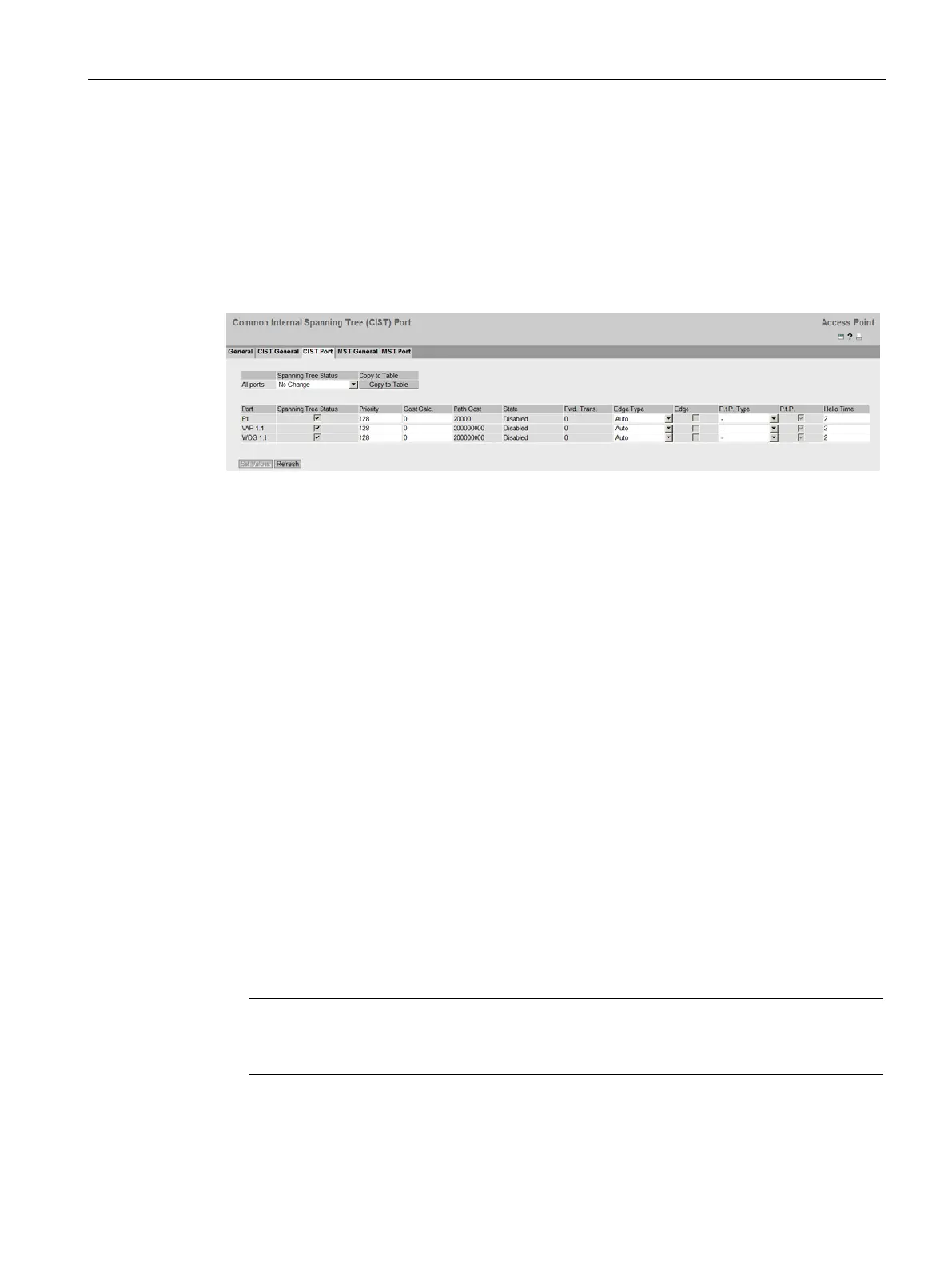

MSTP-CIST port configuration
When the page is called, the table displays the current status of the configuration of the port
parameters.
To configure them, click the relevant cells in the port table.
Table 1 has the following columns:
●
Shows that the settings made in this table will be adopted for all ports of table 2 after
clicking the "Copy to Table" button.
●
In the drop-down list, select the setting for all ports. If "No Change" is selected, the entries
of the corresponding column in table 2 remain unchanged.
●
If you click the button, the settings are adopted for all ports of table 2.
Table 2 has the following columns:
●
Shows all available ports and the following interfaces.
– Port X
– WLAN X
– VAP X.Y
– WDS X.Y
●
Specify whether the port is integrated in the spanning tree or not.
Note
If you disable the "Spanning Tree" option for a port, this may cause the formation of
loops. The topology must be kept in mind.
