Configuring with Web Based Management
5.6 "Interfaces" menu
SCALANCE W760/W720 to IEEE 802.11n Web Based Management
Configuration Manual, 11/2014, C79000-G8976-C350-03
167
Ports Overview

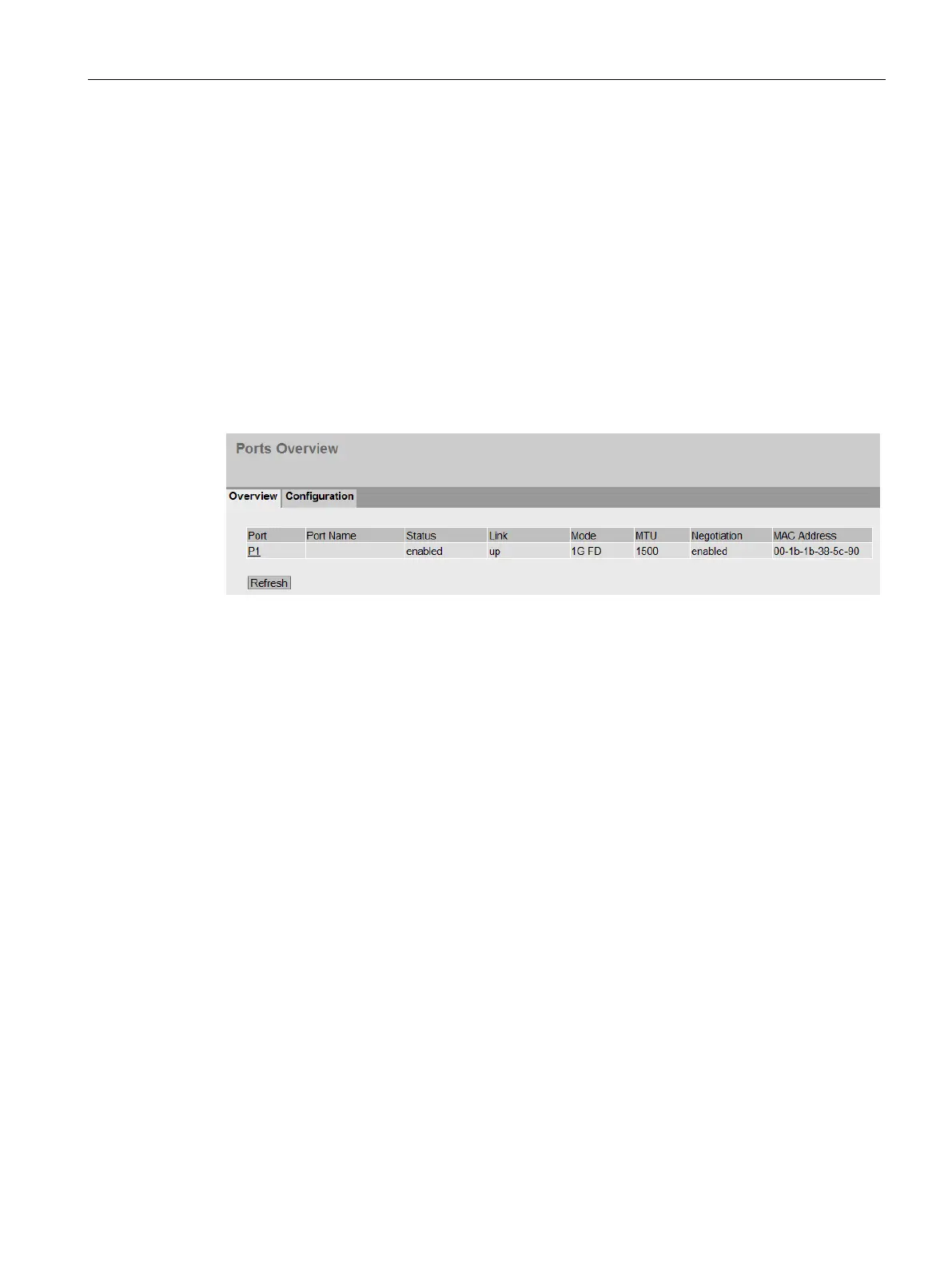

Overview of the port configuration
The page shows the configuration for the data transfer for all ports of the device. You cannot
configure anything on this page.
The table has the following columns:
●
Shows the configurable ports. If you click on the link, the corresponding configuration
page is opened.
●
Shows the name of the port.
●
Shows whether the port is on or off. Data traffic is possible only over an enabled port.
●
Shows the connection status to the network. With the connection status, the following is
possible:
– Up
The port has a valid link to the network, a link integrity signal is being received.
– Down
The link is down, for example because the connected device is turned off.
●
Shows the transfer parameters of the port.
●
MTU (Maximum Transmission Unit)
Shows the packet size.
