Configuring with Web Based Management
5.7 "Layer 2" menu
SCALANCE W760/W720 to IEEE 802.11n Web Based Management
200 Configuration Manual, 11/2014, C79000-G8976-C350-03
1. Enter an ID in the "VLAN ID" input box.
2. Click the "Create" button. A new entry is generated in the table. As default, the boxes
have "-" entered.
3. Enter a name for the VLAN under Name.
4. Specify the use of the port in the VLAN. If, for example you select M , the port is a
member of the VLAN. The frame sent in this VLAN is forwarded with the corresponding
VLAN tag.
5. Specify the mode of the device.
6. Click the "Set Values" button.

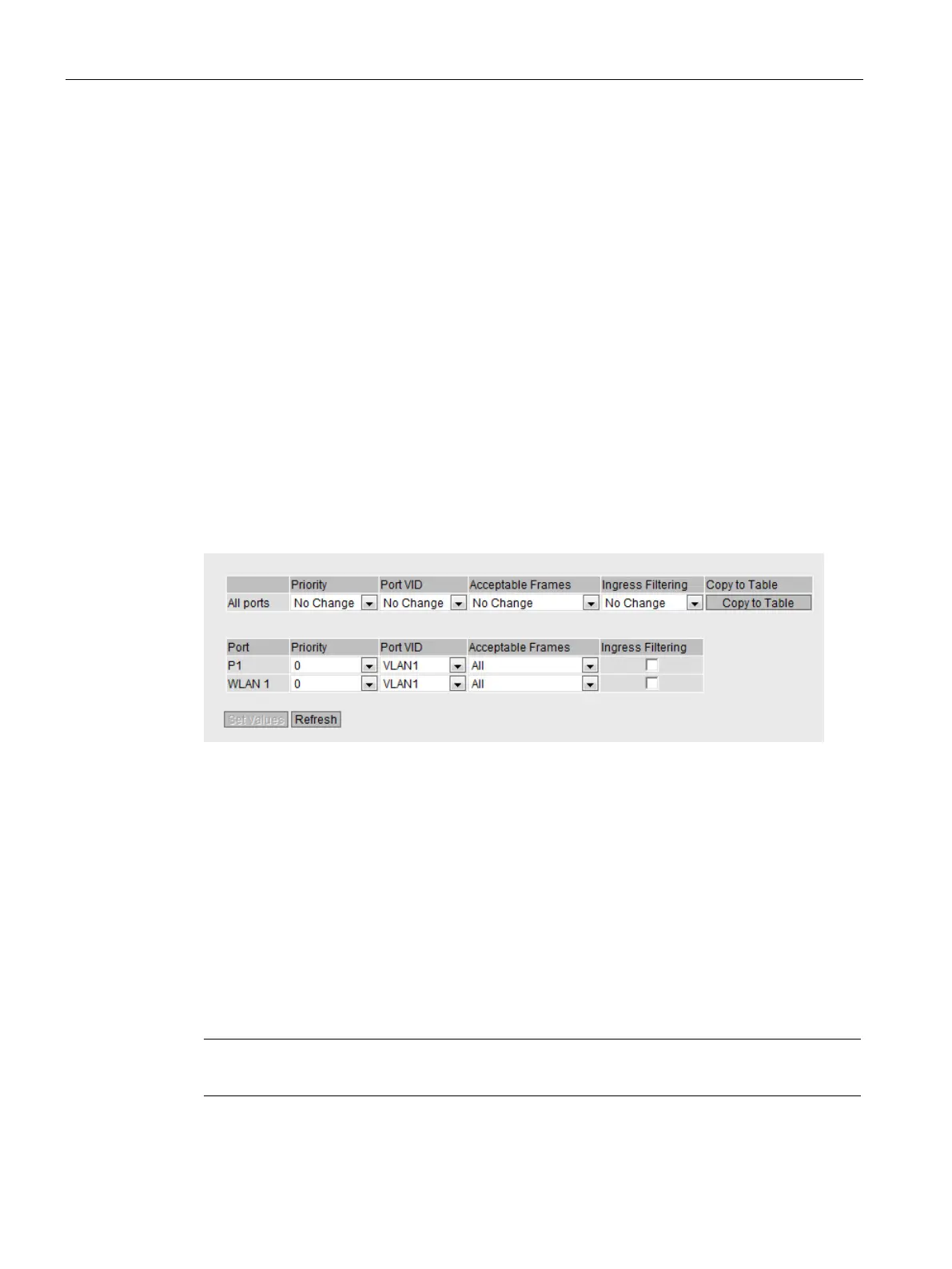

Port Based
Processing received frames
On this page, you specify the configuration of the port properties for receiving frames.
Table 1 has the following columns:
●
All portsshows that the settings made in this table will be adopted for all ports of table 2
after clicking the "Copy to Table" button.
●
Columns Priority / Port VID / Acceptable Frames / Ingress Filtering
Select the setting for all ports in the drop-down list. If "No Change" is selected, the entries
of the corresponding column in table 2 remain unchanged.
●
If you click the button, the settings are adopted for all ports of table 2.
Note
Table 2 is only available if at least one VLAN is configured.
