Description
2.1 Network structures
SCALANCE W760/W720 to IEEE 802.11n Web Based Management
14 Configuration Manual, 11/2014, C79000-G8976-C350-03
Wireless Distribution System (WDS)
WDS allows direct links between access points and or between access points and other
WDS-compliant devices. These are used to create a wireless backbone or to connect an
individual access point to a network that cannot be connected directly to the cable
infrastructure due to its location.
Two alternative configurations are possible. The WDS partner can be configured using the
WDS ID or using its MAC address.

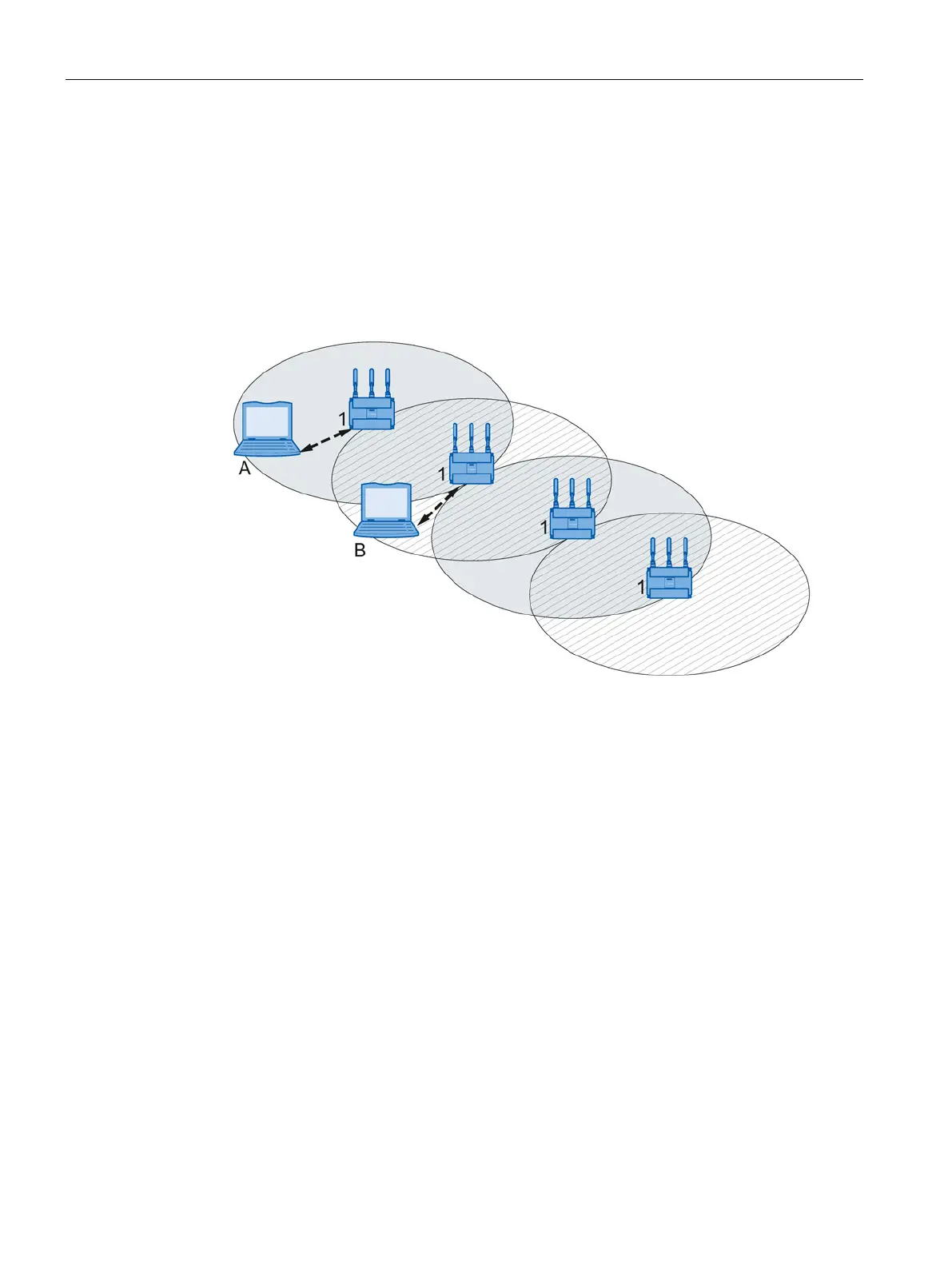

Figure 2-4 Implementation of WDS with four access points
