Technical basics
3.3 iPCF / iPCF-MC
SCALANCE W760/W720 to IEEE 802.11n Web Based Management
26 Configuration Manual, 11/2014, C79000-G8976-C350-03
①
Wireless cell of access point 1
②
Wireless cell of access point 2
③
Wireless cell of access point 3
④
Wireless cell of access point 4
⑤
Plant

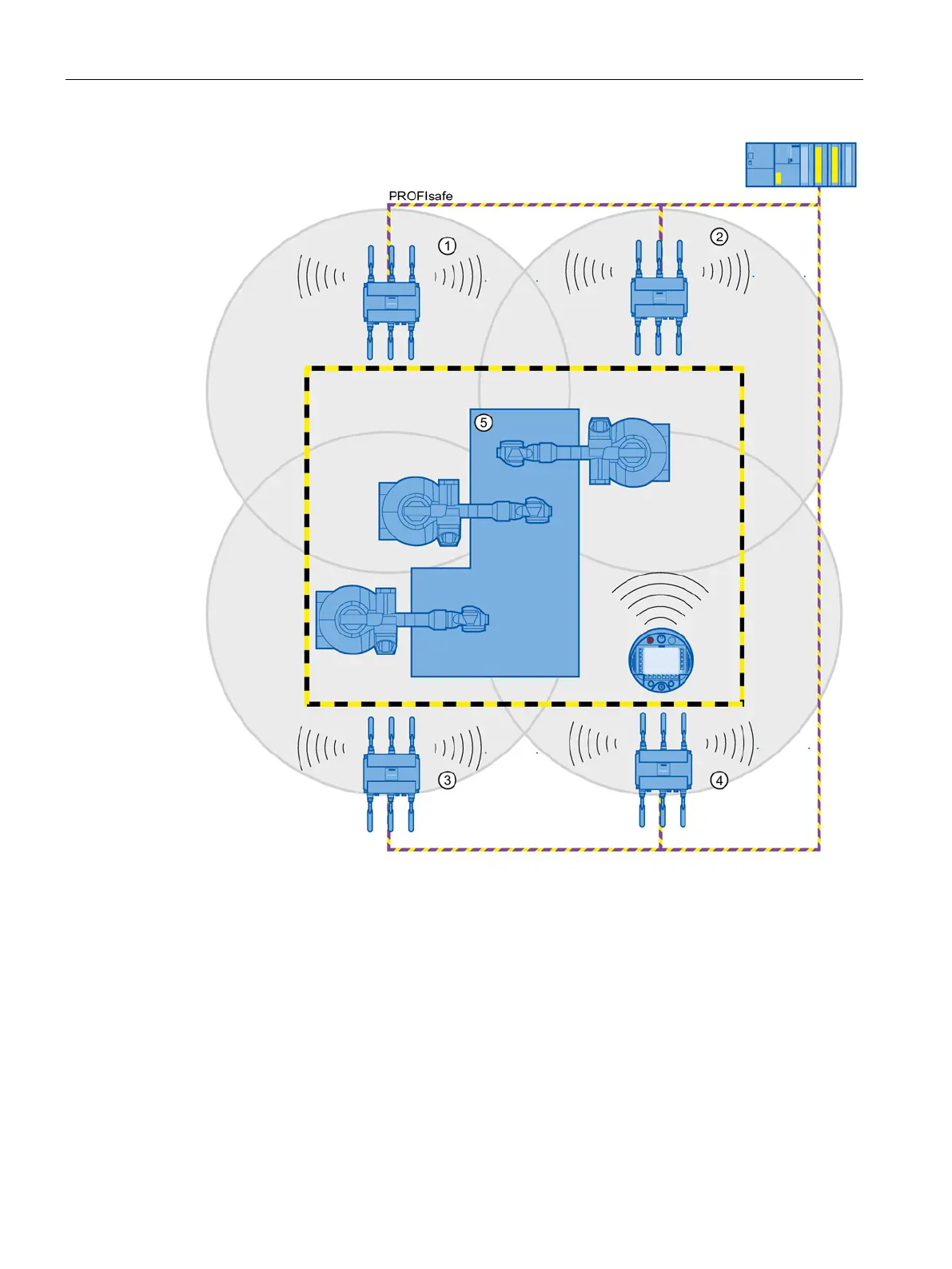

Figure 3-1 Configuration example of iPCF-MC
