Configuring with Web Based Management
5.3 "Wizard" menu
SCALANCE W760/W720 to IEEE 802.11n Web Based Management
54 Configuration Manual, 11/2014, C79000-G8976-C350-03

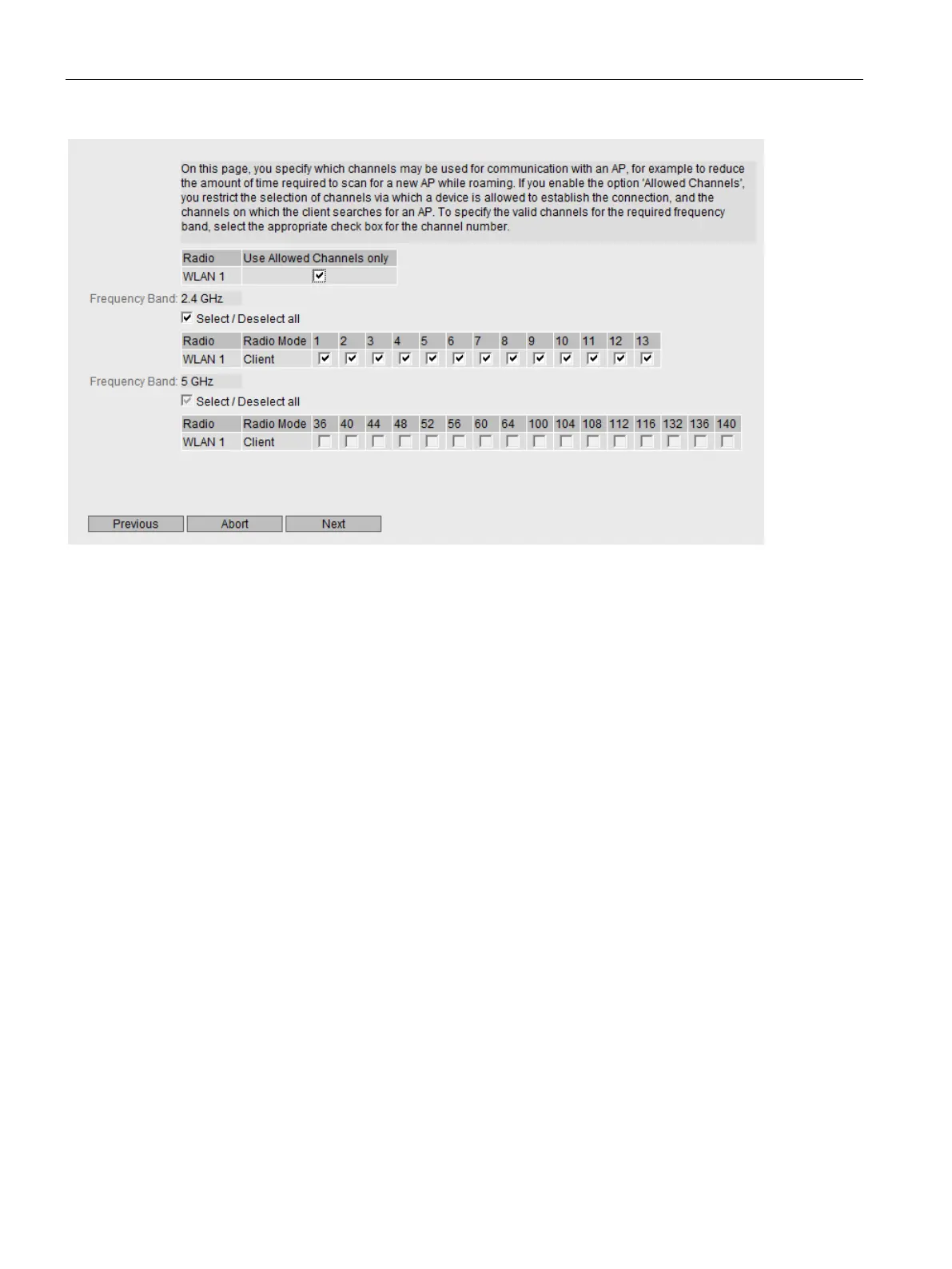

Table 1 contains the following columns:
●
Shows the available WLAN interfaces.
●
Use Allowed Channels only
If you enable the option, you restrict the selection of channels via which the client is
allowed to establish the connection.
In the following tables, you define the channels on which the client searches for an AP.
The tables are divided up according to frequency bands.
If the option is disabled, the channels available based on the settings (country code,
antennas, transmit power etc.) are used.
Above the tables for the frequency bands, you will find the following check box:
●
– Enabled
If you enable the check box, all channels are selected.
– Disabled
If you deselect the check box, only the first valid channel of the frequency band
remains enabled.
