Configuring with Web Based Management
6.4 "Information" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
Configuration Manual, 08/2018, C79000-G8976-C267-13
171

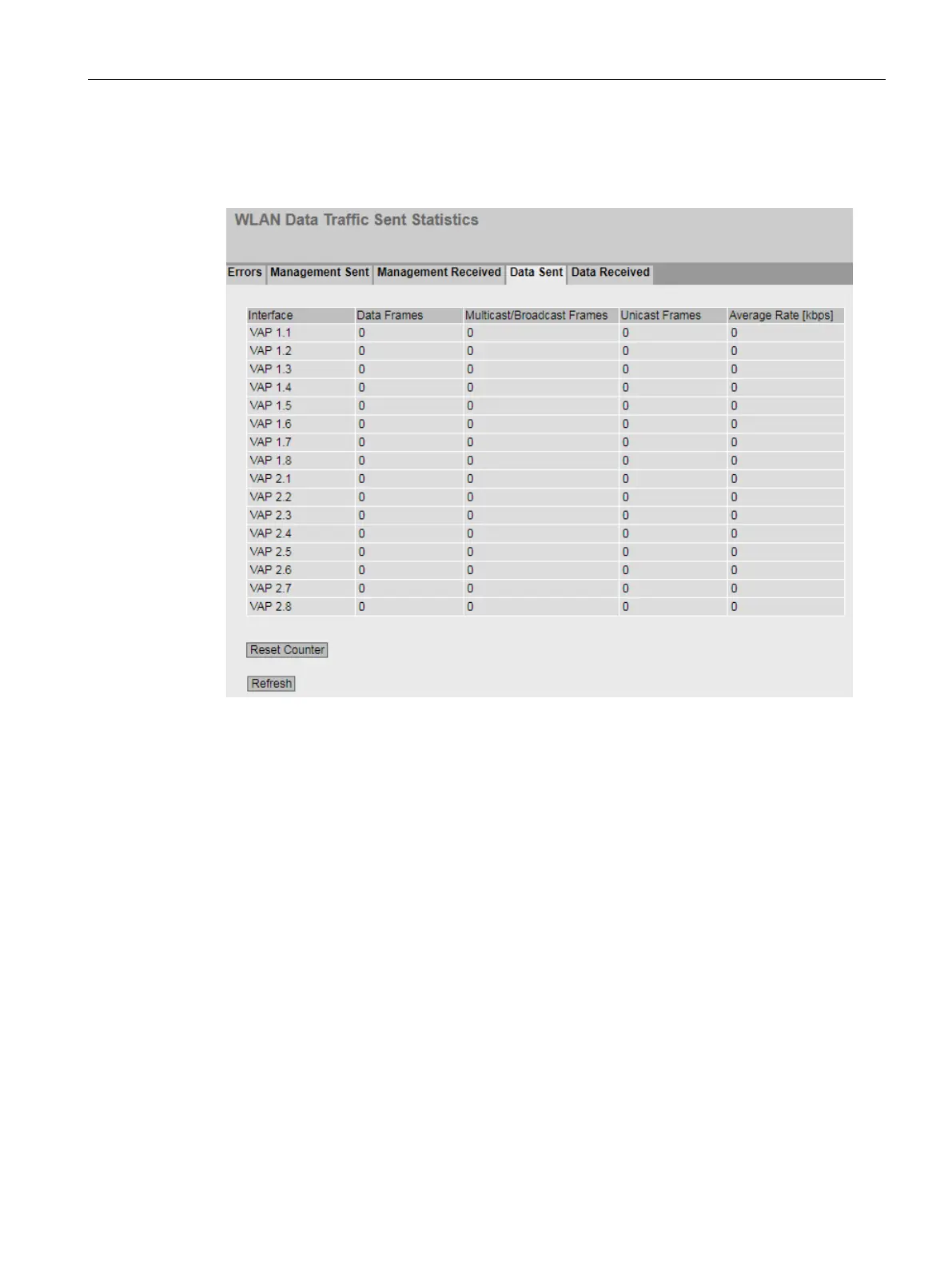

The WBM page shows how many frames were sent per VAP interface.
The table has the following columns:
●
Shows the VAP interface to which the entries apply.
●
The other columns after the VAP interface contain the absolute numbers of the sent
frames according to the frame types.
In the columns of the table, a distinction is made according to the following frame types:
– Data Frames
Shows the number of sent data frames.
