Configuring with Web Based Management
6.9 "Security" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
Configuration Manual, 08/2018, C79000-G8976-C267-13
383
Procedure
1. Enter at least one WEP key.
2. Click the "Set Values" button.
6.9.5
MAC ACL

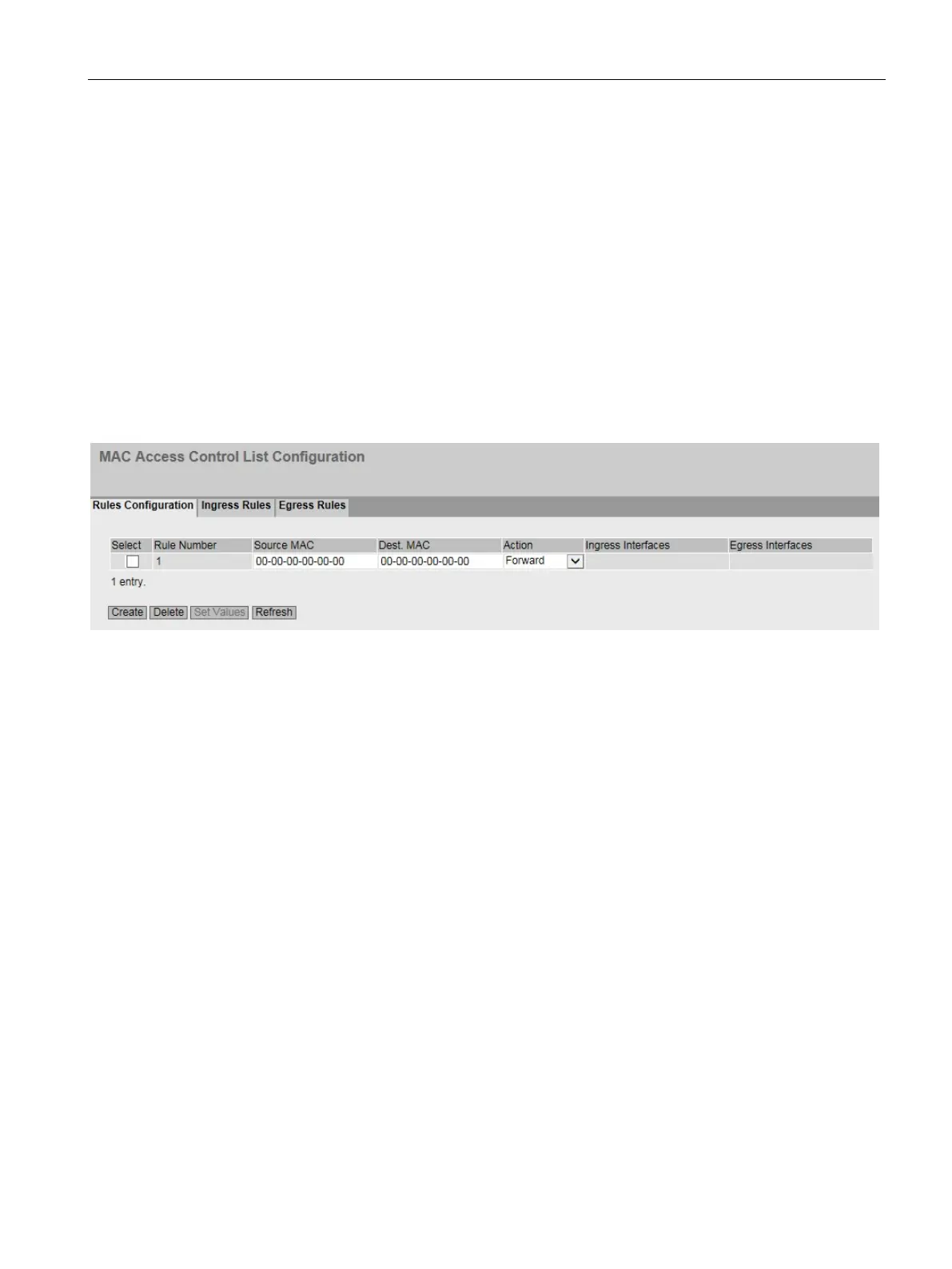

6.9.5.1
Rules Configuration
On this page, you specify the access rules for the MAC-based Access Control List. Using the
MAC-based ACL, you can specify whether frames of certain MAC addresses are forwarded
or discarded.
Description
The table has the following columns:
●
Select
Select the row you want to delete. If this entry is used, this is grayed out and you cannot
delete it.
●
Rule Number
Shows the number of the ACL rule. If you create a new entry, a new line with a unique
number is created.
●
Source MAC Address
Enter the MAC address of the source.
●
Dest. MAC Address
Enter the MAC address of the destination.
●
Action
Select whether the frame is forwarded or rejected when it corresponds to the ACL rule.
– Forward
If the frame complies with the ACL rule, the frame is forwarded.
– Discard
If the frame complies with the ACL rule, the frame is not forwarded.
